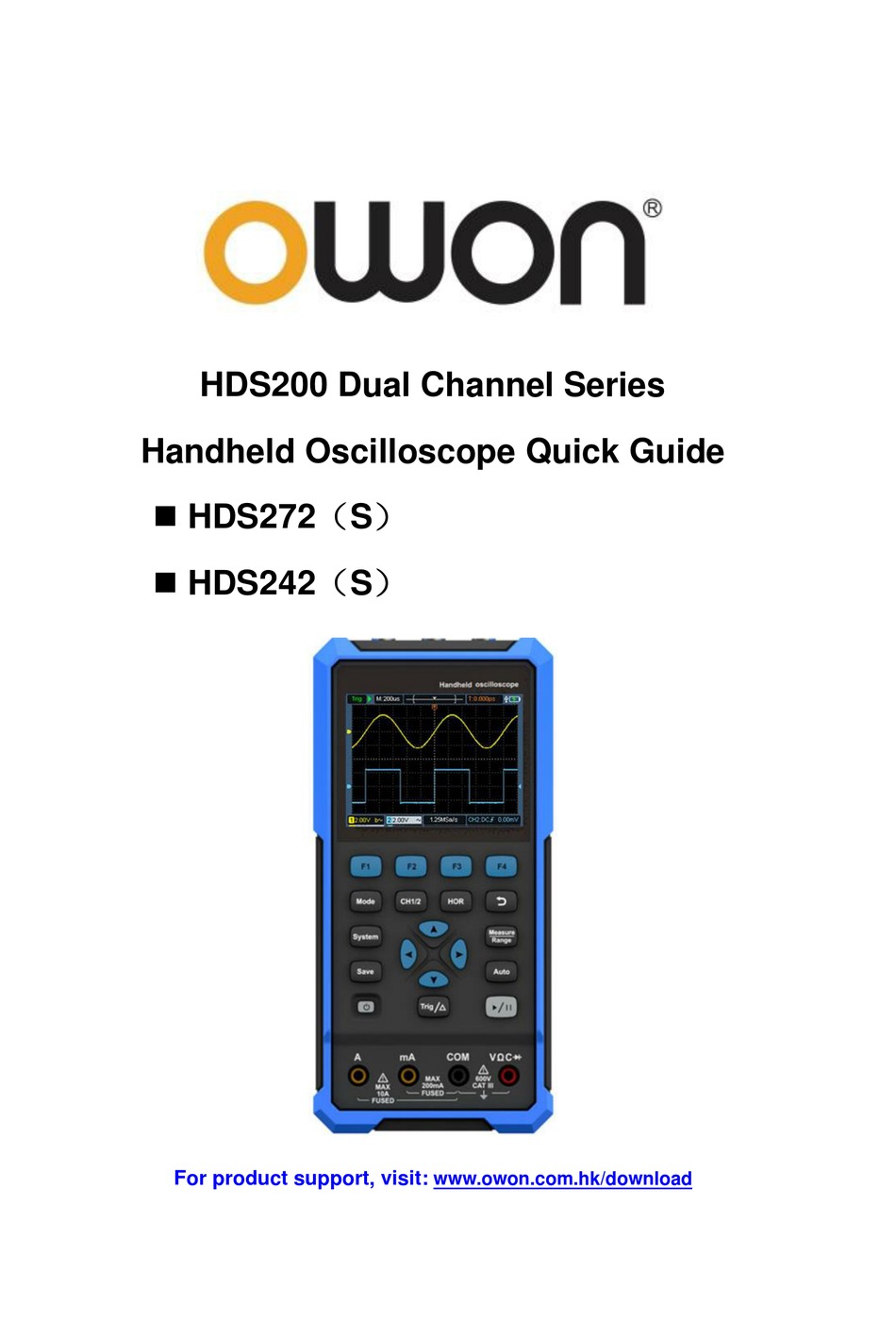

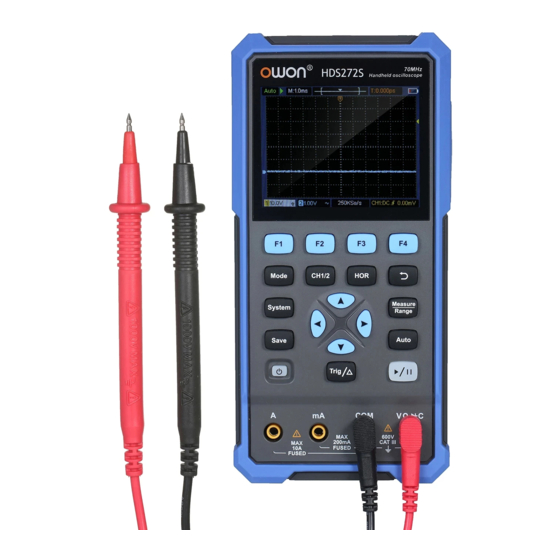

- Page 1 HDS200 Dual Channel Series Handheld Oscilloscope Quick Guide HDS272（S） HDS242（S） For product support, visit: www.owon.com.hk/download...
- Page 2 LILLIPUT Company. Fujian LILLIPUT Optoelectronics Technology Co., Ltd. No. 19, Heming Road Lantian Industrial Zone, Zhangzhou 363005 P.R. China Tel: +86-596-2130430 Fax: +86-596-2109272 Web: www.owon.com E-mail: info@owon.com.cn...
- Page 3 General Warranty We warrants that the product will be free from defects in materials and workmanship for a period of 3 years from the date of purchase of the product by the original purchaser from the our Company. The warranty period for accessories such as probes, adapter is 12 months.
-
Page 4: Table Of Contents
PRODUCT CERTIFICATE · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 SAFETY INFORMATION ·... -
Page 5: Product Certificate
1. Product Certificate HDS200 Series Handheld Oscilloscope Manufacturer: Fujian LILLIPUT Optoelectronic Technology Co., Ltd. Declaration of conformity: This product complies with the European Community regulations on electromagnetic compatibility 2004/108/EC and low voltage 2006/95/EC Product inspection: Standards adopted EN61010-1: 2001 (2nd edition) -
Page 6: Safety Information
2. Safety Information (Before using this product, please read the safety information in advance) Safety Terms Terms in this manual (The following terms may appear in this manual): Warning: Warning indicates conditions or practices that could result in injury or loss of life. Caution: Caution indicates the conditions or practices that could result in damage to this product or other property. - Page 7 Warning: To prevent electric shock or fire, use a suitable power adapter. Only power adapters that are dedicated to this product and approved for use in the country of use may be used. Warning: The two channels of the oscilloscope are non-isolated channels. Note that the channel should use a common reference when measuring, and the ground wires of the two probes cannot be connected to two non-isolated places with different DC electrical levels, otherwise it may cause a short circuit due to the...
- Page 8 powered computer through the port, it is not allowed to measure the primary power supply of power grid. Warning: If the input port of the oscilloscope is connected to a voltage with a peak value higher than 42V (30vrms) or a circuit with a peak value of more than 4800 VA, the following measures shall be taken to avoid electric shock or fire: ...
-
Page 9: How To Implement The General Inspection
refers to the level. Level II is the low voltage and high energy level, which refers to the local electrical level applicable to electrical appliances and portable equipment. Only a qualified person should perform internal maintenance. Check all Terminal Ratings. To avoid fire or shock hazard, check all ratings and markings on this product. -
Page 10: How To Use The Oscilloscope
instrument can not work normally, or fails in the performance test, please get in touch with our distributor responsible for this business or our local offices. If there is damage to the instrument caused by the transportation, please keep the package. With the transportation department or our distributor responsible for this business informed about it, a repairing or replacement of the instrument will be arranged by us. - Page 11 Description: 1. CH1 and CH2 input connectors. 2. Waveform generator output connector (optional). 3. Display area. 4. The F1 - F4 keys are multi-function keys. In each menu mode, press the corresponding key to select the corresponding menu item. 5. After pressing the HOR key, through the key , you can change the horizontal time base setting, and observe the change of the state information caused by it;...
-
Page 12: Side Panel
15. Enter the system settings key. 16. Switch key for working state of oscilloscope and multimeter. 17. CH1 / CH2 - channel switch key. Side Panel Description: 1. Probe compensation: 3.3V/1kHz square wave signal output 2. Charging or USB communication interface 3. -
Page 13: Introduction To The User Interface Of The Oscilloscope
Introduction to the User Interface of the Oscilloscope 1 2 3 Figure 5: Oscilloscope Interface Description: 1. The trigger status indicates the following information: Auto: Automatic mode. The waveform is being collected without triggering. Trig: A trigger has been detected and post trigger information is being collected. -
Page 14: Functional Check
10. Channel 2 waveform. 11. The icon indicates trigger-related information, including trigger channel, coupling mode, trigger type and trigger electrical level. For details, please refer to P19 Trigger System. 12. The current sampling rate. 13. The channel information reading indicates the voltage position of the corresponding channel. -
Page 15: Probe Compensation
the CH1 connector and insert it, then turn the probe to the right and tighten it. Connect the probe tip and ground clamp to the connector of the probe compensator. Please pay attention to the terminal polarity. The square terminal represents the signal output, and the round terminal represents the reference ground. -
Page 16: Probe Attenuation Coefficient Setting
2. Check the displayed waveform and adjust the probe until the compensation is correct. See Figure 0-2 and Figure 0-3. Overcompensation Correct compensation Under-compensation Figure 0-2: Display Waveform of Probe Compensation 3. Repeat the steps if necessary. Figure 0-3: Probe Adjustment Probe Attenuation Coefficient Setting The probe has a variety of attenuation coefficients, which will affect the vertical position factor of the oscilloscope. -
Page 17: Safe Use Of Probe
Note: The preset setting of the probe attenuation coefficient in the menu when the oscilloscope is delivered is 10X. Make sure that the attenuation switch setting value on the probe is the same as the probe attenuation coefficient option in the oscilloscope menu. -
Page 18: How To Use The Multimeter
Warning: To prevent electric shock when using the probe, please keep your fingers behind the safety ring on the probe body. To prevent electric shock when using the probe, do not touch the metal part of the probe head when the probe is connected to a voltage source. - Page 19 Description: 1. Measurement type indication: ------ DC voltage measurement ～ ACV ------ AC voltage measurement ------ DC current measurement ～ ACA ------ AC current measurement Resist ------ Resistance measurement Diode ------ Diode measurement Cont ------ On/Off measurement ------ Capacitance measurement 2.Range indication: Manual means manual range;...
-
Page 20: How To Use The Waveform Generator（Optional
6. How to Use the Waveform Generator（optional） The instrument can provide 4 basic waveforms, sine wave, square wave, ramp wave, pulse wave, and 8 arbitrary waveforms. Connect the output Press the Mode button to switch the instrument interface to the waveform generator function interface. -
Page 21: Troubleshooting
7. Troubleshooting 1. The oscilloscope cannot be turned on. It may be that the battery is completely exhausted. At this time, even if the oscilloscope is powered by the power adapter, the oscilloscope cannot be turned on. You need to charge the battery first, and do not turn on the oscilloscope. - Page 22 RUN/STOP. Check whether the trigger mode of the trigger mode menu is normal or single, and the trigger electrical level is out of the waveform range. If so, center the trigger electrical level or set the trigger mode to automatic. In addition, you can press Auto to automatically complete the above settings.
-
Page 23: Appendix
8. Appendix Appendix A: List of Accessories 1 USB cable 1 passive probes 1 crocodile clip cable (HDS242/HDS272) 2 crocodile clip cable (HDS242S/HDS272S) 1 set of multimeter probes (one red and one black) 1 user manual ... - Page 24 instrument or probe. Warning: Please make sure the instrument is dry before re-energizing to avoid electrical short circuit or personal injury caused by moisture. Charging and Replacement of Battery If you want to store the oscilloscope for a long time, it is recommended to fully charge the lithium battery before storing.
- Page 25 Note To avoid overheating of the battery during charging, the ambient temperature must not exceed the allowable value given in the technical specifications. Replacement of Lithium Battery Generally, the battery does not need to be replaced. However, when necessary, it can only be replaced by qualified personnel, and only lithium batteries of the same specification can be used.
