Power-Tronics XC4 Manual

Specifications
Input Voltage:
Frequency:
Voltage Regulation:
Parallel Operation:
Maximum Output Voltage:
Continuous Output Voltage:
Maximum Output Current:
Minimum Field Resistance:
Min Residual Build up Voltage:
Under Frequency Protection:
Physical Size:
Weight:
Fully Encapsulated:
Internal Fuse Type:
Remote Voltage Adjustment:
System Operating Indicator:
Optional Static Exciter Modules:
Optional External Controls:
120 / 208 or 240vac
50 or 60hz
± .75% From NL to FL
Yes
52vdc @ 120vac input
105vdc @ 240vac input
32vdc @ 120vac input
63vdc @ 240vac input
5adc
8Ω @ 32vdc output
16Ω @ 63vdc output
3.5vac
Yes, Idle speed reduction
4.1 x 2.1 x .75 in.
2.5 oz
Yes
GDB5A @ 250V Fast-Blow
No
No
No
No
XC4
Commercial Series
Voltage Regulator
Revision B
(From Serial # 625252)

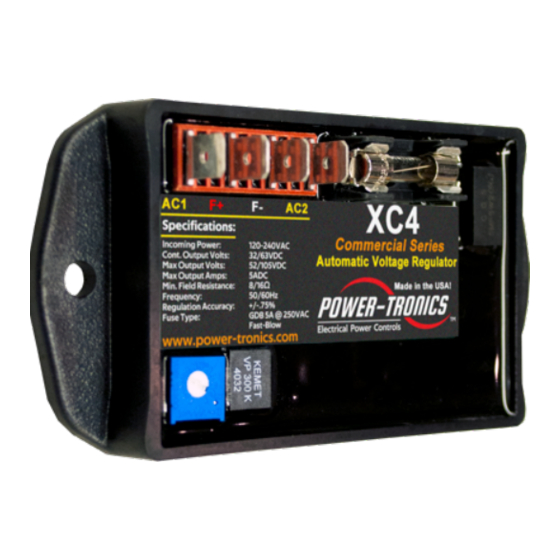

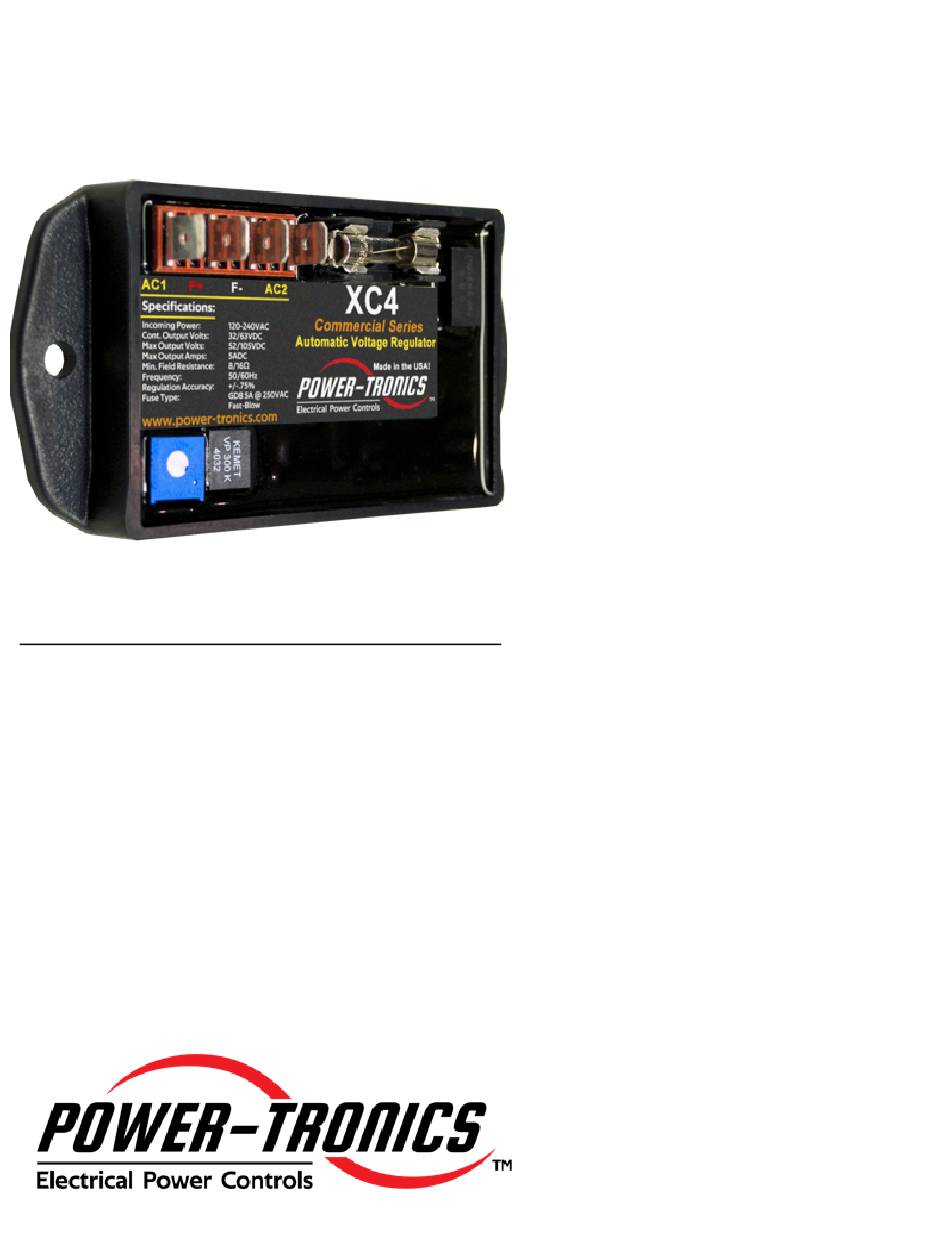

The Power-Tronics XC4 Automatic Voltage Regulator
is the latest upgrade for our commercial voltage
regulator product line! The XC4 is capable of replacing
other manufacturers' voltage regulators and can fit into
extremely tight enclosures due to its small size!
The XC4 is designed as a commercial product, ideal
for installation in standby applications, portable
generators, residential generators, and any application
where the customer demands a simple, reliable, and
durable regulator at a competitive price.
The Revision A XC4 offers greater value with an
onboard fuse to protect against overload or external
faults!
Simplicity and Reliability are important to the Power-
Tronics brand, and all components used in the
manufacture of our products are high-quality name-
brand and engineered to withstand the continuous
ratings advertised on our products. You can have
confidence with a product designed and manufactured
in the USA and backed by a factory One-Year
Warranty!
Based internally on the XR8 voltage regulator, the XC4
offers precise voltage regulation regardless of the
connected load and ambient temperature. It
incorporates an idle-protection circuit that automatically
reduces voltage to prevent excessive rotor heating
when the engine is idled.
The XC4 uses the XR8's patented electronic circuitry
that automatically matches the regulator's response
time to the generator exciter. This greatly speeds
installation and eliminates guesswork. Because it only
uses 4 wires for connection to the generator, it also
makes quick replacement in the field possible!
To ensure extreme durability and dependability, the
XC4 is fully encapsulated in a heat-resistant polyester
resin. Because of its strong design and fully
encapsulated packaging, the XC4 is able to withstand
extreme operating conditions that would damage most
other voltage regulators.
The XC4 is a direct upgrade for previous VP4, VP5,
VR50, and VR250 voltage regulators.
© 2020 Power-Tronics, Inc.
