Power-Tronics PC1500 series User Manual

Specifications
Input Voltage:
Frequency:
Control Range:
Output Voltage:
Maximum Continuous Output:
Minimum Field Resistance:
Physical Size:
Weight:
Phase control:
Repairable:
Internal Protection:
External Voltage Adjustment:
System Operating Indicator:
Optional External Controls
© 2014 Power-Tronics, Inc.

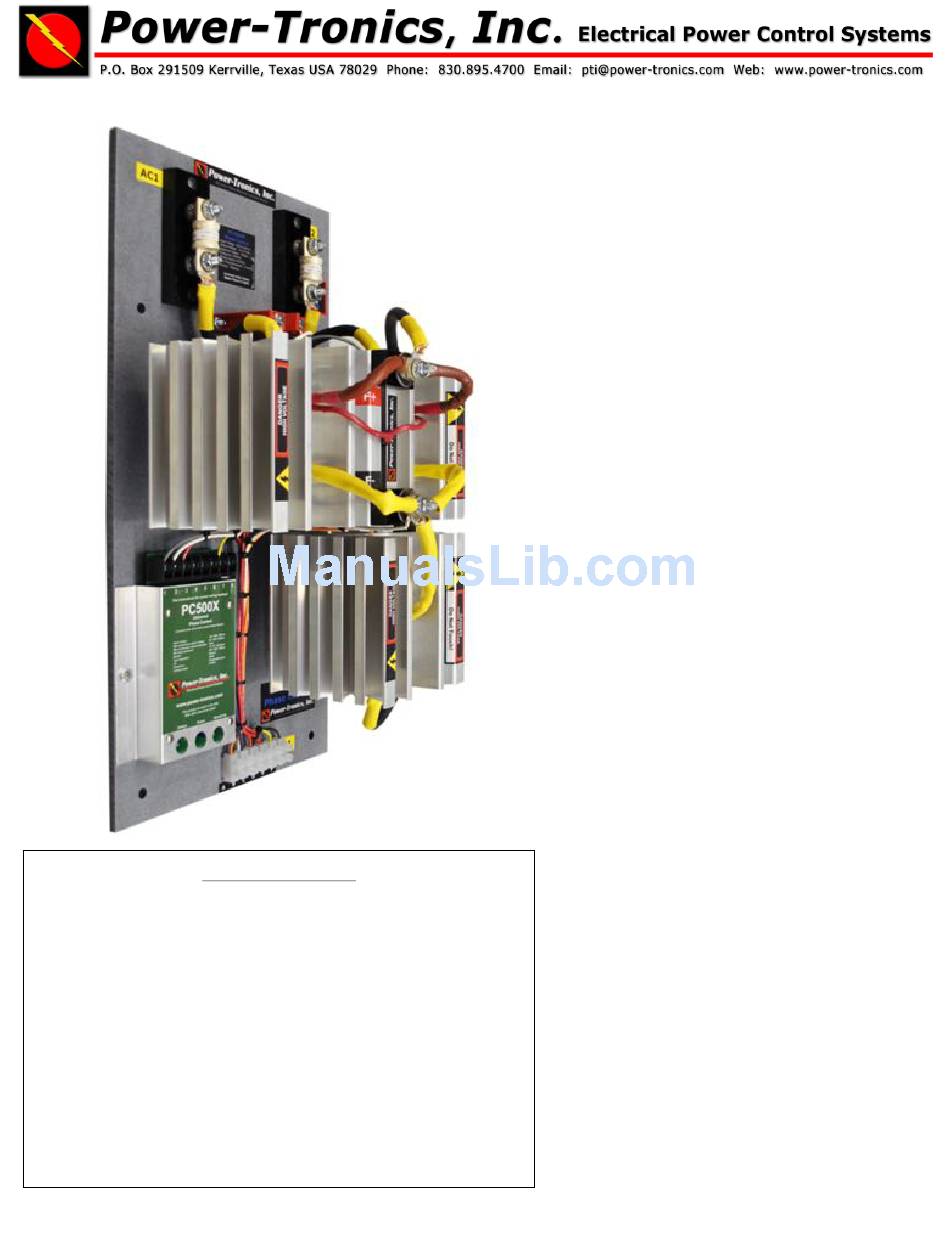

PC1500BF Shown
PC1500AF Similar
208 - 240vac
50 or 60 Hz
0-100%
0-210vdc @ 240vac input (PC1500BF)
0-105vdc @ 240vac input (PC1500AF)
100adc
2.1Ω @ 210vdc output (PC1500BF)
1.05Ω @ 105vdc output (PC1500AF)
10 x 20 x 8 in.
18 lb.
PC500X
Yes
Fuses, cartridge type
Yes
Yes
Yes
PC1500 Series
Phase control
The Power-Tronics PC1500 Series Phase
controls are a self-contained complete
Phase control. The PC1500 Series Phase
control is designed for continuous
operation at up to 105vdc for PC1500AF
models and 210vdc for PC1500BF models
at 100adc!
The PC1500 Series is uniquely designed
to sit in a compact footprint while being
passively convection cooled for a long
service life. Because of its unique
modular design, the PC1500 minimizes
downtime should a repair ever be
necessary! The PC1500 Series' compact
design allows a wide variety of installation
methods, including installations where
space is at a premium.
The PC1500 Series is a time-proven
design, utilizing high-reliability components
and a unique modular design to simplify
repair. The PC1500 Series is designed to
provide a lifetime of service and is
specifically built to minimize failures and
potential downtime!
The PC1500 Series is also capable of
operation with Power-Tronics' wide variety
of optional accessories, which allow them
to be remotely operated by dry contact
switching or by a PLC controller!
The PC1500 Series Phase control is the
latest upgrade to the PC1500A and
PC1500B series of phase controls and
replaces all previous Power-Tronics
PC1500A, PC1500AX, PC1500B, and
PC1500BX Phase controls!
