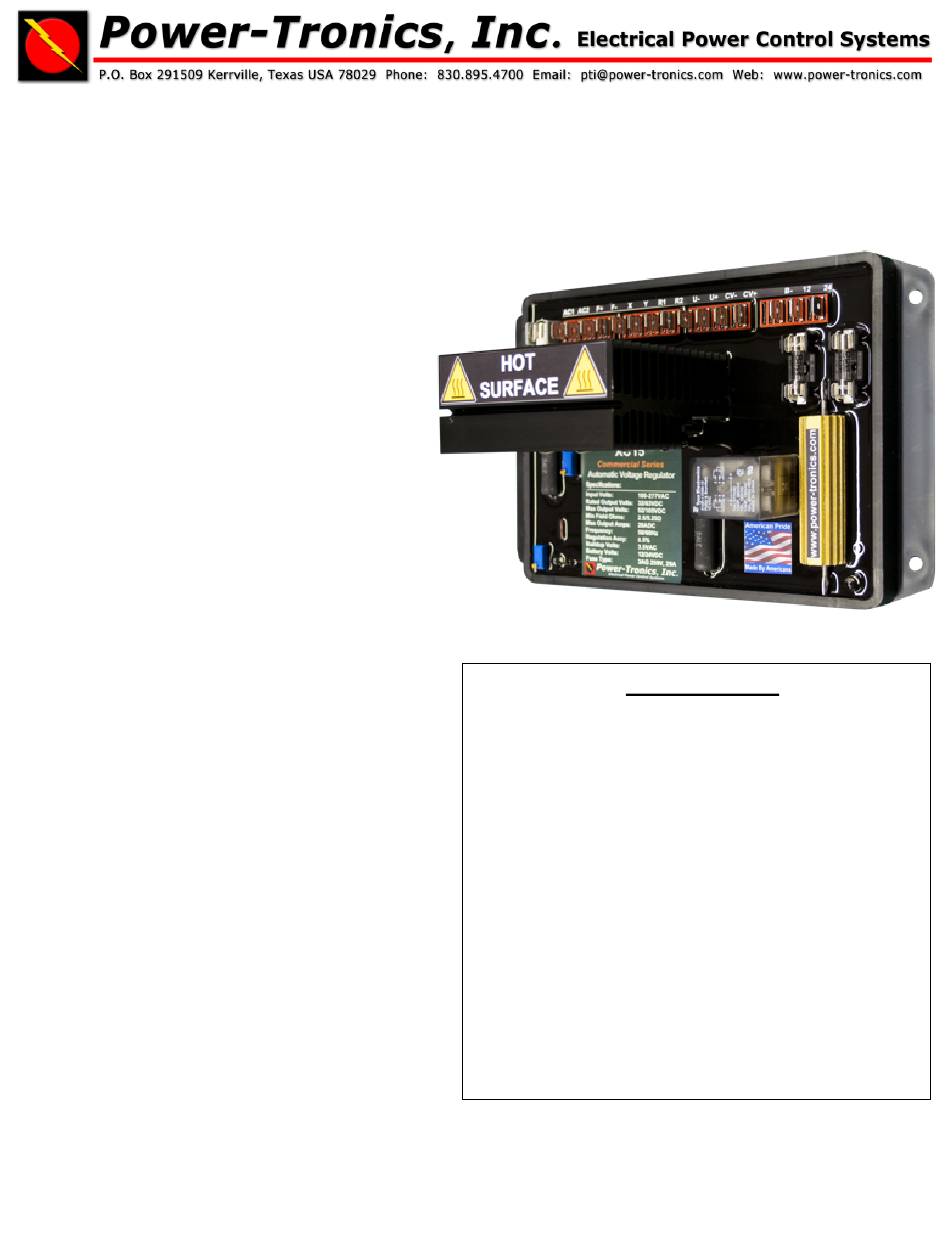

XC15
Commercial Series
Automatic Voltage Regulator
(From Serial # 624881)

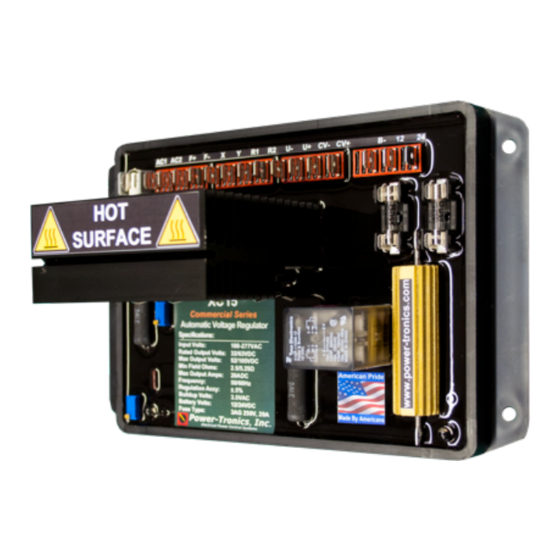

The Power-Tronics XC15 voltage regulator is a
self-contained, highly integrated, heavy-duty
voltage regulator designed for demanding
applications and extremely flexible installations.
Continuous output is rated at 32/63VDC @
12ADC with forcing output up to 52/105VDC @
20ADC!
The modern generator service technician is often
presented with a variety of generator applications,
all of which require different voltage regulators,
features, or buildup considerations. The XC15 is
explicitly designed with the service technician in
mind, packing an impressive collection of features
in a compact and reliable package with simple
installation and setup instructions!
Standard integrated features of the XC15 include
onboard fusing, heavy duty rectifier section,
integrated 0-10V at 4-20mA control interface, built
in paralleling provisions, built in automatic battery
flashing circuitry, and a durable voltage regulator.
Over 30 years of design refinement makes the
XC15 a durable design, utilizing high-reliability
components and a simple layout. Our products
are designed to provide a lifetime of service and
is specifically built to minimize failures and
potential downtime!
The XC15 are capable of parallel operation with
other generators or with a utility buss. The
integrated 0-10VDC or 4-20mA interface allows a
wide variety of VAR, PF, or other PLC controls to
remotely control the unit for extreme accuracy
and unattended installations.
A heavy duty rectifier section, oversized heatsink
and flexible hookup design makes the XC15 an
ideal aftermarket replacement AVR for
applications such as Generac, Shindaiwa, Taiyo,
Military Conversion generators and many others!
© 2020 Power-Tronics, Inc.
Specifications
Input/Sensing Voltage:
Frequency:
Voltage Regulation:
Parallel Operation
Continuous Rated Output Voltage:
Maximum Forcing Output Voltage
Rated Continuous Output Amps:
Minimum Field Resistance:
Min Residual Build up Voltage:
Internal Auto Battery Flash:
Under Frequency Protection:
Physical Size:
Weight:
Internal Protection:
Fuse Type:
External Voltage Adjustment:
System Operating Indicator:
Integrated 0-10VDC / 4-20mA Interface:
100 - 277vac
50 or 60 Hz
± .5% From NL to FL
Yes
32vdc @ 120vac input
63vdc @ 240vac input
52vdc @ 120vac input
105vdc @ 240vac input
12adc
2.5Ω @ 120vac input
5Ω @ 240vac input
3.5vac
12/24vdc
Yes, VPH reduction
7.25 x 4.75 x 3.5 in.
1.5 lb.
Fuses, cartridge type
Main: 3AG 20A @ 250V
Flash: GDB 5A @ 250V
Yes
Yes
Yes
