Specifications
Input Voltage:
Frequency:
Voltage Regulation:
Parallel Operation
Output Voltage:
Maximum Continuous Output:
Minimum Field Resistance:
Min Residual Build up Voltage:
Under Frequency Protection:
Physical Size:
Weight:
Repairable:
Internal Protection:
External Voltage Adjustment:
System Operating Indicator:
Optional Static Exciter Modules
Optional External Controls
120 / 208 or 240vac
400hz
+/- 1% From NL to FL
Yes
0-52vdc @ 120vac input
0-105vdc @ 240vac input
0-210vdc @ 240vac input
5adc
10.5Ω @ 52vdc output
21Ω @ 105vdc output
42Ω @ 210vdc output
3.5vac
No
4.75 x 6 x 1 in.
7 oz
Yes
Fuses, cartridge type
Yes
Yes
Yes
Yes

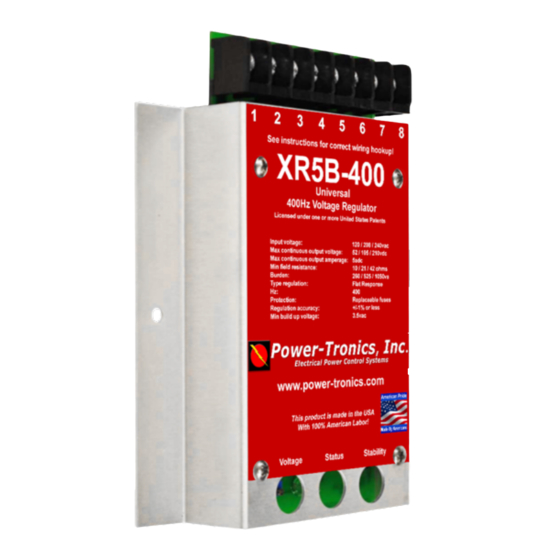

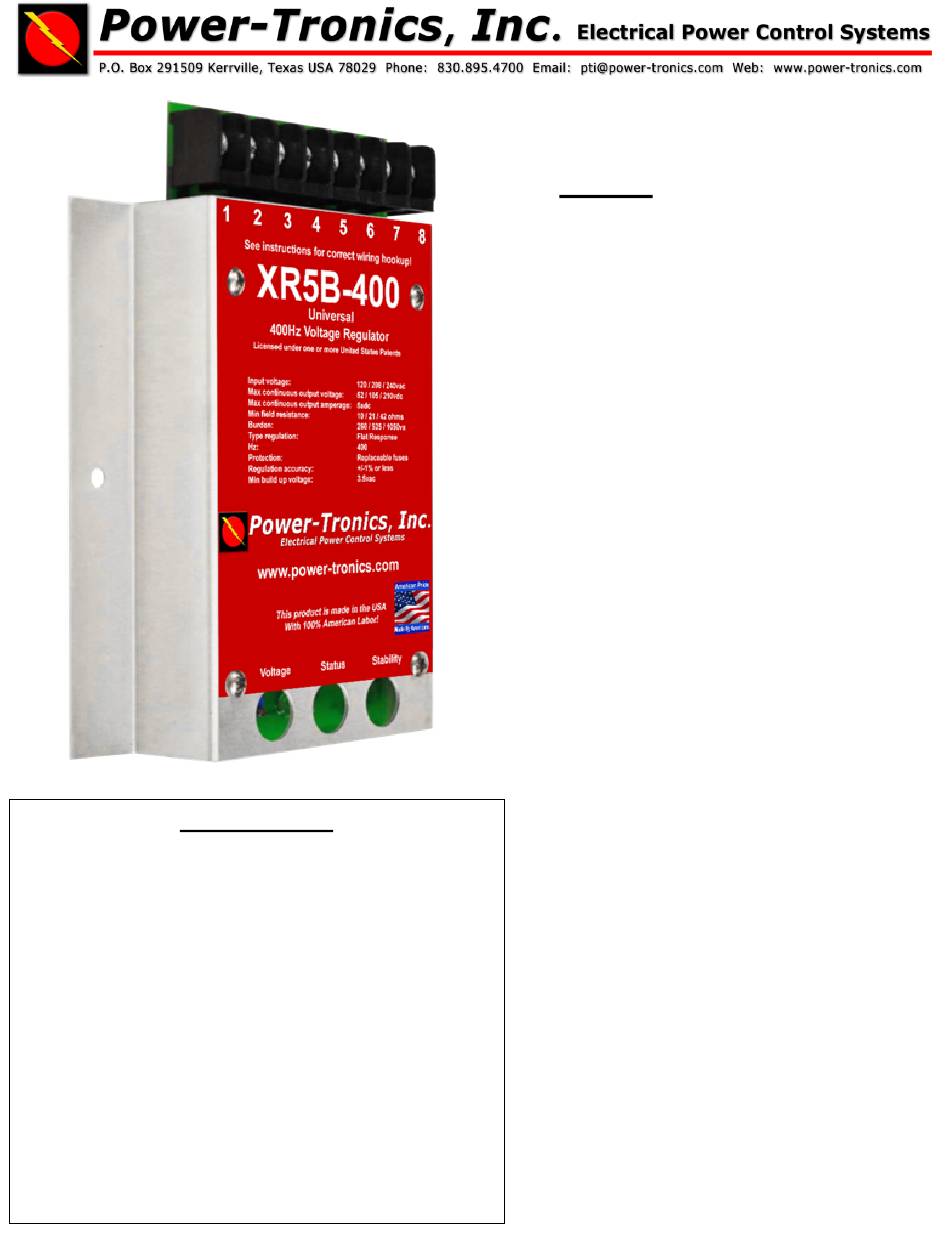

XR5B-400
400Hz Specialty Series
Universal Voltage Regulator
The Power-Tronics XR5B-400 Universal Voltage
Regulator is the latest upgrade for all UVR and
XR series specialty voltage regulators. The
XR5B-400 is also capable of replacing other
manufacturers' voltage regulators and has
optional Static Exciter Modules to boost its
capacity to 30 amps DC!
The XR5B-400 is a unique, Universal voltage
regulator that is designed specifically for
Professional Electrical Generator Service
Technicians and the Electrical Generator Repair
Industry. The XR5B-400 is a ruggedized design
and is engineered to provide a lifetime of
trouble-free operation.
The XR5B-400 contains patented electronic
circuitry that allows the installer to match the
regulator's response time to the generator
exciter. This unique innovation eliminates the
need to stock multiple models of regulators and
greatly simplifies installation.
PLC and automated Genset control is possible
with the XR5B-400 by simply adding an optional,
inexpensive digital interface module. This
capability makes the XR5B-400 suitable for
automated or unattended installations, or large-
scale parallel operations.
Like our previous models, the XR5B-400 is fully
repairable! All major electronic components are
not encapsulated to facilitate repair while all
sensitive components are encapsulated to
protect them from contamination and moisture.
The XR5B-400 is compatible with all previous
and current optional modules available for use
with Power-Tronics voltage regulators making it
extremely simple to upgrade an older voltage
regulator installation with the modern features
offered by the XR5B-400.
© 2018 Power-Tronics, Inc.
Advertisement
Table of Contents
Related Manuals for Power-Tronics XR5B-400
Summary of Contents for Power-Tronics XR5B-400
- Page 1 This unique innovation eliminates the need to stock multiple models of regulators and greatly simplifies installation. PLC and automated Genset control is possible with the XR5B-400 by simply adding an optional, inexpensive digital interface module. This capability makes the XR5B-400 suitable for Specifications automated or unattended installations, or large- scale parallel operations.
-
Page 2: Table Of Contents
Hookup Connection B:....................10 Parallel Configuration for Connection B:..............11 Hookup Connection C:....................12 Parallel Configuration for Connection C:..............13 Initial Setup and Commissioning:................14 Optional Power-Tronics Add-On Modules:..............15 Conversion From Shunt-Wound to Solid-State Regulation:........16 Internal Fuse Replacement:..................17 Application Troubleshooting:..................18 Bench Check Procedures:...................19 Installation Warranty Form:..................20 Product Warranty Certificate:..................21... -
Page 3: Introduction And Functional Description
(It can give a false reading!) Functional Description The XR5B-400 Universal Voltage Regulator is the result of over 20 years of engineering efforts and offers high- demand features at a competitive price point. The XR5B-400 is a proven design and is engineered to greatly simplify setup while offering extreme reliability. -
Page 4: Determining Which Hookup Configuration To Use
Exciter Module, DO NOT use these instructions for hookup! See the instructions that came with your module instead! The XR5B-400 Universal Voltage Regulator is configurable for 3 different output ranges suitable for use on the vast majority of generators available on the market from past and present. It is necessary to choose the proper mode of operation for your generator in order to get the best regulation and fastest response time possible. - Page 5 R is your measured field resistance. Using the values you just measured and calculated, see the chart on the previous page to determine which connection you should use to connect the XR5B-400 to your generator. For Example: Measured Field Resistance: 18Ω...
-
Page 6: Common 12-Lead Generator Wiring Diagrams
Voltage L1/L2-N: 120V Preferred Single-Phase Connection. Voltage L3 – N: 208V Don’t Use Zig-Zag if Possible. NOTE: L3-N is a “High Leg” NOTE: Derate generator by 1/3 rated 208V instead of 120V! capacity when using this connection! © 2018 Power-Tronics, Inc. -
Page 7: Use With Pmg's, Dpe, Aux, And Harmonic Winding Generators
PMG input. To connect the XR5B-400 to this type of generator, isolate and insulate the PMG leads that were connected to the original voltage regulator. Measure your field resistance and proceed with sizing on Page 4. -
Page 8: Hookup Connection A
T7 and T9 (See Page 6) or use a 480-240V step-down transformer rated at 1.5KVA. Connecting the input of the XR5B-400 to 2 different legs of the generator as shown in the diagram below will result in greater regulation accuracy than when connecting line- neutral. -
Page 9: Parallel Configuration For Connection A
Parallel Configuration for Connection A To use the XR5B-400 Universal Voltage Regulator in a parallel configuration either with another generator or with a buss such as a utility, use the diagram below for proper hookup with the XR5B-400 configured for Connection A. -
Page 10: Hookup Connection B
T7 and T9 (See Page 6) or use a 480-240V step-down transformer rated at 1KVA. Connecting the input of the XR5B-400 to 2 different legs of the generator as shown in the diagram below will result in greater regulation accuracy than when connecting line- neutral. -
Page 11: Parallel Configuration For Connection B
Parallel Configuration for Connection B To use the XR5B-400 Universal Voltage Regulator in a parallel configuration either with another generator or with a buss such as a utility, use the diagram below for proper hookup with the XR5B-400 configured for Connection B. -
Page 12: Hookup Connection C
T7 to T0 (See Page 6) or use a 480-120V step- down transformer rated at 500VA (Preferred for superior regulation accuracy). Connecting the input of the XR5B-400 to 2 different legs of the generator through a transformer will result in greater regulation accuracy than when connecting line-neutral as shown in the diagram below. -
Page 13: Parallel Configuration For Connection C
Parallel Configuration for Connection C To use the XR5B-400 Universal Voltage Regulator in a parallel configuration either with another generator or with a buss such as a utility, use the diagram below for proper hookup with the XR5B-400 configured for Connection C. -
Page 14: Initial Setup And Commissioning
Initial Setup and Commissioning Install the regulator according to the correct wiring diagram (Connection A, B, or C). If installing the XR5B-400 on a brush-type generator, verify that the brushes and brush riggings are isolated, ungrounded, and connected ONLY to the XR5B-400. -
Page 15: Optional Power-Tronics Add-On Modules
Optional Power-Tronics Add-On Modules Power-Tronics offers a wide array of optional add-on modules for the XR series voltage regulators from static exciter modules to digital interface cards. For more information on any of the modules below, visit our online catalog at: www.power-tronics.com... -
Page 16: Conversion From Shunt-Wound To Solid-State Regulation
Conversion From Older Shunt-Wound Voltage Regulation to Modern Solid-State Voltage Regulation It is possible to use the XR5B-400 Universal Voltage regulator with older Shunt-Wound exciters that originally had manual or mechanical voltage regulators by converting the wiring as in the diagrams below. If the generator will not build up after conversion, try switching your F+ and F- leads at the regulator and try starting up again. -
Page 17: Internal Fuse Replacement
Fuse Replacement The XR5B-400 contains two 20mm cartridge fuses located for quick and convenient replacement should they blow. To replace the fuses, follow the instructions below. Fuse size is 20mm x 5mm rated at 5A at 250VAC. Power-Tronics Part Number: 5R3-403 (Comes as a package of 10 fuses) -
Page 18: Application Troubleshooting
16. Isolation transformer is too small. 17. Isolation transformer is needed. 18. Exciter fields are not isolated from other circuits. 19. Input and field circuit are being fed by a common cable or conduit. 20. Incorrect hookup or wiring. © 2018 Power-Tronics, Inc. -
Page 19: Bench Check Procedures
If you were able to successfully perform all of these tests, the regulator is good. IF ANY SINGLE STEP FAILED, THE REGULATOR IS DEFECTIVE! 120V 50-150W 120V 50-150W Incandescent Incandescent 120VAC 120VAC Fused Fused @ 5A @ 5A Figure A Figure B © 2018 Power-Tronics, Inc. -
Page 20: Installation Warranty Form
This form also contains the information needed by Power-Tronics, Inc., for repair and troubleshooting of any product you may be having problems with. Failure to fill out this form during installation will result in a cancellation of your warranty... -
Page 21: Product Warranty Certificate
These problems should be protected with external devices provided by the customer such as fuses, surge suppressors, over/under voltage and frequency controls. Power-Tronics, Inc., warranties only parts and workmanship of this product for a period of 3 years from the original date of purchase from Power-Tronics, Inc. Under warranty, Power- Tronics, Inc.
