(5.0=50/10).

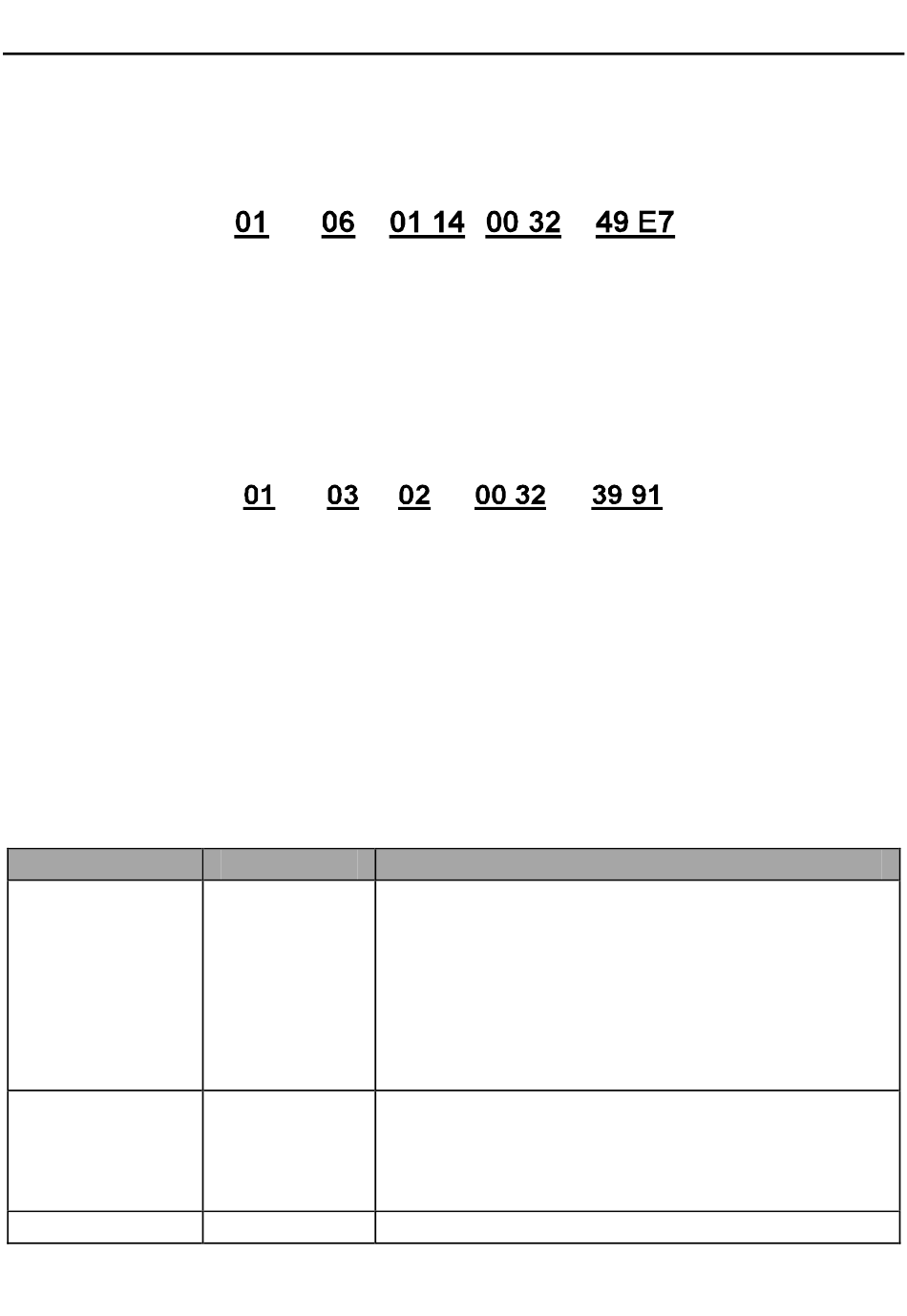

To set "Delay for recovery from hibernation" to 5.0s through Modbus communication, you need
first to multiply 5.0 by 10 according to the scale to obtain an integer 50, that is, 32H in the
hexadecimal form, and then send the following write command:
After receiving the command, the VFD converts 50 into 5.0 based on the fieldbus scale, and
then sets "Delay for recovery from hibernation" to 5.0s.
For another example, after the upper computer sends the " Delay for recovery from
hibernation" parameter read command, the master receives the following response from the
VFD:
The parameter data is 0032H, that is, 50, so 5.0 is obtained based on the fieldbus scale
(50/10=5.0). In this case, the master identifies that the "Delay for recovery from hibernation" is
5.0s.

7.4.4 Error messages

Operation errors may occur during communication-based control. For example, some
parameters are read only, but a write command is sent. In this case, the VFD returns an error
message. Error messages are sent from the VFD to the master. The following table lists the
error messages.
Error code
01H
02H
03H
VFD Parameters
Read
address
command
VFD Read
2-byte
address command
Name
The command code received by the upper
computer is not allowed to be executed. The
possible causes are as follows:
Invalid
•
command
•
For the VFD, the data address in the request of the
Invalid data upper computer is not allowed. In particular, the
address combination of the register address and to-be-sent
bytes is invalid.
Invalid data The received data domain contains a value that is
Data number
address
Parameters
data
data
The function code is applicable only on new
devices and is not implemented on this device.
The slave is in faulty state when processing this
request.
-132-
Communication
CRC check
CRC check
Description
