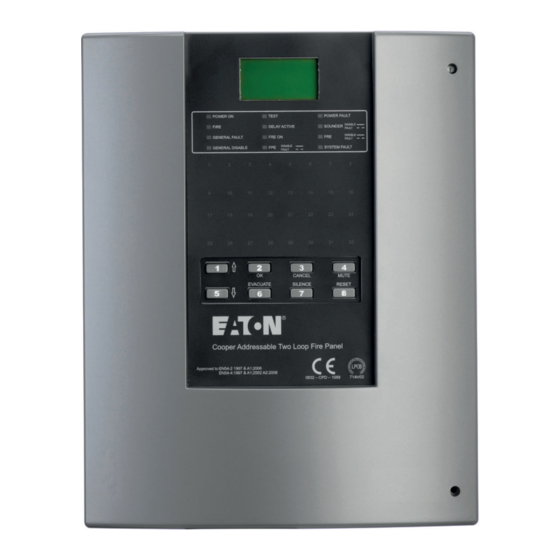

Addressable Two Loop Fire Panel
Installation and Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CF2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton CF2000

Summary of Contents for Eaton CF2000

  • Page 1 Addressable Two Loop Fire Panel Installation and Operation Manual...

  • Page 2: Table Of Contents

    Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...
  • Page 3 Operations (Silence Alarms) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...
  • Page 4 Internal Wall Sounder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87 InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 5: Introduction To The Manual

    December 2019 Introduction to the Manual This manual provides information on the installation, operation and maintenance of the Eaton Fire Systems CF2000 Control Panel . notice The operating system of the panel may be revised as a result of enhancements to the system software or hardware .

  • Page 6: System Installation And Design

    Each of the CF2000 system components has been specifically designed to operate as part of a CF2000 system, this provides an assurance that the panel, the sensor, the interfaces and the ancillaries are all fully compatible with each other and that the full range of system functionality is supported by each device .

  • Page 7: Project Planning

    1. Project Meeting Installer and user to be present; system specifications, schematic diagram and proposed circuit drawing to be available . CF2000 Installation & Commissioning Guide to be provided . 2. Equipment Fix Typically 2 week's notice is required for equipment to be delivered . Cable to be installed and bases/back boxes to be fitted .

  • Page 8: System Design Guidelines

    BS 5839-6 require the Control and Indication Equipment (CIE) to conform to BS EN 54-2 . The CF2000 fire control panel has been certified to BS EN 54-2 . Therefore, the panel is suitable to be installed in applications which have been designed in accordance with the relevant BS 5839 codes of practise .

  • Page 9: Compatible Equipment

    812050FULL-0269X White Flash, Shallow Base) Addressable Wall VAD CAB492WD 812034FULL-0210X (Red Plastic, White Flash, Deep Base) Addressable Wall VAD (Red Plastic, CAB492WS 812033FULL-0209X White Flash, Shallow Base) Addressable Sounder Base CAS380 CAS380 InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...
  • Page 10 Addressable Micro Zone Monitor Unit 18.5 CIU872 CIU872 Addressable 230V Relay I/O Unit CMIO353 CMIO353 Addressable 4-Way Sounder Controller CSC354CPR CSC354CPR Addressable Spur Isolator Unit CSI350 CSI350 Addressable Zone Monitor Unit CZMU352 CZMU352 InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...
  • Page 11 Conventional Alarms and Beacons Conventional Remote Indicator CIR301 CIR301 Conventional Remote Indicator CIR301WP CIR301WP (Weatherpoof) Installation Accessories Safety Power Supply (24V/1.5A) SPS-2423 SPS-2423 Safety Power Supply (24V/2.5A) SPS-2433 SPS-2433 Safety Power Supply (24V/4.5A) SPS-2453 SPS-2453 InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...
  • Page 12 Compatible Equipment The range of compatible detectors for the CF2000 system consists of the following: Model optical sensor Heat sensor opto-Heat sensor Operating voltage 18 to 30V dc Standby current (max) 220μA Alarm current (max) Ambient Temperature (max) 50ºC 60ºC 65ºC...
  • Page 13 The status LED can be programmed to either be permanently off under normal conditions or to pulse in order to confirm that it is in communication with the CF2000 control panel . Heat Sensor Heat sensors are suitable for dusty environments or environments where smoke is likely to be present under normal operating conditions .
  • Page 14 . All of these devices are fully programmable via the sophisticated CF2000 multi stage cause and effect programming facilities .
  • Page 15 . Base Sounder Beacon The base sounder beacon has been designed with the same fixing as the sounder base so it can accommodate either a detector or front cover being fitted . InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...
  • Page 16 . The base sounder VAD has been designed with the same fixing as the base sounder so it can accommodate either a detector or front cover being fitted . CASBB394 with Sensor tted CASB393 CASB393WP InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...
  • Page 17 . However it can also be used to monitor non fire inputs such as an external keyswitch . It is supplied in a surface mounting IP65 box . InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...
  • Page 18 This interface is designed to enable a zone of compatible conventional detectors and callpoints to be connected into the addressable loop, it is compatible with up to 20 Eaton conventional detectors connected via the EFXN520 range of detector bases and compatible detectors . Please refer...
  • Page 19 24 hours of standby operation followed by a minimum of 30 minutes of full alarm ringing . A standby of 72 hours can be achieved at the expense of reduced load capability . InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...
  • Page 20 It is suitable for interfacing a zone of up to 20 conventional detectors connected via the EFXN520 range of detector bases and compatible detectors, onto an Eaton analogue fire panel . It will operate with any Eaton conventional detector in configuration with a schottky diode type base .
  • Page 21 Equipment Compatibility Sensors Loop wired sensors must be of the Eaton Addressable 800 Protocol series soft addressed analogue type . Eaton conventional detectors can be connected via a zone monitor . The connection of other detector types via an zone monitor interface is not recommended .

  • Page 22: System Overview

    For initial configuration or major system changes special PC configuration software is available enabling Eaton personnel to do this . Exiting configurations can be uploaded to the PC so that changes can be made to the existing system rather than having to revert to initial files .

  • Page 23: Integral Power Supply And Battery

    *I min 26V RAW = 50mA *I min = 80mA * I max a, I max b & I min = Current as specified in BS EN54-4 Published 2006 (Amendments 1 & 2) InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...
  • Page 24 Max LED Indicated WArnInG rIsK oF eXPLosIon IF BATTerY Is rePLACed BY An InCorreCT TYPe . dIsPose oF used BATTerIes ACCordInG To THe InsTruCTIons GIVen on PAGe 97 BATTerY dIsPosAL InsTruCTIons . InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...
  • Page 25 The auxiliary relays provide fused volt free change over contacts. These contacts are not monitored. Max Load 24V, 1A Fuse (PTC5) 1.1A polyswitch Max Cable Length Min Recommended cable size (csa) 2.5mm InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 26: Optional Functions As Per En54 Parts 2 & 4

    (e .g . Switch, Time clock) the alarm will sound (panel sounders + loop sounders only) . The Panel will not indicate a Fire . The alarm will cancel when the short circuit is removed . InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 27: Panel Outputs

    Fire alarm routing equipment (e .g . Fire Brigade) . It operates by providing a 24V DC output to an auxiliary device (e .g . relay) . InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 28: Output To Fire Alarm Protecting Equipment

    The has the facility for a specific call point to override this delay by programming this call point via an input interface to provide an evacuate signal using the Site Installer software . InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 29: Dependencies On More Than One Alarm Signal

    . Please ensure that all equipment connected to this output will only draw current when a fire condition exists . WArnInG do noT eXCeed THe rATed ouTPuT CurrenT InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 30: Installation

    . Temperatures in excess of 40°C and below 5°C may cause problems, if in doubt consult Eaton Fire Systems . The panel should be located away from any potential hazard, in a position where it is readily accessible to authorised staff, and the fire services, ideally on the perimeter of a building near a permanent entrance .

  • Page 31: Installation Guide

    . It is of vital importance that accurate details are kept of the exact wiring route in • order to determine which address has been allocated to each device . InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 32: Fixing Details

    2. For Flush Mount the backbox requires a hole 310mm x 355mm with a depth of 117mm. Figure 2 . Back Box dimensions Installing Cabling Once the backbox is mounted the next stage is to install the power and loop cables and fit the glands . InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 33: System Wiring

    Installation System Wiring A typical system wiring arrangement . Figure 3 . Typical system Wiring diagram InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 34: Commissioning The Panel

    Commissioning the panel Up/downloading using PC software The PC Software enables the address, location text, device type and any comments to be downloaded to the CF2000 panels . Figure 4 . CF2000 front panel PC commissioning software Figure 5 . device Inputs...

  • Page 35: Device Input Programming

    User can define between zones or addresses to be isolated on activation of the device . The isolate list button enables the user to enter upto 8 unique zones or addresses . InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 36: Sounder Trigger

    . Allocation List If the sounder trigger is by address, zone or panel, then the trigger source can be selected from the Allocation List box .Panel outputs InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 37: Dependency Detection

    . When the ‘Dependency’ box is checked - the ‘Allocate device’ button allows the user to populate this list . InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 38: Panel Fault Finding

    Commissioning the panel Panel Fault Finding InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 39: Panel Controls And Indicators

    Check with System Supervisor ⑩ Sounder Indicates the Sounder status Check with System Supervisor ⑪ Indicates Fire Routing Check with System Supervisor Equipment status ⑫ System Fault Panel has a fault Report to System Supervisor InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 40: Lcd Display Overview

    The panel is operated via an 8 button keypad . The default healthy screen is shown below . From this screen all the panels functions can be operated . Press any key to prompt the passcode screen . Figure 8 . default system Healthy screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 41: View Event

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 9 . View events screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 42: Fire Event

    The Fire screen is shown below . From this screen all the panels functions can be operated . Press any key to prompt the passcode screen Figure 10 . Fire event screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 43: View Fires

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 11 . View Fires screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 44: View Pre-Alarm

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 12 . View Pre-Alarm screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 45: View Fault

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 13 . View Fault screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 46: View Disabled Address

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 14 . View disabled Address screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...
  • Page 47 Panel Controls and Indicators View disabled Address (continued) Figure 15 . View disabled Address (continued) InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 48: View Disabled Zone

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 16 . View disabled Zone screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 49: View Disabled I/O

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 17 . View disabled I/o screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 50: View Log

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 18 . View Log screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 51: Operational Description Of The Event Log

    The test event log is suppressed as per 7 .5 .2 a • The activated test zones can be accessed via log filter if required . • (subject to 30 seconds max from last user interrogation InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 52: Operations (Soft Reset)

    Press the Scroll Down button until the Soft Reset screen is shown as illustrated below . Press OK and scroll through the list of options using the Up and Down arrow buttons and pressing OK to select . Figure 19 . operations (soft reset) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 53: Operations (Evacuate)

    Press the Scroll Down button until the Evacuate screen is shown as illustrated below . Press OK and scroll through the list of options using the Up and Down arrow buttons and pressing OK to select . Figure 20 . operations (evacuate) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 54: Operations (Silence Alarms)

    . Press OK and scroll through the list of options using the Up and Down arrow buttons . Press OK to select . Figure 21 . operations (silence Alarms) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 55: Operations (Lamp Test)

    Scroll Down button until the Lamp Test screen is shown as illustrated below . Press OK and scroll through the list of options using the Up and Down arrow buttons and pressing OK to select . Figure 22 . operations (Lamp Test) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 56: Operations (Weekly Test)

    . Press OK and scroll through the list of options using the Up and Down arrow buttons and pressing OK to select . Figure 23 . operations (Weekly Test) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 57: Access Level 2

    Press OK and scroll through the list of events using the Up and Down arrow buttons . First time power up will autolearn when button 4 is held when powered . Panel will continue to reset if no devices found on Autolearn . Figure 24 . Commissioning screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 58: Panel Settings (Erase Log)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 25 . Panel settings (erase Log) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 59: Panel Settings (Reset Wait Mode)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 26 . Panel settings (reset Wait Mode) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 60: Panel Settings (Zone Re-Sound Mode)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 27 . Panel settings (Zone re-sound Mode) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 61: Panel Settings (Change Password)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 28 . Panel settings (Change Password) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 62: Panel Settings (Reset Password)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 29 . Panel settings (reset Password) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 63: Panel Settings (Change Language)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 30 . Panel settings (Change Language) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 64: Panel Settings (Date/Time)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 31 . Panel settings (date/Time) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 65: Panel Settings (System Details)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 32 . Panel settings (system details) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 66: Panel Settings (Australian Mode)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 33 . Panel settings (Australian Mode) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 67: Testing (Test Device)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 34 . Testing (Test device) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 68: Testing (Test Zone)

    Press OK and scroll through the list of events using the Up and Down arrow buttons . ote: Persistent activations from same point will result in a repeated test cycle Figure 35 . Testing (Test Zone) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 69: Testing (Test Sound Levels)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 36 . Testing (Test sound Levels) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 70: Testing (One Man Walk Test)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 37 . Testing (one Man Walk Test) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 71: Testing (Global Flashing Led) Screen

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 38 . Testing (Global Flashing Led) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 72: Testing (Analogue Levels)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 39 . Testing (Analogue Levels) InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 73: Device Config (Add Device)

    After a device has been found and ote: added to the panel, the engineer should perform a hard reset of the panel to finish the function . Figure 40 . device Config (Add device) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 74: Device Config (Delete Device)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 41 . device Config (delete device) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 75: Device Config (Enable/Disable Address)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 42 . device Config (enable/disable Address) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...
  • Page 76 Panel Controls and Indicators enable/disable Address (continued) Figure 43 . device Config (enable/disable Address) screen (continued) InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 77: Device Config (Enable/Disable Zone)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 44 . device Config (enable/disable Zone) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 78: Device Config (Enable/Disable I/O)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 45 . device Config (enable/disable I/o) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 79: Device Config (Check Autoconfig)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 46 . device Config (Check Autoconfig) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 80: Device Config (Change Device)

    . Press OK and scroll through the list of events using the Up and Down arrow buttons . Figure 47 . device Config (Change device) screen InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 81: Device Config (Continued)

    Panel Controls and Indicators Device Config (continued) Figure 48 . device Config (Change device) screen continued InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 82: Appendix

    Appendix Appendix System Wiring A typical wiring arrangement is shown Figure 49 . Typical system Wiring InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 83: Detector Base Wiring

    - loosen screws to reduce this or slide base to a flat position. WArnInG do noT use HIGH VoLTAGe TesTers WHen sensors or ConTroL PAneL Are ConneCTed To THe sYsTeM Figure 50 . Wiring diagram for sensor Base InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 84: Addressable Call Point

    Appendix Addressable Call Point Figure 51 . Call Point InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 85: Base Sounder And Sounder Beacon Base

    Pulsed 910Hz / 0Hz pulse 1Hz Two tone 610 / 910Hz @ 1Hz cycle Slow whoop 500-1200Hz in 3 .5 seconds/0 .5secs gap Figure 52 . Base sounder and sounder beacon base wiring InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 86: Loop Powered Beacon

    Connection Details: Earth screen of cable to be continuous between beacons . WArnInG do noT use HIGH VoLTAGe TesTers IF AnY eQuIPMenT Is ConneCTed To THe sYsTeM . Figure 53 . Loop powered beacon InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 87: Internal Wall Sounder

    . eArTH sCreen MusT Be ConTInuous ALonG enTIre LenGTH oF LooP . Figure 54 . Internal Wall sounder note: Care should be taken to ensure that the cable does not put stress on the circuit board InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 88: Ip66 Wall Sounder Wiring

    HIGH VoLTAGe TesTers IF AnY eQuIPMenT Is ConneCTed To THe sYsTeM . eArTH sCreen MusT Be ConTInuous ALonG enTIre LenGTH oF LooP . Figure 55 . ll sounder Wiring InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 89: Way Input/Output Unit

    2. The end of line resistor must always be fitted, even if the inputs are unused. 3. Monitored inputs can detect open or short circuit faults. 4. Output relays are volt-free contacts and are not monitored. InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 90: Channel Mains Rated I/O Wiring

    Figure 57 . 1 Way Input output unit otes: 1. Only connect cable screen to its adjacent earth terminal. 2. The end of line resistor must always be fitted, even if the spur is unused. InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 91: Zone Monitor Unit Wiring

    4. Maximum spur length - See BS5839 Part1:2002 for Zone Coverage. 5. Maximum number of call points allowed is unlimited. 6. Detector zone end of line device is EOLM-1 (supplied). 7. Callpoint zone has end of line resistor. InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 92: Intrinsically Safe Zone Monitor Unit Wiring

    3. Only connect cable screen to its adjacent earth terminal. 4. The end of line resistor must always be fitted, each if the spur is unused. 5. Maximum spur length - See BS5839 Pt1:2001 for Zone Coverage. InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 93: Shop Monitor Unit

    4. Maximum spur length - See BS5839 Part1:2002 for Zone Coverage. 5. Maximum number of call points allowed is unlimited. 6. Detector zone end of line device is EOLM-1. 7. Callpoint zone has end of line resistor. InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 94: Spur Isolator

    1. Only connect cable screen to its adjacent earth terminal. 2. For maximum spur length / load see BS5839 Part1:2002. 3. This unit can only be used with Eaton addressable detector bases and compatible sensors. InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 95: Way Sounder Controller

    Figure 62 . 4 Way sounder Controller otes: 1. Only connect cable screen to its adjacent earth terminal. 2. The end of line resistors must always be fitted, even if the sounder circuits are unused InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 96: Micro Zone Monitor Wiring

    . There are no serviceable parts so no maintenance procedures apply . Figure 63 . standard connections 1. This unit can only be used with Eaton EFXN520 detector base and compatible detectors. 2. Only connect cable screen to its adjacent earth terminal.

  • Page 97: Micro Input Module Wiring

    Waste Regulation 1996 . It is recommended that the following authorities are contacted before any attempt is made to dispose of batteries; Environment Agency Local office, Local Authority Environmental Health or Waste Handling department . InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...
  • Page 98 C 7 .13 Alarm counter 8 .9 Output to fault routing equipment 9 .5 Disablement of each point Test condition Other technical data: see Doc . 25-16330 held by the manufacturer InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...

  • Page 99: Notes

    Notes Notes InsTALLATIon And oPerATIon MAnuAL 25-16330-B December 2019 www.eaton.com...
  • Page 100 Ltd . Wheatley Hall Road Doncaster South Yorkshire DN2 4NB eaton EMEA Headquarters Route de la Longeraie 7 1110 Morges, Switzerland Eaton .eu © 2019 Eaton Eaton is a registered trademark. All Rights Reserved Publication No . 25-16330-B...
