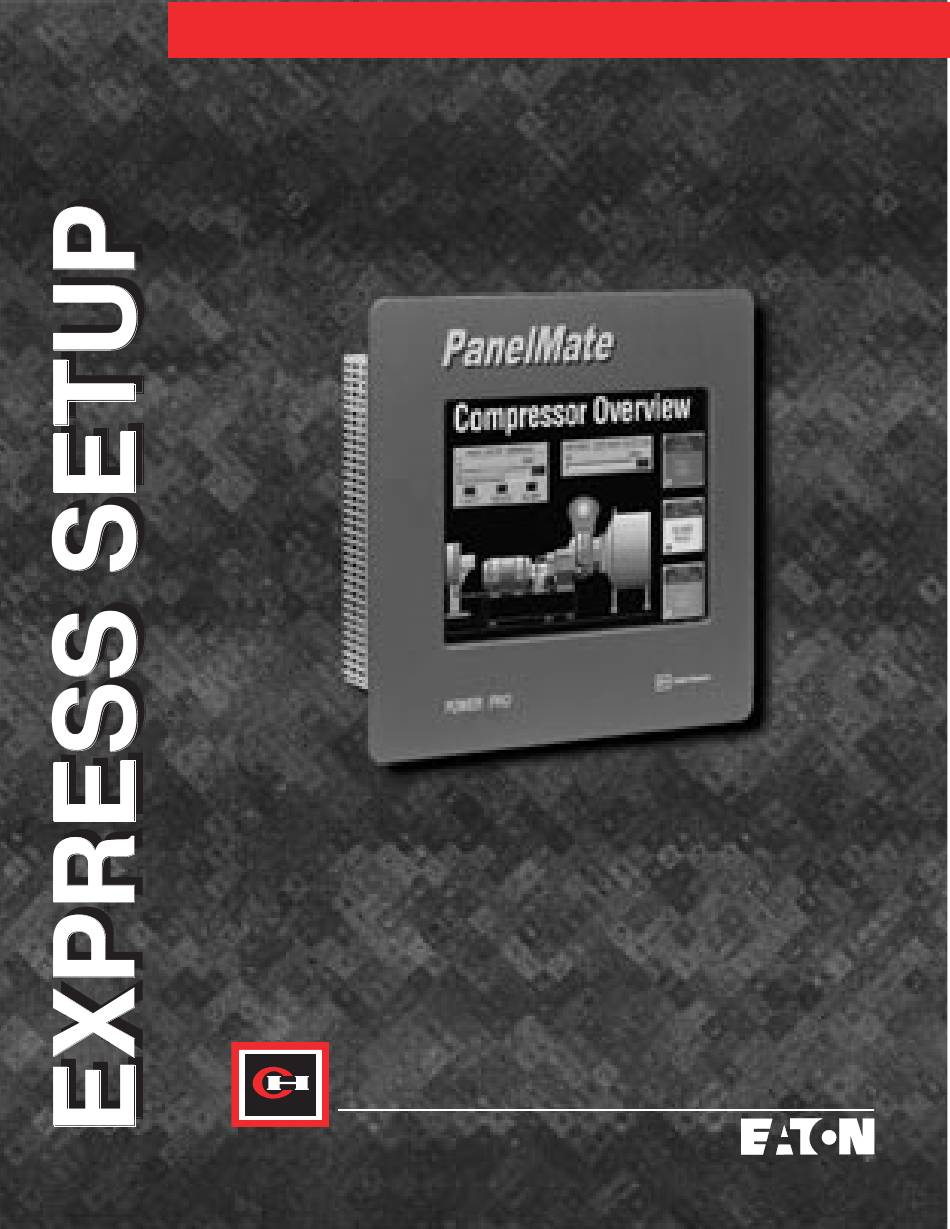

- Page 1 PanelMate 3000 Series PanelMate Power Pro Cutler-Hammer...
-
Page 2: Installation
Refer to Cutler-Hammer's PanelMate Installation Guide for installation recommendations. The Guide is available on the Cutler-Hammer web site: www.cutlerhammer.eaton.com/automation RESQUE D'EXPLOSION. COUPER LE COURANT Panel cutout dimensions and stud torque limits are OU S'ASSURER QUE L'EMPLACEMENT ES... - Page 3 Connections Connect DC Power Connection to a Personal Computer Your PanelMate unit operates at 24VDC - Executive firmware and PanelMate configurations 15%/+20%. A removable three-position DC power are uploaded/downloaded to a PC using the connector attaches to the unit's connector PanelMate unit's serial port.
- Page 4 Connection to Serial Ports Description Serial Port 1 may be used for a printer, for PLC (or RS422 Transmit Data (+) (Output) Host) communications, or for connection to a RS232 Receive Data (Input) personal computer for upload or download. Serial RS232 Transmit Data (Output) Port 2 may be used for a printer or, for PLC (or Host) RS422 Receive Data (+) (Input)
-
Page 5: Tests & Adjustments
Tests & Adjustments PanelMate Diagnostic Tests Display System Configuration Information This selection displays your PanelMate unit's When power is applied to you PanelMate unit, the current configuration. Your PanelMate unit is unit will display a listing of internal diagnostic shipped with a demonstration PanelMate checks as they are executed. -
Page 6: Touchscreen Information
Touchscreen Information Touchscreen Calibration PanelMate Operation The most basic job of a PanelMate unit is to replace You can calibrate your unit's touchscreen in both the functions of hard-wired operator station devices Offline and Run modes. To access the calibration such as pushbuttons, lamps and message displays. -
Page 7: Cutout Template
Cutout Template Care should be taken when tightening the This drawing is not 1:1 scale. Please refer to the nuts. The fasteners must be tightened Express Setup Sheet included with your enough to obtain a proper seal, but not over PanelMate unit for a 1:1 cutout drawing. -
Page 8: Specifications
Specifications Temperature Operating: 0 to 50 degree C Non-Operating: -20 to 70 degree C Humidity (non-condensing) Operating: 20% - 90% Non-Operating: 20% - 95% NEMA Class: Type 4, 4X, or 12 Vibration Operating: 1g at 10-500Hz Non-Operating 1g at 10-500Hz Shock Operating: Non-Operating: 30g... -
Page 9: Support Services
RS232, RS422, or RS485-2 signal levels Weight: 10 Lbs 11 Lbs with Fieldbus interface attached Support Services Technical Support 1-800-809-2772 Voice 1-614-882-0417 Fax Information Fax-Back 614-899-5323 Website http://www.cutlerhammer.eaton.com/automation Technical Support E-mail chatechsupport@ch.etn.com Cutler-Hammer 173 Heatherdown Drive Westerville, OH 43081 614-882-3282 P/N 01-00465-01...
