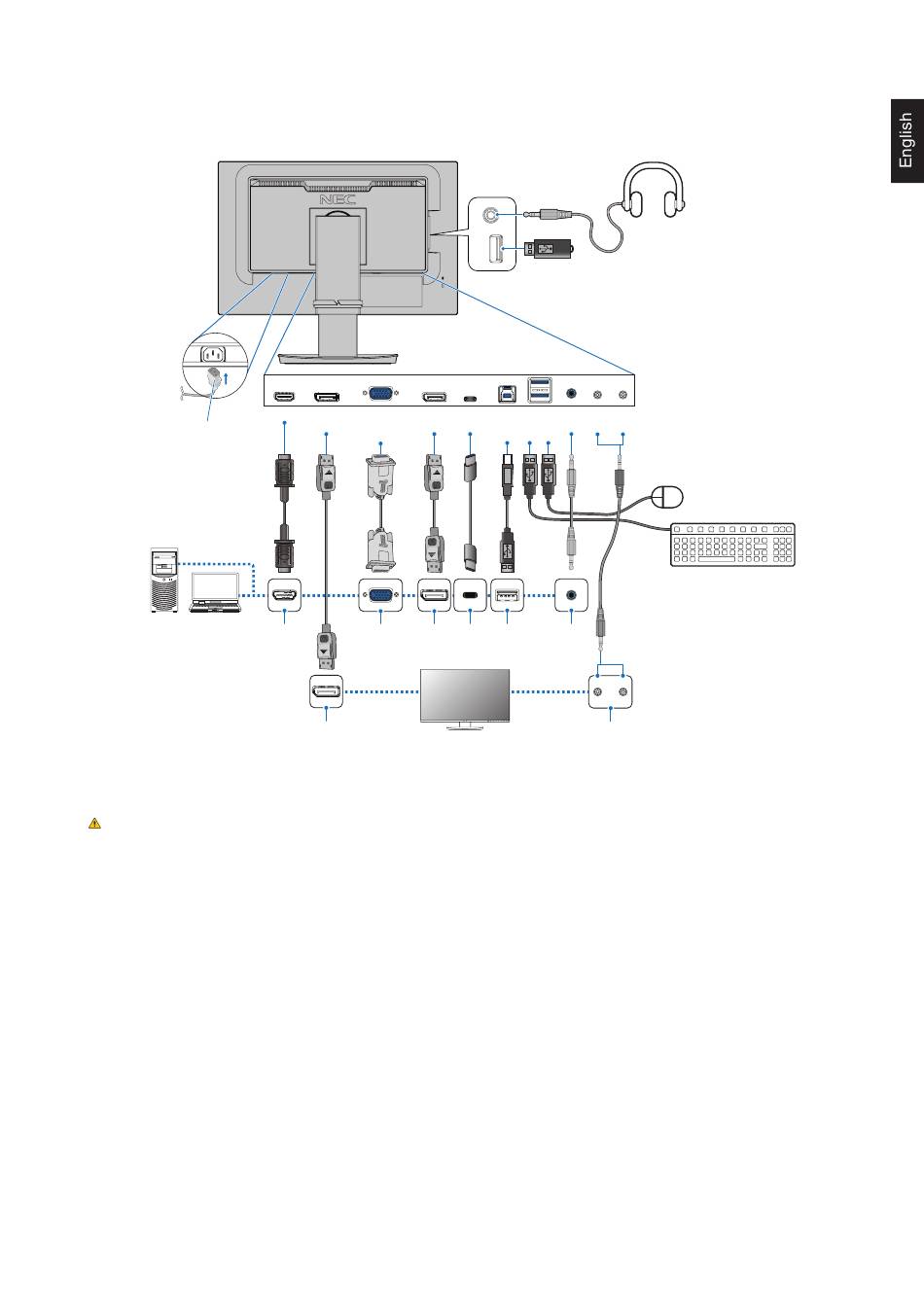

3. Connect devices to the monitor.
NOTE:
Make sure the signal cable is fully connected to the monitor and the computer.
Power cord
NOTE: •
When removing the DisplayPort cable, hold down the button to release the lock.
•
Please use a certified DisplayPort cable.
•
Please use a High Speed HDMI cable with the HDMI logo.
CAUTION: •
Use the provided specified cables with this product so as not to interfere with radio and television
reception.
For DisplayPort, HDMI, USB and USB-C, please use a shielded signal cable.
For mini D-Sub 15-pin, please use a shielded signal cable with ferrite core.
Use of other cables and adapters may cause interference with radio and television reception.
•
Please refer to
NOTE: •
Adjustment of the volume control as well as the equalizer to other settings than the center position may increase
the ear-/headphones output voltage and therefore the sound pressure level.
•
Incorrect cable connections may result in irregular operation, damage display quality/components of the LCD
module and/or shorten the module's life.
•
Do not use an attenuating (built-in resistor) audio cable. Using an audio cable with a built-in resistor will lower
the sound level.
Master monitor
HDMI
DisplayPort
VNA IN
DisplayPort
OUT
(mini D-Sub
IN
15-pin)
HDMI
VNA IN
DisplayPort
(mini D-Sub
15-pin)
Sub monitor
DisplayPort IN
"CAUTION 3"
and
"CAUTION
English−17
Headphone
USB Downstream (Type-A)
USB
Audio
ControlSync
USB-C
Downstream
IN
IN
OUT
(Type-B) (Type-A)
USB
USB
Audio
Type-C
IN
OUT
ControlSync
9".
