EN - Installation, use and
maintenance manual
H17 V LIGHT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H17 V LIGHT and is the answer not in the manual?

Questions and answers

Related Manuals for Nobis H17 V LIGHT

Summary of Contents for Nobis H17 V LIGHT

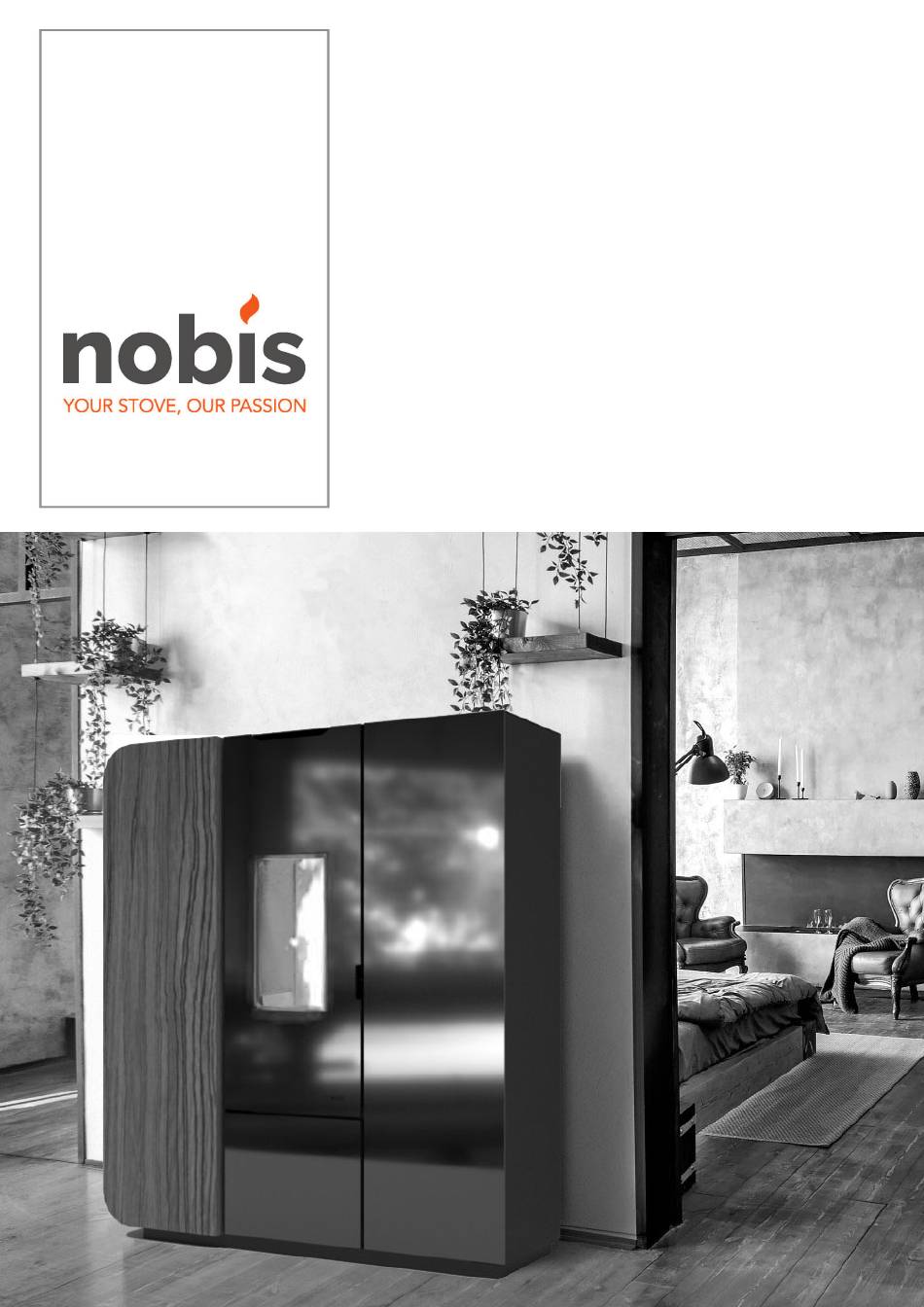

  • Page 1 EN - Installation, use and maintenance manual H17 V LIGHT...
  • Page 2 Dear Customer. Thank you for choosing a product from our range. You are invited to read this manual carefully before using the product, so as to take full advantage of all its features in complete safety. This manual contains information necessary for correct installation, start-up, use, cleaning and maintenance of the product.

  • Page 3: Manual Index

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” MANUAL INDEX 1 Introduction 9 Menu browsing Symbols Intended use 10 First start-up instructions 10.1 Hour-date settings Improper use 10.2 Probe adjustments Importance of the manual 10.3 Room temperature settings General safety warnings Legal warranty 10.4...

  • Page 4: Importance Of The Manual

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” INTRODUCTION 1.3 IMPROPER USE Nobis products are designed and manufactured The product is intended to be used for the purpos- in compliance with the reference standards for es and within the limits for which it was expressly de-...

  • Page 5: Legal Warranty

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” • The product can be used by children over • all parts resulting as being faulty due to 8 years of age and people with reduced negligence or careless use, wrong...
  • Page 6 ENGLISH Use and Maintenance Manual model “H17 V LIGHT” CHARACTERISTICS OF PELLETS SPARE PARTS Wood pellets are fuel made from pressed sawdust, Please, use only original spare parts. often recovered from carpentry processing waste. Do not wait for the components to wear from use The material used cannot contain any foreign before replacing them.

  • Page 7: Installation

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” The air intake is not necessary in case of installation INSTALLATION of hermetic appliances that take the air directly from the outside. Check and respect the ventila- When installing and using the the product, all local,...

  • Page 8: Chimney Flue

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” 3.3 CHIMNEY FLUE 3.5 INSTALLATION OF THE HERMETIC PRODUCT When installing the chimney flue, the following In the event of installation of a hermetic product, must be applied. you can connect it with the piping system by •...

  • Page 9: Examples Of Proper Installation

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” 3.6 EXAMPLES OF PROPER INSTALLATION A proper installation of the product (A) needs for a horizontal section to connect it to a pre-existing chimney flue. A slope of 3-5% must be observed, so as to reduce ash deposit in the horizontal pipe sec- tion - which must not exceed 3m in length (1).
  • Page 10 • Use of certified material with the CE mark (305/2011); • possible instructions related to the warranty; • date and signature of the installer; NOBIS SRL cannot be held in any way liable in the event of non-compliance with the installation and start-up standards of its products. Fig.1...
  • Page 11 ENGLISH Use and Maintenance Manual model “H17 V LIGHT” RIGHT FRONT PANEL ASSEMBLY (fig.2) COVERING STEEL ASSEMBLY Take the left panel from the packaging and take LEFT FRONT PANEL ASSEMBLY (fig.1) it to vertical position to fix the 2 hinges, with Allen Take the left panel from the packaging and take screw of 4 and wrench of 7.

  • Page 12: Hydraulic Connection

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” 3.10 HYDRAULIC CONNECTION This section of the maual illustrates all the steps to follow in order to connect the hydraulic system of the product to the house system. Product connection to the the house hydraulic...

  • Page 13: System Cleaning

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” If system pressure happens to drop while operating In order to remove any residues and deposits, wash (during evaporation of gases dissolved in the water) the entire system before connecting the product.
  • Page 14 ENGLISH Use and Maintenance Manual model “H17 V LIGHT” EXAMPLES OF HYDRAULIC DIAGRAMS...
  • Page 15 ENGLISH Use and Maintenance Manual model “H17 V LIGHT”...
  • Page 16 ENGLISH Use and Maintenance Manual model “H17 V LIGHT”...
  • Page 17 ENGLISH Use and Maintenance Manual model “H17 V LIGHT”...

  • Page 18: Product Maintenance

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” TECHNICAL DATA OF THE PRODUCT It is compulsory for the system to be grounded and have a differential switch in compliance with cur- This chapter gives the end user all information related rent laws.

  • Page 19: Product Configuration

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” PRODUCT CONFIGURATION 6.3 DIMENSIONS Once installation, assembly of the coverings (where present as a kit) and electrical connection have been duly carried out, access the rear part of the product to power it.

  • Page 20: Pellet Loading

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” Select your standard language, using the keys 7.2 CONFIGURATION OF EXT. THERMOSTAT Press to confirm and move on to the next If you want to manage the appliance from a different screen.

  • Page 21: Description Of The Remote Control

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” In the event of malfunctioning of the remote commu- nication between the remote control and the receiver, or if batteries are flat, please use the emergency ca- ble supplied to restore communication between the remote devices.
  • Page 22 ENGLISH Use and Maintenance Manual model “H17 V LIGHT” 8.3 DESCRIPTION OF THE REMOTE CONTROL DISPLAY The remote control display will appear as follows: STAND-BY SCREEN From STAND-BY mode, press to get an overview of the actual and active device status, as shown in the...

  • Page 23: Icons Overview

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” 8.5 ICONS OVERVIEW MEANING MEANING START O STANDBY MAX. WORKING POWER FAULTY PRESSURE SENSOR FAULTY FLAME PROBE MIN. WORKING POWER REMOTE CONTROL BATTERIES SANITARY MODE ALMOST FLAT LIMIT OF MANUAL ROOM TEMPERATURE...
  • Page 24 ENGLISH Use and Maintenance Manual model “H17 V LIGHT” 10 FIRST START-UP INSTRUCTIONS By pressing , scroll down entries to select SETTINGS Access the menu by pressing This chapter highlights a series of operations to carry out during the first start-up phase of the appliance.

  • Page 25: Operation

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” 11 OPERATION Each time the appliance is turned on, it ALWAYS turns on at maximum power to guarantee the Products in the range include an operation phase greatest amount of heat to the heating system.

  • Page 26: Operating Procedure

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” Delta restart OPERATING PROCEDURE: MENU >> USER>> COMFORT CLIMA Access the menu by pressing key Scroll the entry to USER with the key Access the menu by pressing key Scroll the entries to COMFORT CLIMA, key This setting determines the temperature needed for the appliance to restart.

  • Page 27: Description Of The Menu Functions

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” 12 DESCRIPTION OF THE MENU FUNCTIONS 11.3 H O STANDBY This chapter describes the user menu functions useful “H O Standby” mode is activated when water tem- to improve some comfort-related aspects of the user perature reaches 85°C;...

  • Page 28: Fire Hazard

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” Access the menu by pressing To edit the switch on/off times, as well as enabling the days of the week, press keys Scroll the entries to AUGER LOADING and press Confirm each data change using the key Access the function by pressing key move on to the second screen of the TIMER program.

  • Page 29: Stove Status

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” Scroll the entries to USER with the key Edit the pellet setting by using keys Access the menu by pressing key The values vary from -5: reduction in pellet load (%)
  • Page 30 ENGLISH Use and Maintenance Manual model “H17 V LIGHT” Scroll the entries to SETTINGS with the key Access the menu by pressing key The first item on the menu, ENABLE T.EXT. Tick using the key if you want to manage room...

  • Page 31: Firmware Version

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” Access the menu by pressing key 12.10 ANTICONDENSATION (exhaust fumes temperature) Scroll the entries to SETTINGS with the key This function ensures that the exhaust fumes temperature Access the menu by pressing key remains higher than condensate temperature.
  • Page 32 ENGLISH Use and Maintenance Manual model “H17 V LIGHT” To return to the STAND-BY screen, press repeatedly. The DHW storage is managed by the appliance thanks to a contact or immersion probe (not provided) to be connected on the back side of the product.
  • Page 33 ENGLISH Use and Maintenance Manual model “H17 V LIGHT” STAND-BY SCREEN 13.2 DIAGRAM 02 (TECHNICAL H O STORAGE TANK) In this type of circuit, technical H2O storage tank is managed by the product thanks to a contact or im- mersion probe (not provided) to be connected to the back side of the appliance.

  • Page 34: Functions Overview

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” 14 PHASES OVERVIEW 15 FUNCTIONS OVERVIEW PHASE DESCRIPTION PHASE DESCRIPTION Room temperature set on MAN -The resistor preheating phase mode. In this case the appliance will starts and pellet begins to fall into the operate only when the power of the brazier.

  • Page 35: Description Of Alarms

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” ANOMALIES OVERVIEW Anomalies, (which are not to be confused with “alarms”), are signals which reset automatically PHASE DESCRIPTION once the issue that caused them to activate has been solved. Moreover, the signalling will not cause...
  • Page 36 ENGLISH Use and Maintenance Manual model “H17 V LIGHT” ALARM CODE REASON ALARM CODE REASON Combustion in the brazier is not optimal be- No power supply or power supplied by the cause either it is clogged or the inner pas- electronic control unit is inadequate.
  • Page 37 ENGLISH Use and Maintenance Manual model “H17 V LIGHT” POSITION OF THE MANUAL RESET THERMAL SWITCH ALARM CODE REASON Combustion in the brazier is not optimal as the brazier is clogged or the inner passages of the appliance are clogged.

  • Page 38: Cleaning The Appliance

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” 19 CLEANING THE APPLIANCE Product installation must take place in in such a way as to ensure easy access to the appliance itself and to the flue for cleaning and maintenance operations.

  • Page 39: Cleaning The Glass Door

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” 19.2 CLEANING THE GLASS DOOR To clean the glass, use a cotton cloth or kitchen pa- per. It is recommended to clean the glass using a cloth damp with a mixture of water and combustion ash...
  • Page 40 ENGLISH Use and Maintenance Manual model “H17 V LIGHT” OPERATING PROCEDURE: TABLE OF CLEANING CYCLES Essential control and/or maintenance intervention for Open the door under the fire door, as in the figure proper operation are summarised below. below: PARTS/FREQUENCY TIME 7 DD Ash pan (approx.

  • Page 41: Wiring Diagram

    ENGLISH Use and Maintenance Manual model “H17 V LIGHT” 20 WIRING DIAGRAM S. BOILER FLUX NTCm S. PUF.H NTCr T.EXT/PUF.L F N NO NC LEGEND: SAFETY REMOTE UNIT SELECTION PRESSURE SENSOR SMOKE EXTRACTOR VACUUM SWITCH BUTTON FW UPGRADE BUTTON STROKE COUNTER...
  • Page 42 ENGLISH Use and Maintenance Manual model “H17 V LIGHT” DATE NOTE...
  • Page 43 ENGLISH Use and Maintenance Manual model “H17 V LIGHT” DATE NOTE...
  • Page 44 NOBIS srl Via Palazzolo N.11 25037 - Pontoglio - BS www.nobisfire.it Nobis Srl cannot be held in any way liable for any errors in this manual and considers itself free to change the features of its products without prior warning.
