BO−26
Clip
6 Clips
LEXUS IS200 (RM684E)
BODY
−
REAR DOOR

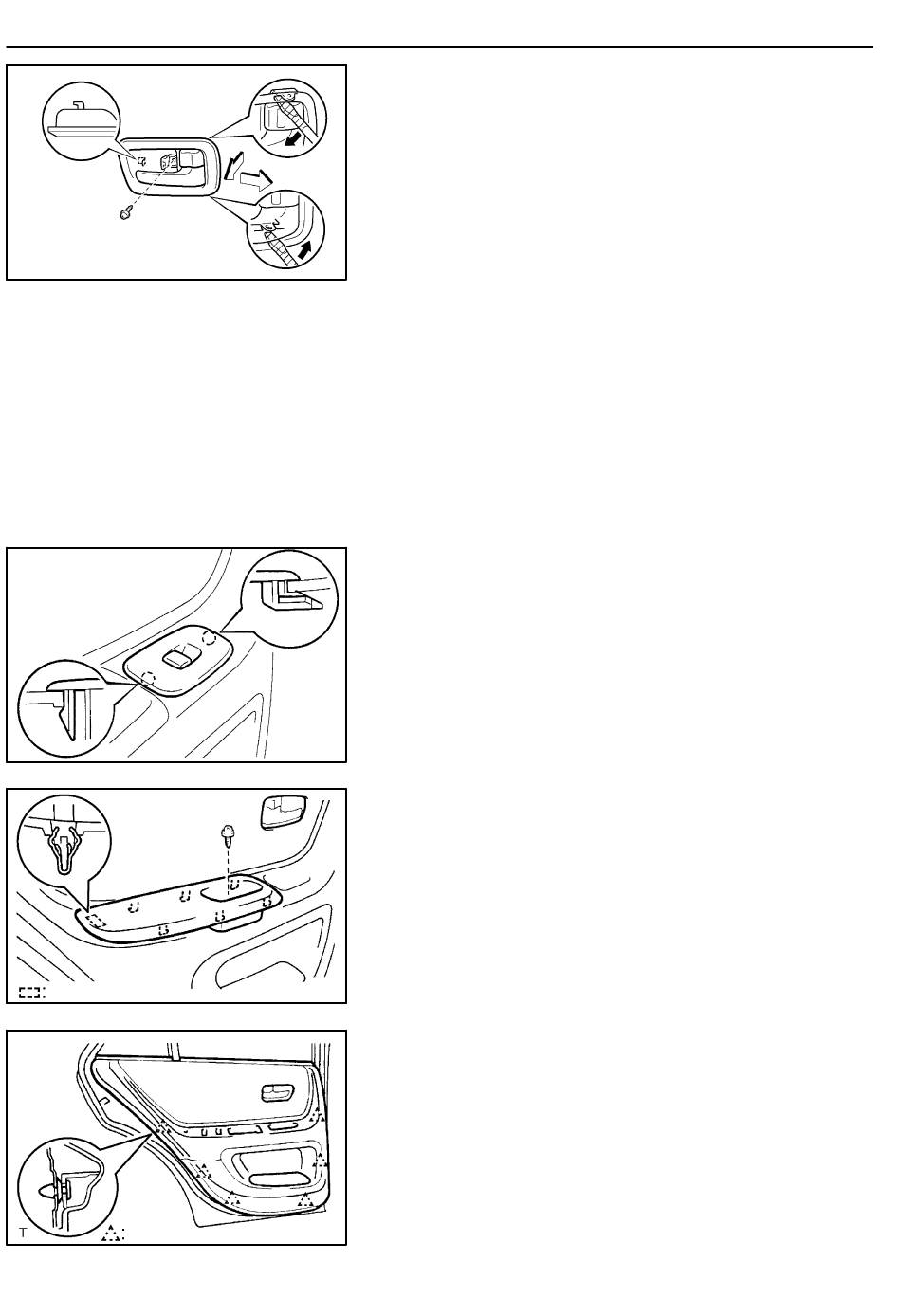

DISASSEMBLY
1.
REMOVE INSIDE HANDLE BEZEL
(a)
Using a screwdriver, open the screw cap.
HINT:
Tape the screwdriver tip before use.
(b)
Remove the screw.
(c)
Using a screwdriver, remove the inside handle bezel as
shown in the illustration.
HINT:
H10366
Tape the screwdriver tip before use.
2.
REMOVE POWER WINDOW SWITCH
(a)
Using a screwdriver, remove the power window switch.
HINT:
Tape the screwdriver tip before use.
(b)
Disconnect the connector.
H10379
3.
REMOVE REAR ARMREST
(a)
Remove the screw.
(b)
Using a screwdriver, remove the rear armrest.
HINT:
Tape the screwdriver tip before use.
H10380
4.
REMOVE DOOR TRIM
Using a screwdriver, disengage the clips, then pull the trim up-
ward to remove it.
HINT:
Tape the screwdriver tip before use.
H10381
BO2C8−01
