LEXUS IS200 (RM684E)
BODY − REAR DOOR
5.

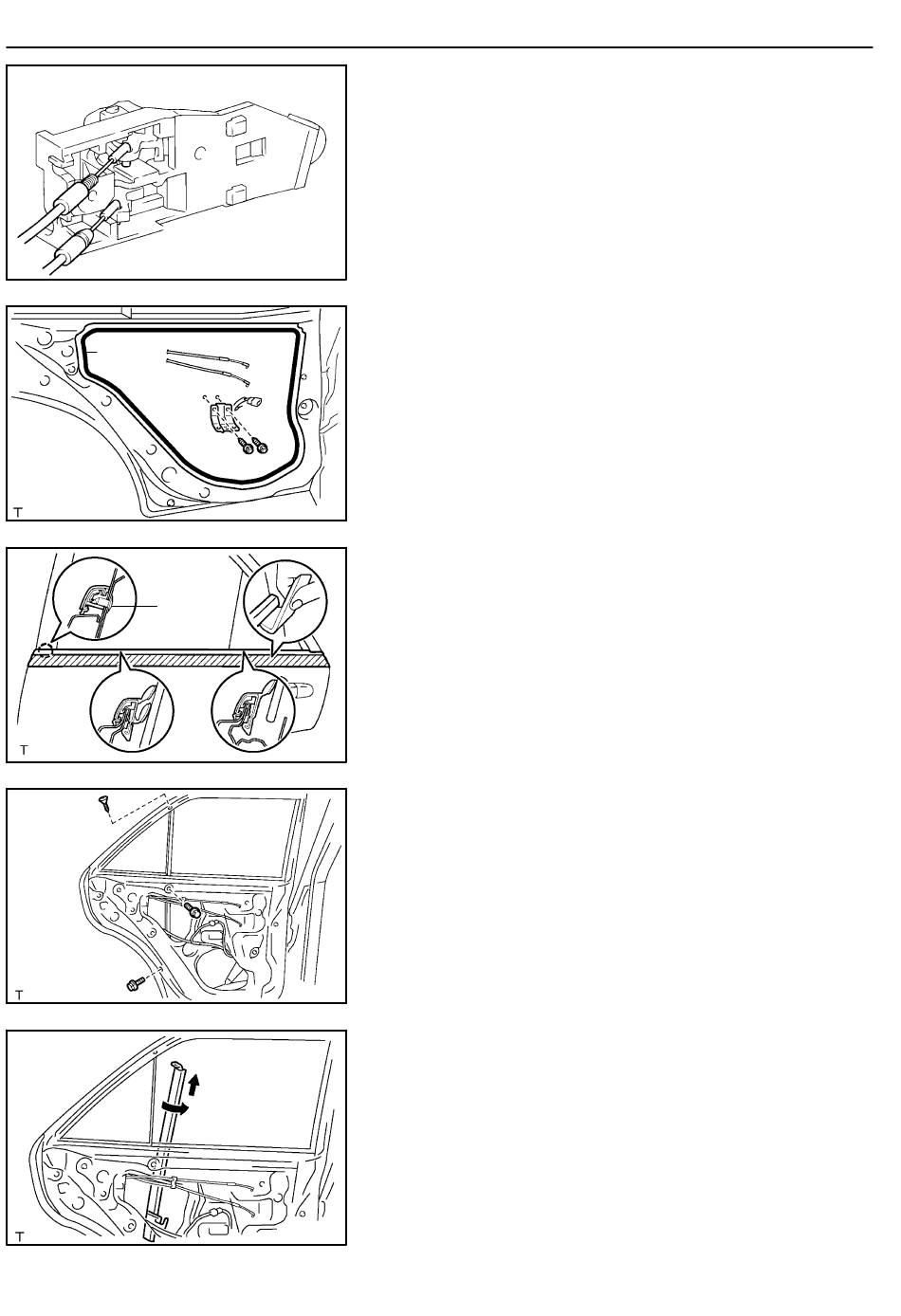

REMOVE INSIDE HANDLE

Remove the screw and inside handle, disconnect the 2 cables
from the inside handle.
H06185
6.

REMOVE SERVICE HOLE COVER

(a) Disconnect the connector.
(b) Remove the 2 screws and door trim bracket.
(c) Remove the service hole cover.
7. w/o Double locking:

REMOVE SERVICE HOLE PLATE

Remove the 2 screws and service hole plate.
8.

REMOVE DOOR GLASS RUN

H10383
9.

REMOVE REAR DOOR BELT MOULDING

(a) Remove a screw.
(b) Apply protective tape to the outer surface as shown in the
illustration to keep the surface from being scratched.
(c) Using a moulding remover, remove the rear door belt
moulding as shown in the illustration.
H10384
10.

REMOVE DIVISION BAR

(a) Remove the 2 bolts and screw.
(b) Pull the division bar forward.
H10471
(c) Rotate the division bar 90˚ and pull it upward as shown
in the illustration.
H10472
