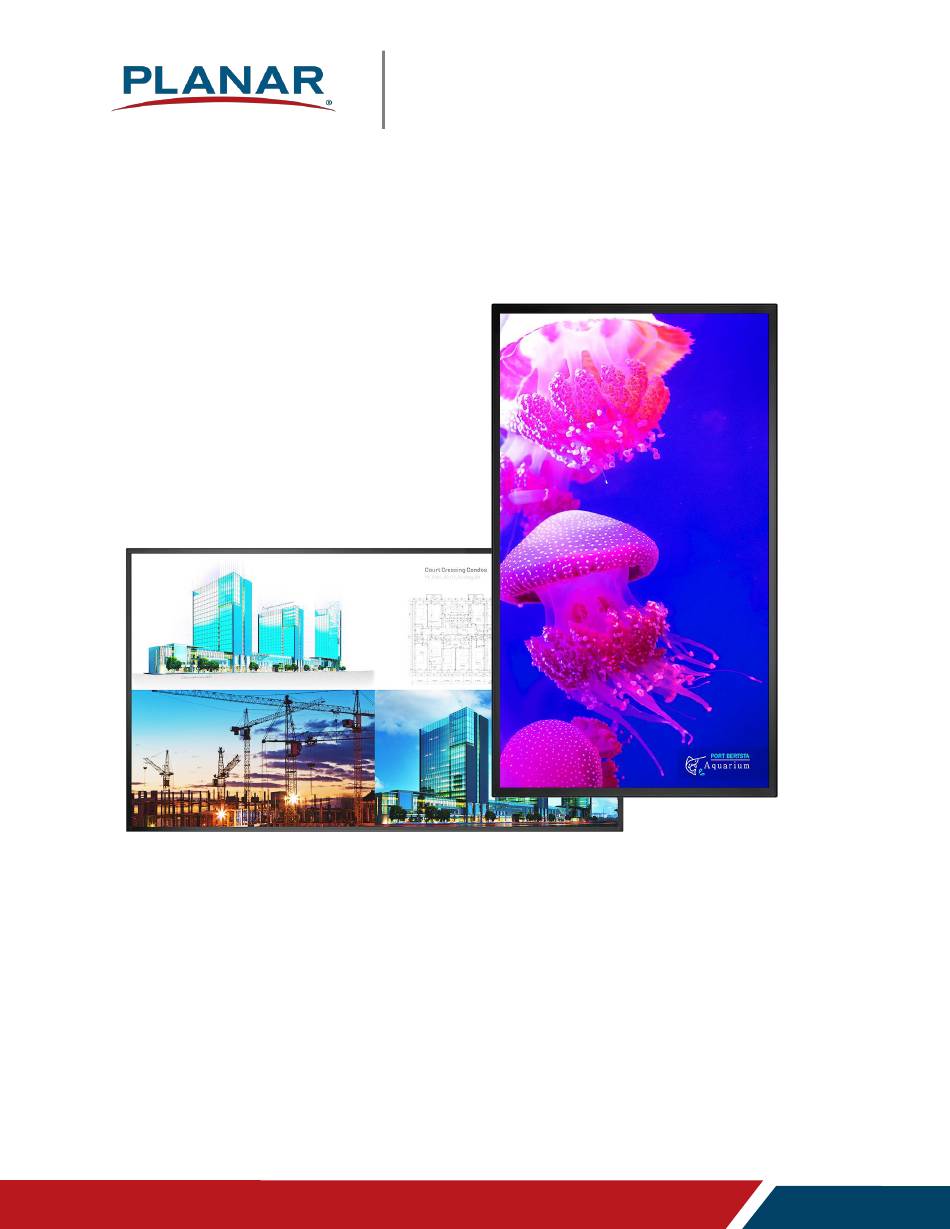

Planar UltraRes X Series RS232
Planar UltraRes X Series RS232 User Manual
020-1397-00B
User Manual
URX75
URX75-ERO
URX75-ERO-T
URX85
URX85-ERO
URX85-ERO-T
URX100
URX100-ERO
URX100-ERO-T
Page | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UltraRes X RS232 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planar UltraRes X RS232 Series

Summary of Contents for Planar UltraRes X RS232 Series

  • Page 1 User Manual Planar UltraRes X Series RS232 URX75 URX75-ERO URX75-ERO-T URX85 URX85-ERO URX85-ERO-T URX100 URX100-ERO URX100-ERO-T Planar UltraRes X Series RS232 User Manual Page | 1 020-1397-00B...
  • Page 2 When you purchase a Planar product, you get more than a display; you get the service and support you need to maximize your investment. To find the latest warranty and service information regarding your Planar product, please visit http://www.planar.com/support...

  • Page 3: Table Of Contents

    Key ........................48 Timezone ......................50 Sending Serial Commands via USB .................55 Installing the Planar UltraRes X Series USB drivers .........55 Using the Planar UltraRes X Series USB Connection ........61 Sending RS232 Commands Via TCP or UDP ..............62 Planar UltraRes X Series RS232 User Manual...

  • Page 4: Rs232 Communication

    Note: Serial communication can occur over RS232, USB-B or LAN. Applicable Models This RS-232 user manual applies to all Planar UltraRes X Series models with the exception of the UR8450 and UR9850 models. The RS232 instructions for the UR8450 and UR9850 models can be found in the User Manual for these models, located at www.planar.com/support/.

  • Page 5: Connecting The Rs232 Cable

    Connecting the RS232 Cable The Female DB9 connector is wired as a Straight Through serial connection. Pin # Signal Planar UltraRes X Series RS232 User Manual Page | 5 020-1397-00B...

  • Page 6: Rs232 Command Protocol

    • Note that enumerated and integer values can be written either in decimal or hexadecimal. For example, a decimal value of ‘50’ can be written in hexadecimal as ‘0x32’. Planar UltraRes X Series RS232 User Manual Page | 6 020-1397-00B...

  • Page 7: Protocol Encoding

    Example command with multiple modifiers, multiple operators and different separators between the modifiers and operators (sets Red Gain to 104, Green Gain to 105 and Blue Gain to 106, on Zone 1) Planar UltraRes X Series RS232 User Manual Page | 7 020-1397-00B...
  • Page 8 Name containing “ and \ and \\” and \\” power.on.delay = .1 POWER.ON.DELAY:0.1 Example of a fixed point operand. Sets the Power On Delay to 0.1 seconds. Planar UltraRes X Series RS232 User Manual Page | 8 020-1397-00B...

  • Page 9: Rs232 Codes

    ASPECT=AUTO • ‘!’ in the Operators column indicates that the command accepts the execute operator, which uses no operator symbol. The ‘!’ symbol is not included in the command. Planar UltraRes X Series RS232 User Manual Page | 9 020-1397-00B...
  • Page 10 7 = CYAN.Y 8 = MAGENTA.X 9 = MAGENTA.Y 10 = YELLOW.X 11 = YELLOW.Y 12 = WHITE.X 13 = WHITE.Y [None = Set all 14 values at once] Planar UltraRes X Series RS232 User Manual Page | 10 020-1397-00B...
  • Page 11 Allow Pop OSD.ALLOW. 1300 =?+- 0 = NO OSD.ALLOW.POPUP=YES See Main -> Advanced OSD.ALLOW.POPUP:YES POPUP 1 = YES Settings -> Menus and Messages Messages -> Allow Pop Up Messages. Planar UltraRes X Series RS232 User Manual Page | 11 020-1397-00B...
  • Page 12 Ops 2-8: Unsigned AUDIO.MUTE, Integers AUDIO.SPEAKERS Auto Power AUTO.ON 1407 =?+- 0 = OFF AUTO.ON=ON See Main -> Advanced 1 = ON AUTO.ON:ON Settings -> Power -> Auto Power On. Planar UltraRes X Series RS232 User Manual Page | 12 020-1397-00B...
  • Page 13 1 = ZONE.2 BRIGHTNESS(ZONE.1):50 2 = ZONE.3 3 = ZONE.4 [For the current zone] 253 = ALL.INPUT BRIGHTNESS=55 254 = ALL BRIGHTNESS:55 254 = ALL.ZONE 255 = CURRENT [None = CURRENT] Planar UltraRes X Series RS232 User Manual Page | 13 020-1397-00B...
  • Page 14 1 = ZONE.2 2 = ZONE.3 3 = ZONE.4 [For the current zone] 253 = ALL.INPUT COLOR=55 254 = ALL COLOR:55 254 = ALL.ZONE 255 = CURRENT [None = CURRENT] Planar UltraRes X Series RS232 User Manual Page | 14 020-1397-00B...
  • Page 15 Advanced Color -> Copy to All Zones. “Revert” is an execute action that takes all three modifiers and no operands. See Main -> Advanced Settings -> Advanced Color -> Revert to Defaults. Planar UltraRes X Series RS232 User Manual Page | 15 020-1397-00B...
  • Page 16 0 = ZONE.1 COLOR.SUBSAMPLING(ZONE.1)? -> Image Information -> COLOR.SUBSAMPLING(ZONE.1):" 1 = ZONE.2 Color Subsampling. 2 = ZONE.3 4:4:4" 3 = ZONE.4 255 = CURRENT [For the current zone] COLOR.SUBSAMPLING? COLOR.SUBSAMPLING:"4:2:0" Planar UltraRes X Series RS232 User Manual Page | 16 020-1397-00B...
  • Page 17 [None = CURRENT] Current CURRENT. =?+- Zone CURRENT.ZONE=ZONE.1 See Main -> Image Adjust Zone ZONE 0 = ZONE.1 CURRENT.ZONE:ZONE.1 -> Current Zone. 1 = ZONE.2 2 = ZONE.3 3 = ZONE.4 Planar UltraRes X Series RS232 User Manual Page | 17 020-1397-00B...
  • Page 18 22 = T.B.1 23 = T.B.2 24 = T.B.3 25 = T.M.1 26 = T.M.2 27 = T.M.3 28 = Q.1 29 = Q.2 30 = Q.3 31 = Q.4 Planar UltraRes X Series RS232 User Manual Page | 18 020-1397-00B...
  • Page 19 DISPLAY.NAME:"Conference Room Monitoring Software 1" pages. Display DISPLAY. 1408 =?+- 0 = OFF DISPLAY.POWER=ON See the IR remote control Power POWER 1 = ON DISPLAY.POWER:ON keys ON and OFF. Planar UltraRes X Series RS232 User Manual Page | 19 020-1397-00B...
  • Page 20 Server 2 [None = Current (for value] server. reads only] NETWORK.DNS2? [None = STATIC (for NETWORK.DNS2:"172.16.0.191" writes only] [Write the DNS server 2 for static IP] NETWORK.DNS2(STATIC)="8.8.4.4 " NETWORK.DNS2(STATIC):"8.8.4.4" Planar UltraRes X Series RS232 User Manual Page | 20 020-1397-00B...
  • Page 21 See Main -> Advanced CONNECTOR 1 = HDMI.1 HDMI.1 Settings -> EDID -> 2 = HDMI.2 EDID.SELECTEDCONNECTOR: Selected Connector. 3 = HDMI.3 HDMI.1 4 = HDMI.4 5 = DP 6 = ALL Planar UltraRes X Series RS232 User Manual Page | 21 020-1397-00B...
  • Page 22 USER is the same as Reset 1 = FACTORY1 RESET(USER)@ACK Main -> Advanced Settings -> System Settings -> Factory Reset. FACTORY1 resets everything that USER resets plus EDID customizations, network settings and presets. Planar UltraRes X Series RS232 User Manual Page | 22 020-1397-00B...
  • Page 23 [None = CURRENT] Blue Gain: 0-200 modifiers are missing. Mod 2: Color 0 = RED 1 = GREEN 2 = BLUE 255 = ALL [None = ALL] Planar UltraRes X Series RS232 User Manual Page | 23 020-1397-00B...
  • Page 24 HDR.CONTENT 1513 =?+- 0 = Off HDR.CONTENT? Used to get or set the Content 1 = On HDR Content option in 2 = Auto the System Settings submenu. Planar UltraRes X Series RS232 User Manual Page | 24 020-1397-00B...
  • Page 25 No Modifiers\ HELP(FIRST)? 1 Operand(s)\ Operand #1: Unsigned Then enter the following Integer\ command continuously DISABLE 0\ until it returns NAK: ENABLE 1\ HELP(NEXT)? FALSE TRUE " Planar UltraRes X Series RS232 User Manual Page | 25 020-1397-00B...
  • Page 26 3 = HTOTAL 4 = VTOTAL 5 = VREFRESH 6 = HREFRESH 7 = INTERLACE 8 = VFIELDRATE 9 = VREFRESH.X. 10 = COLORDEPTH 11 = TMDS [None = ALL] Planar UltraRes X Series RS232 User Manual Page | 26 020-1397-00B...
  • Page 27 Settings -> IR Remote ID Code. IR Remote IR.LOCK 1202 =? 0 = DISABLE IR.LOCK=ENABLE See Menu -> Advanced Lock 1 = ENABLE IR.LOCK:ENABLE Settings -> System Settings -> IR Remote Lock. Planar UltraRes X Series RS232 User Manual Page | 27 020-1397-00B...
  • Page 28 MAC Address. MEMC MEMC.LEVEL 1503 =?+- 0 = OFF MEMC.LEVEL=LOW See Main -> Advanced MEMC.LEVEL:LOW 1 = LOW Settings -> System 2 = MEDIUM Settings -> MEMC. 3 = HIGH Planar UltraRes X Series RS232 User Manual Page | 28 020-1397-00B...
  • Page 29 TCP port 52 and UDP port 52. Network NETWORK.PING 1211 = String NETWORK.PING="www.google.com Attempts to ping the Ping " selected network NETWORK.PING:"SUCCESS" address. Response string will either be “SUCCESS” or “FAILED”. Planar UltraRes X Series RS232 User Manual Page | 29 020-1397-00B...
  • Page 30 Op 2: Recipients List NOTIFICATION.EMAIL(SOURCE.D OCCURRED String ETECTED):ENABLE "test@planar.com" "Your custom 2 = SOURCE. DETECTED Op 3: User Message message here" 3 = SOURCE.LOST String 4 = SOURCE. SELECTED Planar UltraRes X Series RS232 User Manual Page | 30 020-1397-00B...
  • Page 31 Power Down Check. Check OPS.PRESENT 1905 ? 0 = FALSE OPS.PRESENT? Indicates whether an Present 1 = TRUE OPS.PRESENT=TRUE OPS module is currently populated in the display’s OPS slot. Planar UltraRes X Series RS232 User Manual Page | 31 020-1397-00B...
  • Page 32 OSD.TRANSPAR 1303 =?+- OSD.TRANSPARENCY=3 See Main -> Advanced Transpar- ENCY OSD.TRANSPARENCY:3 Settings -> Menus and ency Messages -> OSD Transparency. Planar UltraRes X Series RS232 User Manual Page | 32 020-1397-00B...
  • Page 33 Power submenu. 2 = Fast.Startup Power On POWER.ON. 1420 =?+- Unsigned fixed point POWER.ON.DELAY=1.4 See Main -> Advanced Delay DELAY 0.0-10.0 POWER.ON.DELAY:1.4 Settings -> Power -> Power On Delay. Planar UltraRes X Series RS232 User Manual Page | 33 020-1397-00B...
  • Page 34 PRESET.DELETE(4) Delete. PRESET.DELETE(4)@ACK Preset Full PRESET.FULL 2004 ? Preset Number 0 = NO PRESET.FULL(4)? Indicates whether data 1-1000 1 = YES PRESET.FULL(4)=YES has been saved in the selected preset. Planar UltraRes X Series RS232 User Manual Page | 34 020-1397-00B...
  • Page 35 Preset Max PRESET.MAX 2007 ? Unsigned Integer PRESET.MAX? Displays the number of PRESET.MAX:34 the highest saved preset. Planar UltraRes X Series RS232 User Manual Page | 35 020-1397-00B...
  • Page 36 REVERT.IMAGE.SETTINGS(ZONE. -> Revert to Defaults. Settings 1 = ZONE.2 2 = ZONE.3 REVERT.IMAGE.SETTINGS(ZONE. 3 = ZONE.4 1)@ACK 255 = CURRENT [None = CURRENT] [For the current zone] REVERT.IMAGE.SETTINGS REVERT.IMAGE.SETTINGS@ACK Planar UltraRes X Series RS232 User Manual Page | 36 020-1397-00B...
  • Page 37 See Main -> Advanced Action ACTION 1-20 1 = TURN.OFF Turn On] Settings -> Schedule -> 2 = RECALL SCHEDULE.ACTION(3)=TURN.ON Set Event 1-20 -> Action. 3 = PANEL. SCHEDULE.ACTION(3):TURN.ON BRIGHTNESS Planar UltraRes X Series RS232 User Manual Page | 37 020-1397-00B...
  • Page 38 - "OPS" is the serial connection on the OPS connector Serial SERIAL.NUMBER 2303 ? String SERIAL.NUMBER? See Main -> Information Number SERIAL.NUMBER="ABCD1234" -> System Information -> Serial Number. Planar UltraRes X Series RS232 User Manual Page | 38 020-1397-00B...
  • Page 39 Software -> Notifications Address NETWORK.SMTP.FROM:"myemail -> Email From Address. address@comcast.net" SMTP NETWORK. 1225 =? String NETWORK.SMTP.PASSWORD= See Remote Monitoring Password SMTP. "mypassword" Software -> Notifications PASSWORD NETWORK.SMTP.PASSWORD: -> Password. "mypassword" Planar UltraRes X Series RS232 User Manual Page | 39 020-1397-00B...
  • Page 40 2 = HDMI.2 SOURCE.SELECT(ZONE.1):HDMI.1 3 = ZONE.4 3 = HDMI.3 254 = ALL 4 = HDMI.4 [For the current zone] 255 = CURRENT 5 = DP SOURCE.SELECT=HDMI.2 [None = CURRENT] SOURCE.SELECT:HDMI.2 Planar UltraRes X Series RS232 User Manual Page | 40 020-1397-00B...
  • Page 41 [None = Current (for value] Settings -> Network -> reads only] IPV4.NETMASK? Subnet Mask. [None = STATIC (for IPV4.NETMASK:"255.255.254.0" writes only] [Write the subnet mask for static IP] IPV4.NETMASK(STATIC)="255.255. 255.0" IPV4.NETMASK(STATIC):"255.255. 255.0" Planar UltraRes X Series RS232 User Manual Page | 41 020-1397-00B...
  • Page 42 SMTP.TEST 0 = POWER.STATE. LOST) Software -> Notifications CHANGED NETWORK.SMTP.TEST(SOURCE. -> Test Email. 1 = ERROR. LOST)@ACK OCCURRED 2 = SOURCE. DETECTED 3 = SOURCE.LOST 4 = SOURCE. SELECTED Planar UltraRes X Series RS232 User Manual Page | 42 020-1397-00B...
  • Page 43 1 = TUE TIME.DAY:TUE Settings -> Schedule -> 2 = WED Set Date and Time -> 3 = THU Day. 4 = FRI 5 = SAT 6 = SUN Planar UltraRes X Series RS232 User Manual Page | 43 020-1397-00B...
  • Page 44 1 = ZONE.2 TINT(ZONE.1):50 2 = ZONE.3 3 = ZONE.4 [For the current zone] 253 = ALL.INPUT TINT=55 254 = ALL TINT:55 254 = ALL.ZONE 255 = CURRENT [None = CURRENT] Planar UltraRes X Series RS232 User Manual Page | 44 020-1397-00B...
  • Page 45 5 = SRC.INFO.VP 6 = VERSION.HDMI 7 = VERSION.FRC 8 = PKG.DATE 9 = PKG.VERSION 10 = VERSION.SPM Volume AUDIO.VOLUME 1006 =?+- 0-100 AUDIO.VOLUME=50 See Main -> Audio -> AUDIO.VOLUME:50 Volume. Planar UltraRes X Series RS232 User Manual Page | 45 020-1397-00B...
  • Page 46 5 = FRAME. ENABLE 6 = FRAME. WIDTH 7 = FRAME. HEIGHT PASSWORD.SET=”123456” Web UI PASSWORD.SET 2405 =?+- String Used to set the Admin Password password for the Web UI. Planar UltraRes X Series RS232 User Manual Page | 46 020-1397-00B...

  • Page 47: Current Zone Layout

    Zone 1 T.M.2 Triple View Side-by-Side Zone 2 T.M.3 Triple View Side-by-Side Zone 3 Quad View Zone 1 Quad View Zone 2 Quad View Zone 3 Quad View Zone 4 Planar UltraRes X Series RS232 User Manual Page | 47 020-1397-00B...

  • Page 48: Key

    Selects the top line in the current menu PRESETS PRESETS Opens the Presets menu PRESET1 PRESET 1 Applies Preset 1 PRESET2 PRESET 2 Applies Preset 2 PRESET3 PRESET 3 Applies Preset 3 Planar UltraRes X Series RS232 User Manual Page | 48 020-1397-00B...
  • Page 49 WALL VIDEO WALL Opens the Tiling menu COLOR COLOR Not used MISC MISC Opens the Image Information menu  ARROW.LEFT Not used  ARROW.RIGHT Not used STAR.STAR Not used Planar UltraRes X Series RS232 User Manual Page | 49 020-1397-00B...

  • Page 50: Timezone

    UTCM0430.CARACAS (UTC-04:30) Caracas UTCM0400.ASUNCION (UTC-04:00) Asuncion UTCM0400.ATLANTIC.TIME.CANADA (UTC-04:00) Atlantic Time (Canada) UTCM0400.CUIABA (UTC-04:00) Cuiaba UTCM0400.GEORGETOWN.LA.PAZ.MANAUS.SAN. (UTC-04:00) Georgetown, La Paz, Manaus, JUAN San Juan UTCM0330.NEWFOUNDLAND (UTC-03:30) Newfoundland UTCM0300.BRASILIA (UTC-03:00) Brasilia Planar UltraRes X Series RS232 User Manual Page | 50 020-1397-00B...
  • Page 51 (UTC+01:00) Sarajevo, Skopje, Warsaw, Zagreb UTCP0100.WEST.CENTRAL.AFRICA (UTC+01:00) West Central Africa UTCP0100.WINDHOEK (UTC+01:00) Windhoek UTCP0200.AMMAN (UTC+02:00) Amman UTCP0200.ATHENS.BUCHAREST (UTC+02:00) Athens, Bucharest UTCP0200.BEIRUT (UTC+02:00) Beirut UTCP0200.CAIRO (UTC+02:00) Cairo UTCP0200.DAMASCUS (UTC+02:00) Damascus Planar UltraRes X Series RS232 User Manual Page | 51 020-1397-00B...
  • Page 52 UTCP0400.YEREVAN (UTC+04:00) Yerevan UTCP0430.KABUL (UTC+04:30) Kabul UTCP0500.ASHGABAT.TASHKENT (UTC+05:00) Tashkent UTCP0500.EKATERINBURG.RTZ.4 (UTC+05:00) Ekaterinburg (RTZ 4) UTCP0500.ISLAMABAD.KARACHI (UTC+05:00) Islamabad, Karachi UTCP0530.CHENNAI.KOLKATA.MUMBAI.NEW.DELHI (UTC+05:30) Chennai, Kolkata, Mumbai, New Delhi UTCP0530.SRI.JAYAWARDENEPURA (UTC+05:30) Sri Jayawardenepura Planar UltraRes X Series RS232 User Manual Page | 52 020-1397-00B...
  • Page 53 UTCP1000.BRISBANE (UTC+10:00) Brisbane UTCP1000.CANBERRA.MELBOURNE.SYDNEY (UTC+10:00) Canberra, Melbourne, Sydney UTCP1000.GUAM.PORT.MORESBY (UTC+10:00) Guam, Port Moresby UTCP1000.HOBART (UTC+10:00) Hobart UTCP1000.MAGADAN (UTC+10:00) Magadan UTCP1000.VLADIVOSTOK.MAGADAN.RTZ.9 (UTC+11:00) Vladivostok (RTZ 9) UTCP1100.CHOKURDAKH.RTZ.10 (UTC+11:00) Chokurdakh (RTZ 10) Planar UltraRes X Series RS232 User Manual Page | 53 020-1397-00B...
  • Page 54 (UTC+12:00) Anadyr, Petropavlovsk- KAMCHATSKY.RTZ.11 Kamchatsky (RTZ 11) UTCP1200.AUCKLAND.WELLINGTON (UTC+12:00) Auckland, Wellington UTCP1200.COORDINATED.UNIVERSAL.TIMEP12 (UTC+12:00) Coordinated Universal Time +12 UTCP1200.FIJI (UTC+12:00) Fiji UTCP1300.NUKU.ALOFA (UTC+13:00) Nuku'alofa UTCP1300.SAMOA (UTC+13:00) Samoa UTCP1400.KIRITIMATI.ISLAND (UTC+14:00) Kiritimati Island Planar UltraRes X Series RS232 User Manual Page | 54 020-1397-00B...

  • Page 55: Sending Serial Commands Via Usb

    If you’re unsure whether your machine is 32-bit or 64-bit, try both installation programs. If the selected program is for a different architecture, the installer will inform you to use the other installation program. 1. When the Planar USB Driver Installer page opens, click “Next”. Planar UltraRes X Series RS232 User Manual Page | 55...
  • Page 56 2. The USB drivers will be automatically installed. 3. When the installation completes, click “Finish”. The USB driver installation process is now complete. Planar UltraRes X Series RS232 User Manual Page | 56 020-1397-00B...
  • Page 57 USB drivers. The USB flash drive in your accessory kit contains the USB drivers for manual installation. 1. Plug in the USB cable to your computer and to the Planar UltraRes X Series panel. 2. Windows will detect the new hardware and attempt to install the drivers on its own. If you do not see the “Installing device driver software”...
  • Page 58 5. Open the Start menu and select “Control Panel”. 6. Select Hardware and Sound. In the following menu, under Devices and Printers, select “Device Manager”. Planar UltraRes X Series RS232 User Manual Page | 58 020-1397-00B...
  • Page 59 7. In the Device Manager, there will be a “Planar UltraRes” item in the “Other Devices” section. Right-click on Planar UltraRes and select “Update Driver Software”. 8. Follow the steps defined in the Update Driver Software wizard as follows. a. On the initial screen, select “Browse my computer for driver software”.
  • Page 60 Make sure the “Include subfolders” checkbox is checked. The USB drivers are included on the USB flash drive in the accessory kit; they can also be obtained from http://www.planar.com/support. Use the “Browse” button to locate the directory where the USB drivers are located. Click “Next”.

  • Page 61: Using The Planar Ultrares X Series Usb Connection

    When the installation completes, click “Close”. The USB driver installation process is now complete. Using the Planar UltraRes X Series USB Connection Once the USB drivers are installed, the PC will recognize the USB-B connection as a regular serial port. The USB-B connection will appear in the COM port list of each serial terminal program.

  • Page 62: Sending Rs232 Commands Via Tcp Or Udp

    Notice the following in the TCP example below using Tera Term: • The IP address is 10.15.0.75 • Port 57 is selected • Service is set to “Other” to indicate that TCP is being used without Telnet or SSH Planar UltraRes X Series RS232 User Manual Page | 62 020-1397-00B...
  • Page 63 “444953504C41592E504F5745523D310D” in the Send box is hex for “DISPLAY.POWER=1” Note: Most UDP terminal programs won’t automatically send the [CR] at the end of the command, so the hex command is used to do this manually. Planar UltraRes X Series RS232 User Manual Page | 63 020-1397-00B...
