Wiring Diagrams; Power Supply; Output Relays (Out1 - 4) - Inner Range Inception Installation Manual

Inner Range Inception Security Controller

Power Supply

OPTION 1.
Supplied 24V PSU and Battery.
OPTION 2.
Integriti 3A/8A PSU
or third party battery-backed
power supply.
Output Relays (OUT1 – 4)
Lock or Solenoid Control. An External Power Supply is recommended to power inductive loads
to protect the controller, provide longer battery backup & minimise the possibility of earth loops.
Non-Inductive Loads. e.g. 12V Sounder, Beeper, Strobe, LED, etc. The Inception power
supply may be used to power these devices. Check that the additional current required by these
devices does not cause the Inception power supply output limits to be exceeded.
© 2016 - 2020. Inner Range Pty Ltd.

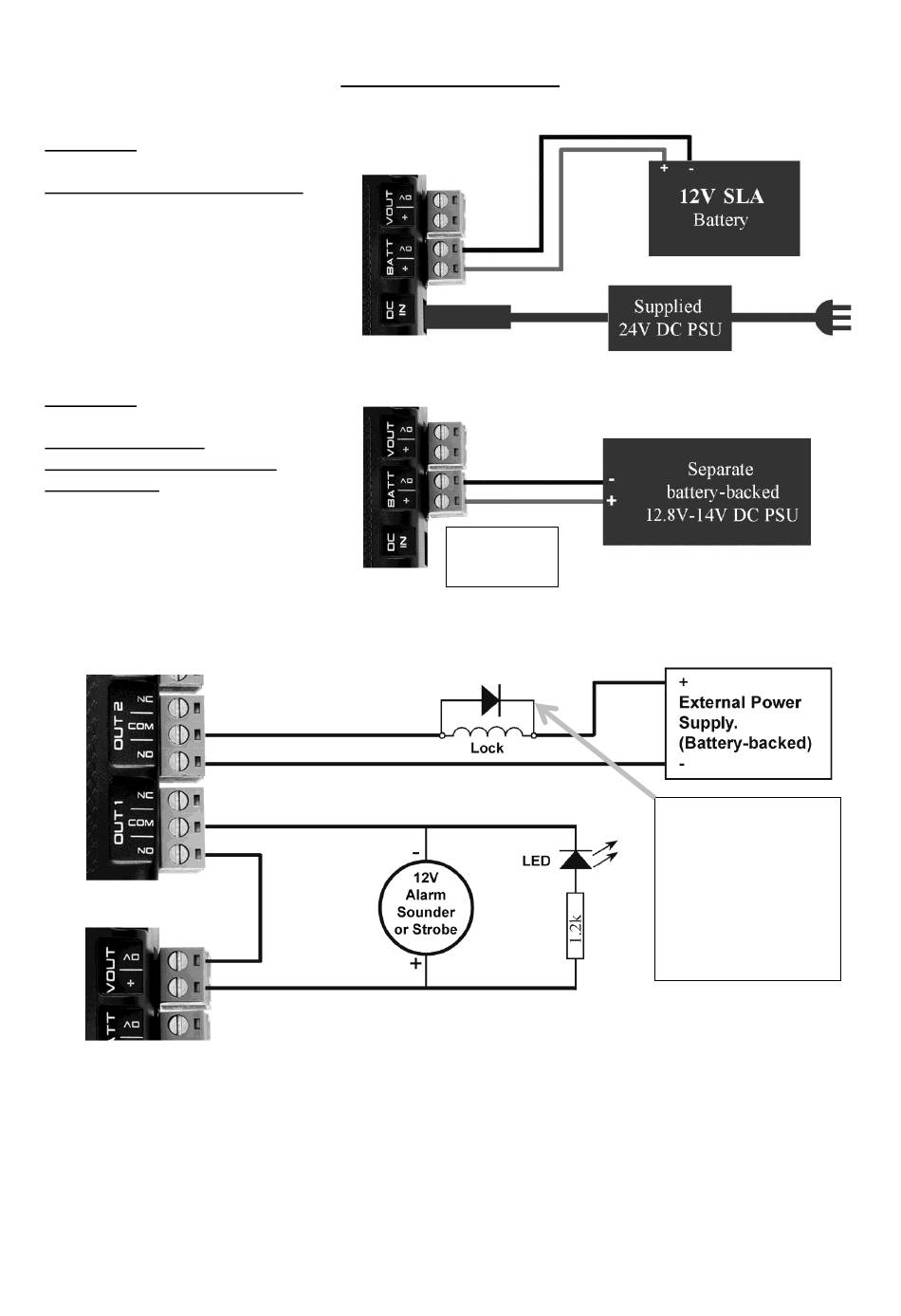

WIRING DIAGRAMS

"DC IN" not
connected.
11
Installation Manual. Rev. 4.0
The clamp diode
supplied in the
accessory kit must
be fitted across
inductive loads (e.g.
door lock). Cathode
(bar) to +ve.
