Inner Range Inception Security Controller
Installation Manual. Rev. 6.0

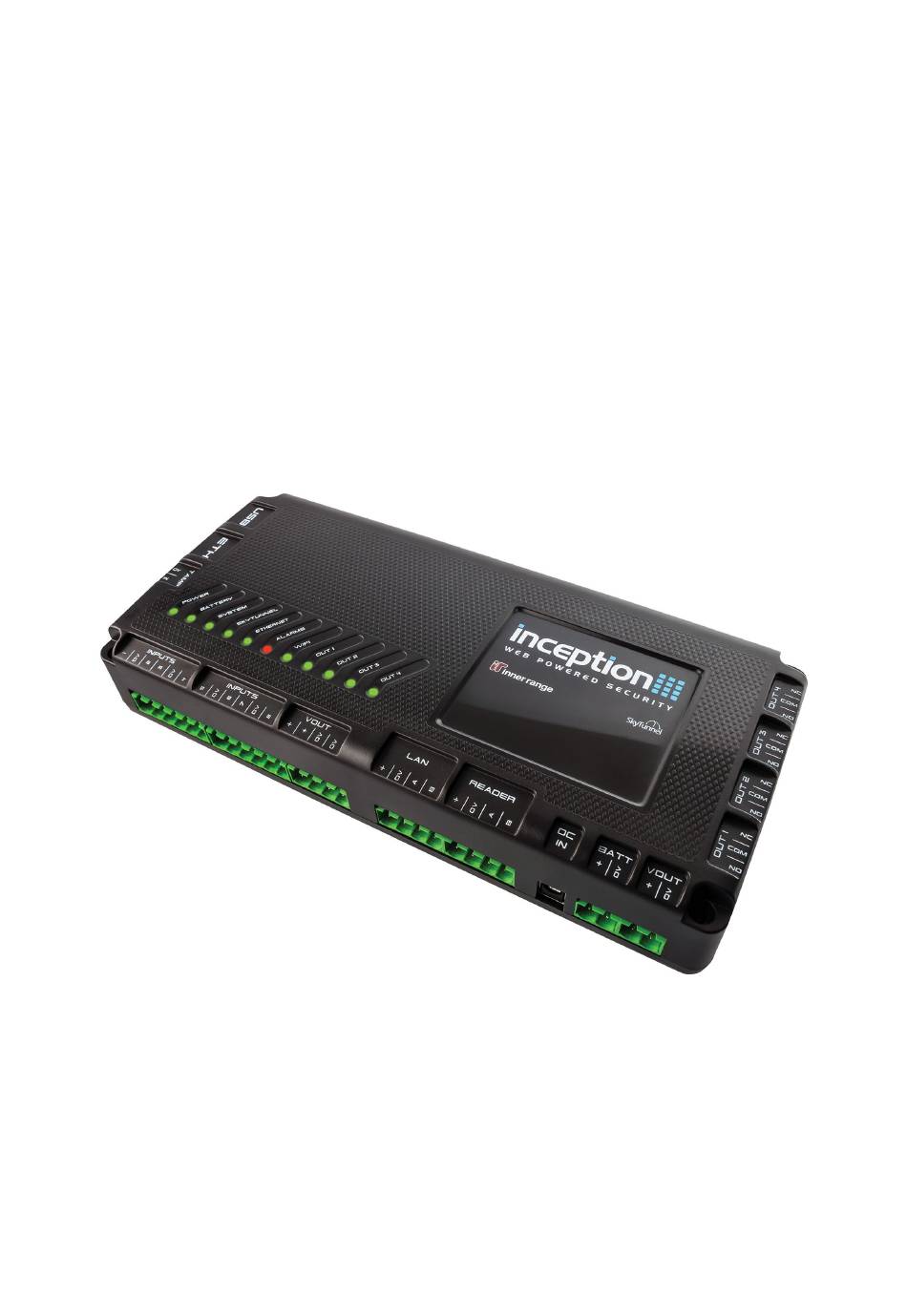

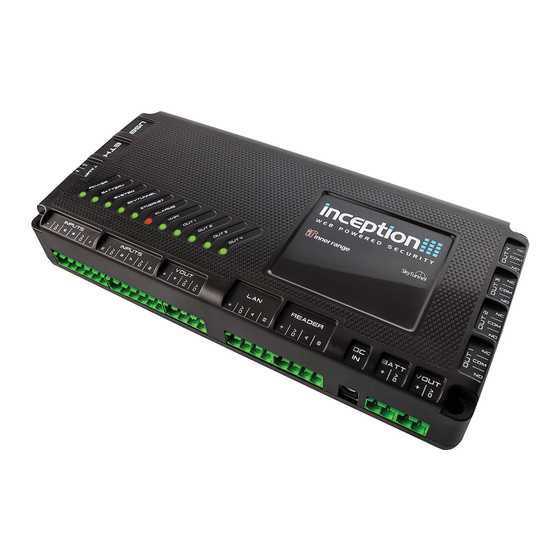

Inception Controller
by Inner Range
P/N: 996300NA / 996300NAPS
V6 Installation Manual
North America
(Current to Firmware V6.0 and Controller PCB Rev. F)
BEFORE COMMENCING INSTALLATION
PLEASE READ THE IMPORTANT NOTES ON PAGE 3
AND THE REGULATORY INFORMATION ON PAGES 4 & 5.
Document P/No: 636300NA
1
© 2016 - 2023. Inner Range Pty Ltd.
www.innerrange.com
Advertisement
Table of Contents
Related Manuals for Inner Range 996300NAPS
Summary of Contents for Inner Range 996300NAPS
- Page 1 (Current to Firmware V6.0 and Controller PCB Rev. F) BEFORE COMMENCING INSTALLATION PLEASE READ THE IMPORTANT NOTES ON PAGE 3 AND THE REGULATORY INFORMATION ON PAGES 4 & 5. Document P/No: 636300NA © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com...
-
Page 2: Table Of Contents
Report Mapping ......................... 18 TROUBLESHOOTING.......................19 PROGRAMMING & MAINTENANCE................20 Programming and Help ......................20 Firmware update ........................20 Reboot/Default the Inception Controller..................21 Specifications ........................22 Power supply outputs....................... Additional Resources ......................24 © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com... -
Page 3: Important Notes
Any Conduit entry points that have had the knockout removed but are not used, must also be resealed using Conduit Plugs. © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com... -
Page 4: Regulatory Information
In Manage Users > Credentials, assign the appropriate ‘Terminal Profile‘ to each User who has a Security PIN. Entry and Exit Delay: The Entry & Exit delay settings are programmed separately for each Area. The value programmed for Entry or Exit delay must not exceed 60 seconds. © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com... - Page 5 • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Any changes or modifications not expressly approved by Inner Range Pty Ltd could void the user’s authority to operate the equipment.
-
Page 6: Introduction
LAN port for system expansion via RS-485. • • Reader port for connection of up to 8 x Inner Range SIFER Readers, SIFER-Keypad readers or 3 Party OSDP Readers. • DC power input for connection to the Inception power supply. -
Page 7: Parts List
110mA (Lock Relays On) UniBus 16 Floor Lift I/F Board † 996540PCB&K V1.0.0 or later 310mA (All Relays On) LAN Ethernet Bridge. Inception 996088PCB&K V1.1.0 or later 60mA Controller Firmware V5.2.0 or later recommended. © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com... -
Page 8: Installation
8-Zone LAN Expander ILAM Up to 6 UniBus boards in total may be connected to a host LAN Module. A suitable Inner Range Smart Power Supply must be connected to the host Module when UniBus boards are used. Refer to the relevant host Module & UniBus board Installation Manuals for full details. -
Page 9: Service Mode
Note that the signal strength value for portable transmitters (RF fobs) is only available in the Inception firmware release V2.0.2 or later. Contact your Inception dealer for details of additional Wireless devices that may be supported by Inception in your region. © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com... -
Page 10: Installation And Safety Instructions
“Backup Database” feature to ensure that a copy of the controller programming is saved. 11. CAUTION! FOR CONTINUED PROTECTION AGAINST THE RISK OF FIRE, REPLACE WITH ONLY THE SAME TYPE AND RATING OF FUSE. DISCONNECT POWER BEFORE REPLACING THE FUSE OR SERVICING © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com... -
Page 11: Led Status Indicators
OUT 1 is On (i.e. COM & NO connected) OUT 2 ON Green OUT 2 is On OUT 3 ON Green OUT 3 is On OUT 4 ON Green OUT 4 is On © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com... -
Page 12: Wiring Diagrams
Non-Inductive Loads. e.g. 12V Sounder, Beeper, Strobe, LED, etc. The Inception power supply may be used to power these devices. Check that the additional current required by these devices does not cause the Inception power supply output limits to be exceeded. © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com... -
Page 13: Zone Inputs
Please check the manufacturer’s documentation. Example: Reed Switch. Tamper Input. For tamper switches provided with the recommended enclosures, select “Open Circuit Secure” in the Controller hardware settings in the browser. © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com... -
Page 14: Lan & Reader Ports
9. A Multimeter may be used to check that the LAN or Reader port will operate reliably. Download the “Inception LAN Installation Guide” from the Inner Range website for details. See ‘Additional Resources’ at the rear of this manual. -
Page 15: Lan And Reader Installation Diagrams
The characters in square brackets reference the various points in the lists on the previous page. LAN wiring detail [6] Shielded, twin, twisted-pair data cable LAN network overview 6500 feet max. / 4900 feet max. © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com... - Page 16 [I] Any Reader more than 320 feet (100m) from the Controller may require [III] a separate local battery-backed power supply &/or heavier gauge cable. 3200 feet max. / [II] 3200 feet max. © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com...
-
Page 17: Usb Port
The LAN Hub is powered from the Inception controller ‘VOUT’ or from a separate battery-backed 12V power supply. e.g. Integriti 3A Power Supply. NOTE: If ‘VOUT’ is used, then the same ‘VOUT’ connector should not be used to power any device outside the enclosure. © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com... -
Page 18: Alarm Reporting
SkyTunnel server it is delivered to a Multipath-IP equipped monitoring station. SkyTunnel is a cloud-based service provided by Inner Range to deliver hassle free connections of security system hardware and software over the internet. Once the connection is established, set up of the alarm monitoring is quick and easy using the SkyTunnel connection service. -
Page 19: Troubleshooting
Ensure the correct Wi-Fi Connection mode Adapter is plugged in. or the adapter is not an type is selected. Ensure that an authorized Inner Range approved Inception Wi-Fi Inception Wi-Fi Adapter is connected and is supported. Adapter or is not supported Upgrade firmware to V5.0.0 or later. -
Page 20: Programming & Maintenance
Use the “Update Controller” or “Update Modules” selections in the Firmware Update options under “System”. See screen below. Firmware update files are available in the Technician Downloads section of the Inner Range website. © 2016 - 2023. Inner Range Pty Ltd. -
Page 21: Reboot/Default The Inception Controller
See screen image below. Note: If reset using this option, Review and System Log will not be removed. To remove these items use the Reset button option instead. Factory Default option © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com... -
Page 22: Specifications
Zone inputs: Relay outputs: 4 (‘OUT1-4’) Relay contact rating: 5 Amps. 30v DC or AC. See Note 3 below. USB version: Alarm Reporting Formats: Contact ID. IR-fast. (via T4000 or SkyTunnel) © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com... -
Page 23: Power Supply Outputs
13.4 V DC. +/-150Mv 750 milliAmps 1.5 Amps 4-pin connector near Inputs. READER +: 13.4 V DC. +/-150mV 1 Amp 1.1 Amps Maximum combined peak 2.5 Amps 3 Amps current from these 5 outputs: © 2016 - 2023. Inner Range Pty Ltd. www.innerrange.com... -
Page 24: Additional Resources
Documentation. (From the ‘Training & Support’ menu on the website) Product Information and User Manuals. (Select the ‘User Manuals-Forms-Brochures’ page) • Inception Colour Brochure (12 pages) A Beginners Guide to Inner Range Systems. (Inner Range 101 Guide) Inception Controller Data Sheet. Inception User Manual. •...
