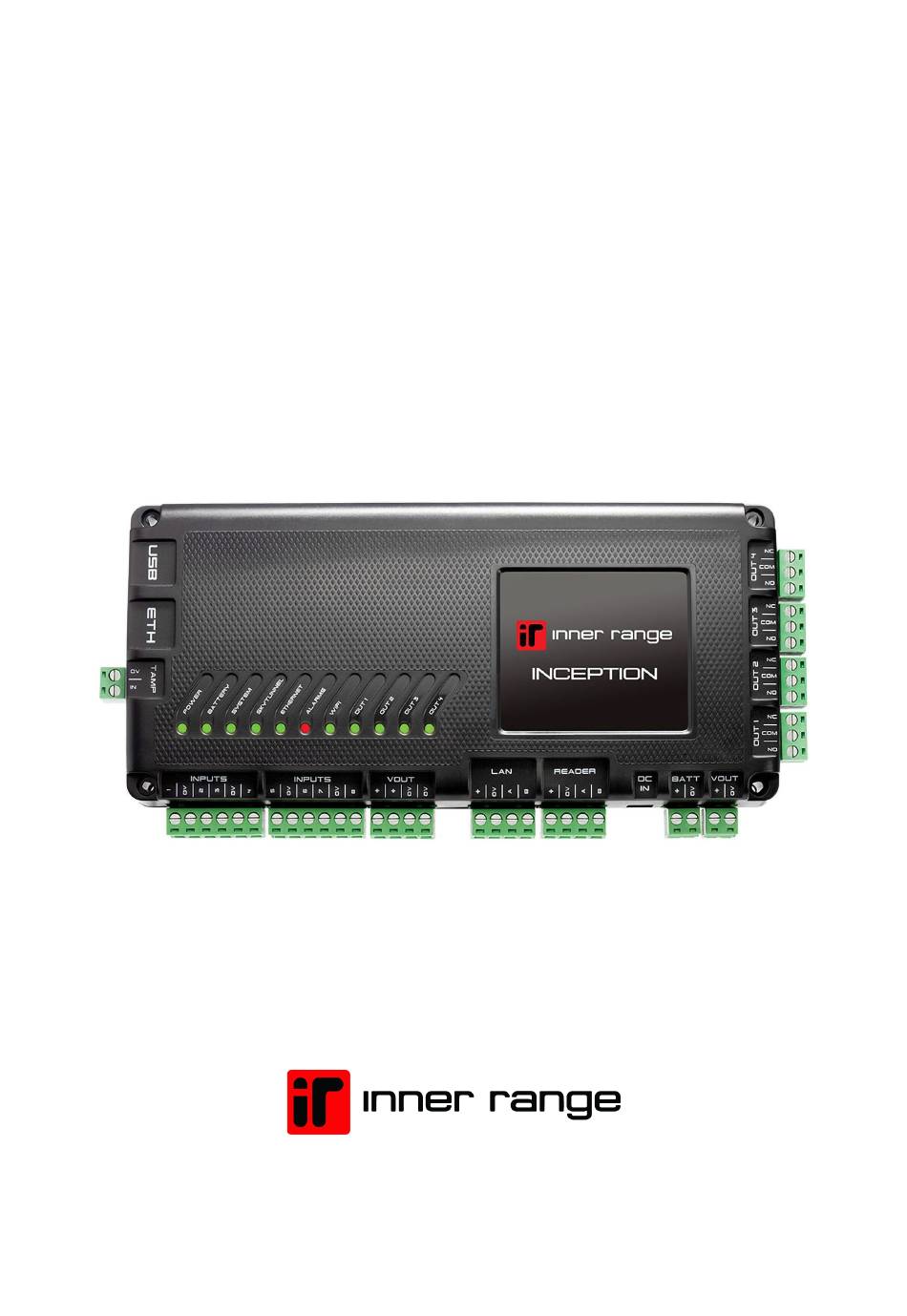

Inner Range Inception Security Controller
Installation Manual. Rev. 6.20

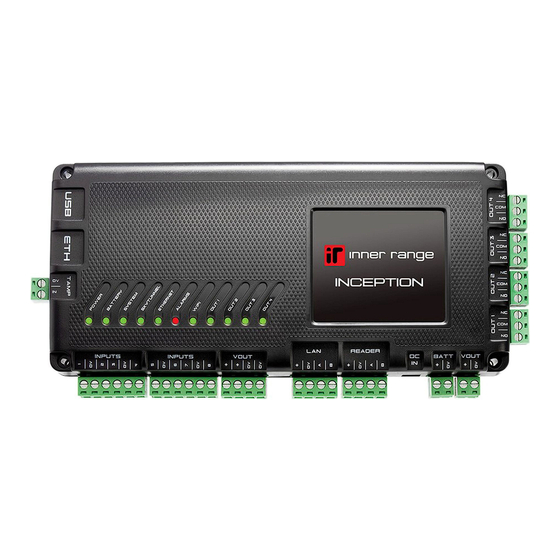

Inception Controller
by Inner Range
P/N: 996300AU / 996300EU / 996300ME
V6 Installation Manual
(Current to Firmware V6.2 and Controller PCB Rev. F)
BEFORE COMMENCING INSTALLATION
PLEASE READ THE IMPORTANT NOTES ON PAGE 3.
Document P/No: 636300
1
© 2016 - 2024. Inner Range Pty Ltd.
www.innerrange.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Inner Range V6
Summary of Contents for Inner Range V6
- Page 1 Inception Controller by Inner Range P/N: 996300AU / 996300EU / 996300ME V6 Installation Manual (Current to Firmware V6.2 and Controller PCB Rev. F) BEFORE COMMENCING INSTALLATION PLEASE READ THE IMPORTANT NOTES ON PAGE 3. Document P/No: 636300 © 2016 - 2024. Inner Range Pty Ltd.
-
Page 2: Table Of Contents
Report Mapping ......................... 18 TROUBLESHOOTING.......................19 PROGRAMMING & MAINTENANCE................20 Programming and Help ......................20 Firmware update ........................20 Reboot/Default the Inception Controller..................21 Specifications ........................22 Power supply outputs....................... Additional Resources ......................24 © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com... -
Page 3: Important Notes
See the schematic diagram and examples under “Zone Inputs” in the ‘WIRING DIAGRAMS’ section of this manual. 5. Reporting. Inception does not provide an on-board dialer port for alarm reporting via PSTN. © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com... -
Page 4: Release Notes
• LAN port for system expansion via RS-485. • Reader port for connection of up to 8 x Inner Range SIFER Readers, SIFER-Keypad readers, Mobile Access Readers or 3 Party OSDP Readers. DC power input for connection to the Inception power supply. -
Page 5: Introduction
Inception Firmware prior to V5.0 only supports 512 Inputs/Outputs/Floors. ‡ 256 Wiegand readers (In & Out Readers) requires a combination of up to 127 SLAMs (i.e. 1 per door) and up to 8 OSDP<>Wiegand Converters. © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com... -
Page 6: Parts List
USB 12V Mini Hub 999032 20-40mA (See ‘Specifications’ section) RS485 LAN/Reader Surge Diverter 995041 Integriti 3A battery-backed Power Supply 996091 Integriti 8A battery-backed Power Supply 996092 Replacement 24VDC Adapter (Australia) 999066AU © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com... -
Page 7: Compatible Expansion Modules
8-Zone LAN Expander ILAM Up to 6 UniBus boards in total may be connected to a host LAN Module. A suitable Inner Range Smart Power Supply must be connected to the host Module when UniBus boards are used. Refer to the relevant host Module & UniBus board Installation Manuals for full details. -
Page 8: Installation
In addition to the documentation provided with each Inception Controller, the downloadable document “Inner Range System Design & Installation Guide” provides a range of general system design & Installation guidelines including additional information on equipment location, power supplies & batteries, wire &... -
Page 9: Wireless Detection Devices
Note that the signal strength value for portable transmitters (RF fobs) is only available in the Inception firmware release V2.0.2 or later. Contact your Inception dealer for details of additional Wireless devices that may be supported by Inception in your region. © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com... -
Page 10: Installation Procedure
PC. You must use the “Backup Database” feature to ensure that a copy of the controller programming is saved. © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com... -
Page 11: Led Status Indicators
OUT 1 is On (i.e. COM & NO connected) OUT 2 ON Green OUT 2 is On OUT 3 ON Green OUT 3 is On OUT 4 ON Green OUT 4 is On © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com... -
Page 12: Wiring Diagrams
Non-Inductive Loads. e.g. 12V Sounder, Beeper, Strobe, LED, etc. The Inception power supply may be used to power these devices. Check that the additional current required by these devices does not cause the Inception power supply output limits to be exceeded. © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com... -
Page 13: Zone Inputs
Please check the manufacturer’s documentation. Example: Reed Switch. Tamper Input. For tamper switches provided with the recommended enclosures, select “Open Circuit Secure” in the Controller hardware settings in the browser. © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com... -
Page 14: Lan & Reader Ports
7. Do not use the cable shield as the 0V connection. Shields should be terminated to a protective earth or 0V at one end of the cable. 8. An Inner Range RS485 LAN/Reader Surge Diverter (see ‘Accessories List’) installed at one or more appropriate points on an RS485 network will provide additional system protection, particularly on long runs of LAN cabling and on multi-building installations. -
Page 15: Lan And Reader Installation Diagrams
The installation requirements are illustrated in the drawings below and on the following page. The characters in square brackets reference the various points in the lists on the previous page. LAN wiring detail [6] Shielded, twin, twisted-pair data cable LAN network overview © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com... - Page 16 OSDP Reader product installation documentation. SIFER, SIFER-Keypad or OSDP Reader connection overview [I] Any Reader more than 100m from the Controller may require a [III] separate local battery-backed power supply &/or heavier gauge cable. [II] © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com...
-
Page 17: Usb Port
The LAN Hub is powered from the Inception controller ‘VOUT’ or from a separate battery-backed 12V power supply. e.g. Integriti 3A Power Supply. NOTE: If ‘VOUT’ is used, then the same ‘VOUT’ connector should not be used to power any device outside the enclosure. © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com... -
Page 18: Alarm Reporting
SkyTunnel server are delivered to a Multipath-IP equipped monitoring station. SkyTunnel is a cloud-based service provided by Inner Range to deliver hassle free connections of security system hardware and software over the internet. Once the connection is established, set up of the alarm monitoring is quick and easy using the SkyTunnel connection service.*... -
Page 19: Troubleshooting
The device requires the Inputs configuration page, select the input and set ‘Swap active & tamper states to be Active States’ to “Swap Active & Tamper States”. flipped. © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com... -
Page 20: Programming & Maintenance
Use the “Update Controller” or “Update Modules” selections in the Firmware Update options under “System”. See screen below. Firmware update files are available in the Technician Downloads section of the Inner Range website. © 2016 - 2024. Inner Range Pty Ltd. -
Page 21: Reboot/Default The Inception Controller
See screen image below. Note: If reset using this option, Review and System Log will not be removed. To remove these items use the Reset button option instead. Factory Default option © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com... -
Page 22: Specifications
Zone inputs: Relay outputs: 4 (‘OUT1-4’) Relay contact rating: 5 Amps. 30v DC or AC. See Note 3 below. USB version: Alarm Reporting Formats: Contact ID. IR-fast. (via T4000 or SkyTunnel) © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com... -
Page 23: Power Supply Outputs
13.4 V DC. +/-150Mv 750 milliAmps 1.5 Amps 4-pin connector near Inputs. READER +: 13.4 V DC. +/-150mV 1 Amp 1.1 Amps Maximum combined peak 2.5 Amps 3 Amps current from these 5 outputs: © 2016 - 2024. Inner Range Pty Ltd. www.innerrange.com... -
Page 24: Additional Resources
Use the ‘Products’ menu for downloads including the documentation listed below and firmware updates. • Use the ‘Training’ menu for information on Inner Range certified training. Documentation. (From the ‘Products’ menu on the website) Product Information and User Manuals. (Select the product, then the “Documents” link) •...
