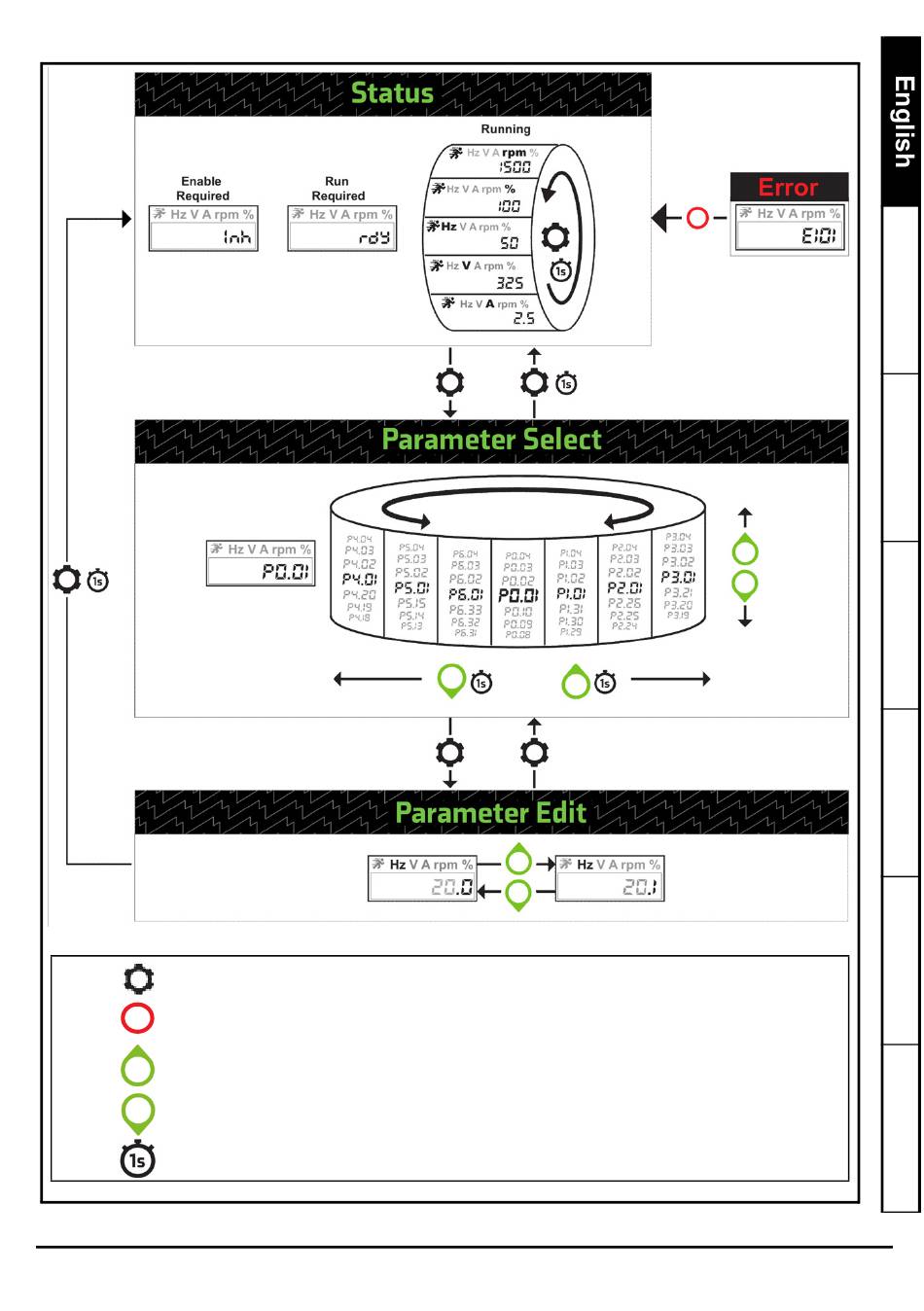

Figure 1-4 Using the keypad
Commander S100 Step by Step Guide
Used to navigate through the drive's parameter settings and rotate
Settings Key
displayed parameters when the drive is running.
Used to reset the drive if there is an error and to stop the drive
Stop / Reset Key
running if enable/run configuration is set appropriately.
UP / DOWN Used Individually to increase or decrease edit-able values shown
Keys on the drive display
UP & DOWN When both keys are pressed together, they provide the drive with a
Keys latched RUN signal if enable/run configuration is set appropriately.
On the diagram above this indicates that the key should be pressed
Press and Hold
and held for 1 second opposed to a normal short press.
