Heater Hose installation.

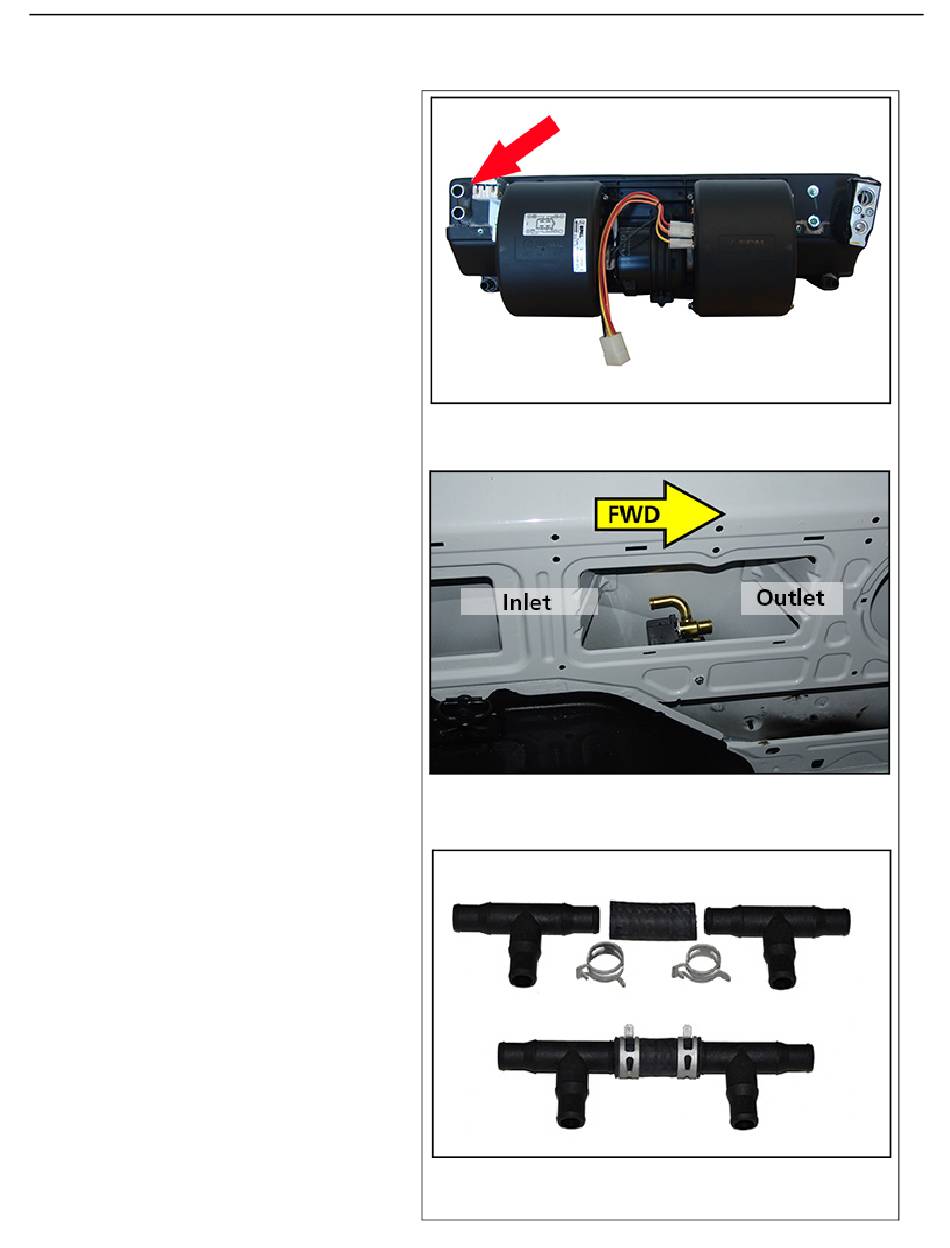

44.Using a short length of hose, install a bleeder
valve to the return (upper) port on the London
HVAC unit (26, 73, 77).
45. Route the coolant hose from the bleeder
valve to the coolant valve inlet (upper) port
(73). Route the coolant hose from the outlet
port through the hole in the floor and into
the engine compartment.
NOTE: This step applies only if factory-sup-
plied up-fitter ports are not being utilized.
NOTE:NOTE: This is a parallel connection.
Do not restrict or obstruct the coolant flow.
NOTE: In some cases the two "T" fittings
may not be mounted immediately next to
one another.
46. Install the two "T" fittings (75, 73, 26) in the
heater core return hose as shown in the
diagram. Connect the coolant return hose to the
"bottom" T fitting.
37
