NOTE: Alternate method: drill two 2-inch
holes in the location shown and install edge
trim to protect against chaffing.

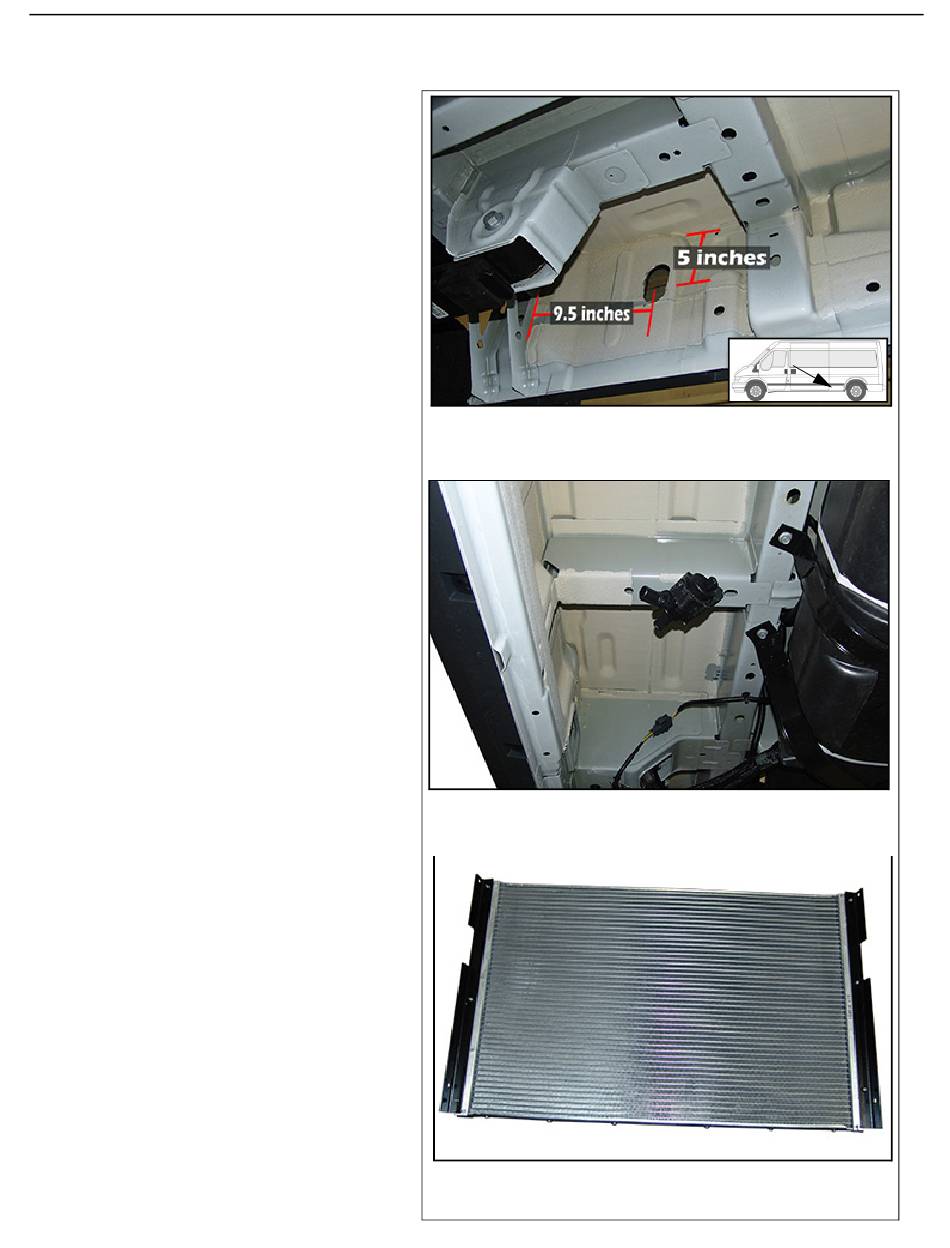

7. Drill two 1 3/4 inch (45 millimeters) holes in
front of the left-rear wheel, similar to
previously done. Install edge protection
around the cut hole and protect against
chaffing.
8. Using the 1/4 in. X 1 1/2 in. self-tapping
screw (67) and coolant pump mount, secure
the coolant pump to the chassis outrigger
next to the fuel tank (13, 14).
9. Expand the 6 existing holes on the condenser
(3) to 4mm. Install the condenser
reinforcement brackets (6, 8) on the
condenser using 6 M4 bolts and nuts (71,
72).
