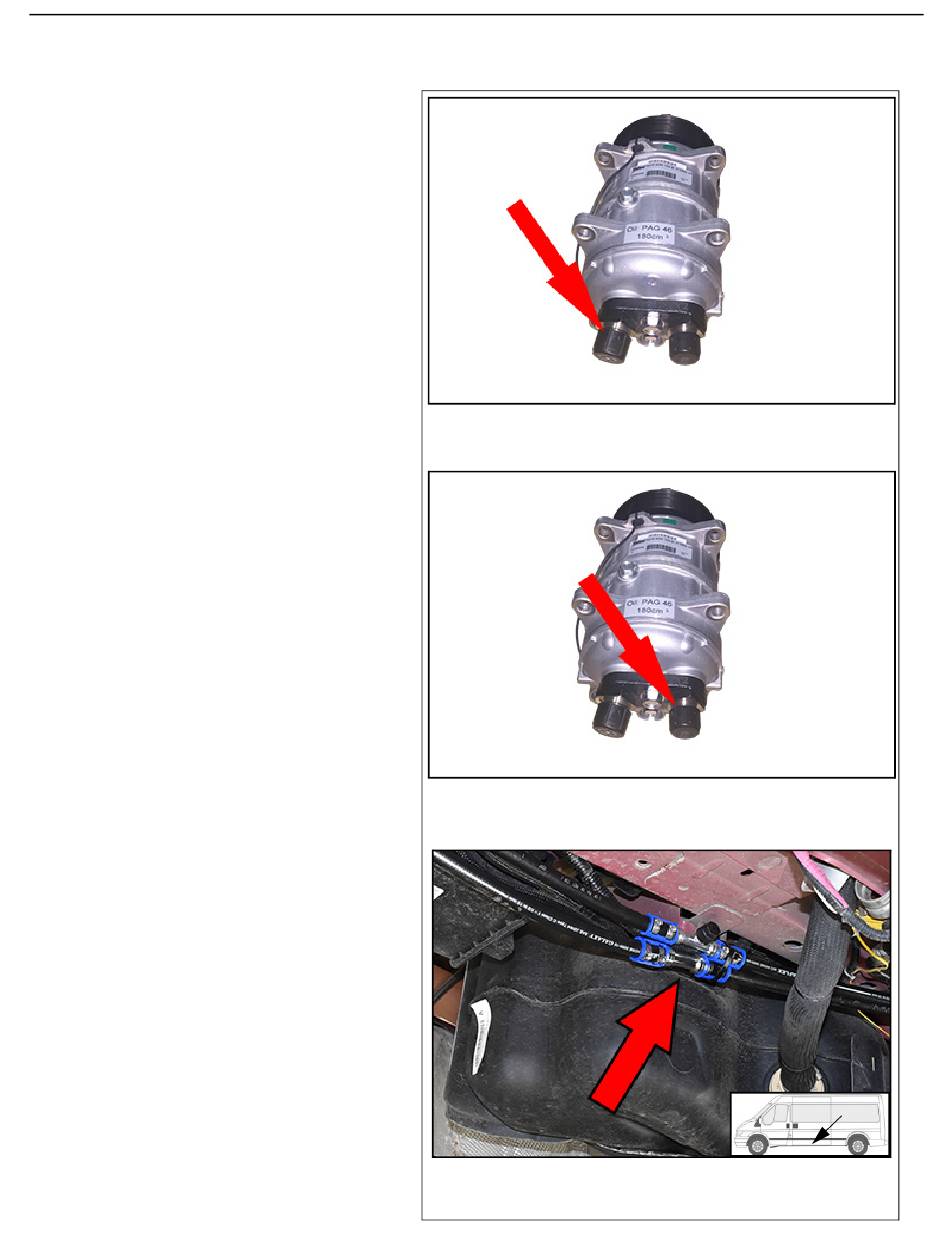

38.Using a #10 45º fitting (47), route the low-
pressure A/C hose from the service fitting to
the A/C compressor.
39.Using a #8 45º fitting (42, 23) route the high-
pressure hose from the compressor to the
area of the condenser.
NOTE: Service ports should be located in a
location that allows easy servicing.
NOTE: Orient the service ports with the
caps rotated slightly upward to prevent
moisture from collecting in the caps.
40.Cut the hoses where appropriate and install
the service ports (46, 43).
