Electrical Installation; Wiring Harness Layout - Webasto Ford Transit Manual

London

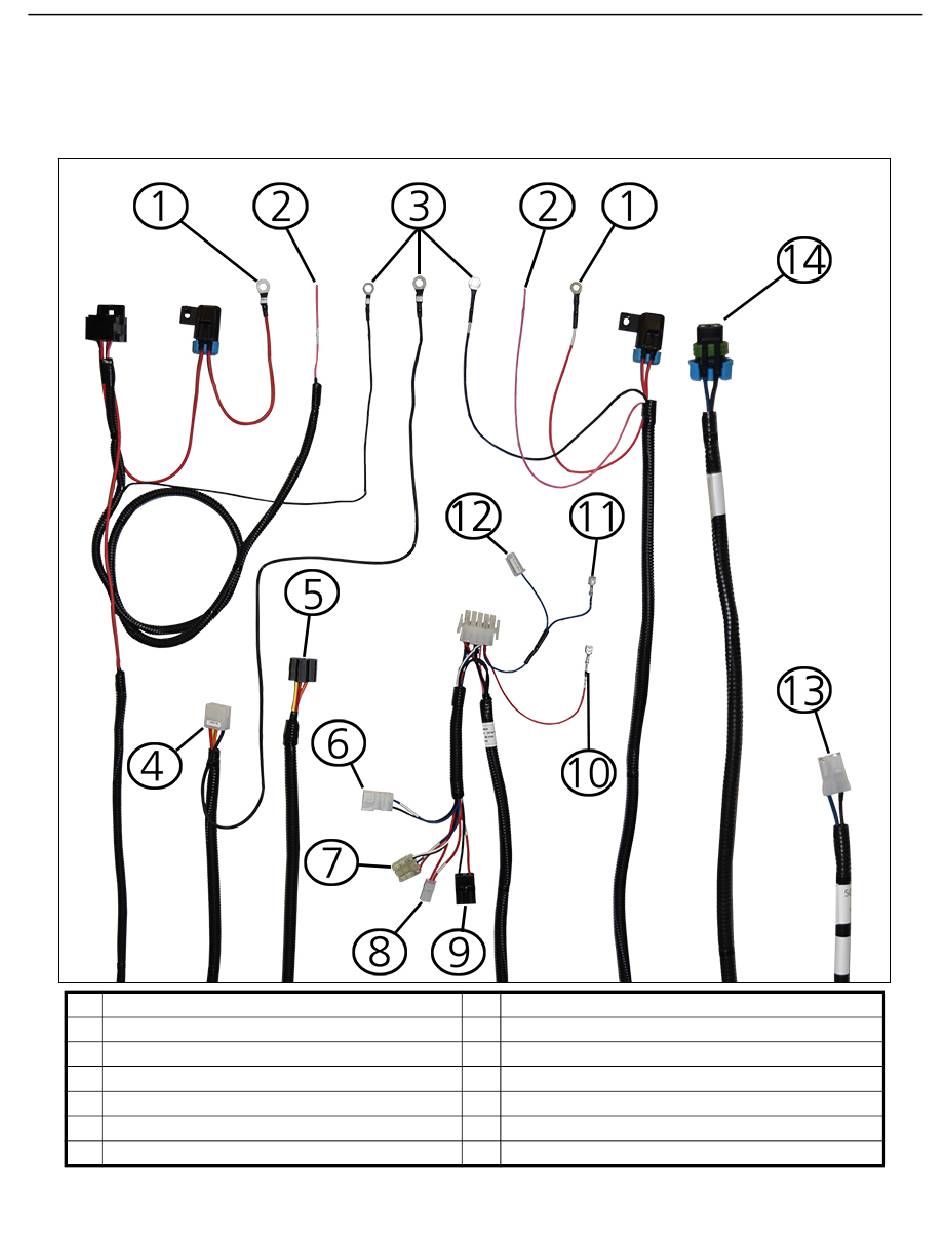

Refer to this graphic for electrical connections as needed.
1 Battery 12V power
2 Ignition ON 12V power
3 Battery ground
4 Blower motor connection at evaporator assembly
5 Blower motor connection at controller
6 Coolant pump
7 Coolant valve
# not used in this kit. Insulate and protect the wire

Electrical Installation

8 Thermostat
9 Compressor
10 Heat switch (NEO 3 only - goes to blower pin C) #
11 AC switch (NEO 2/3 - goes to AC blower pin C)
12 AC swtich - extreme system only *
13 Condenser fan connection at condenser *
14 Condenser fan connection at extreme board *
* Used only in Extreme systems
20
Ford Transit
