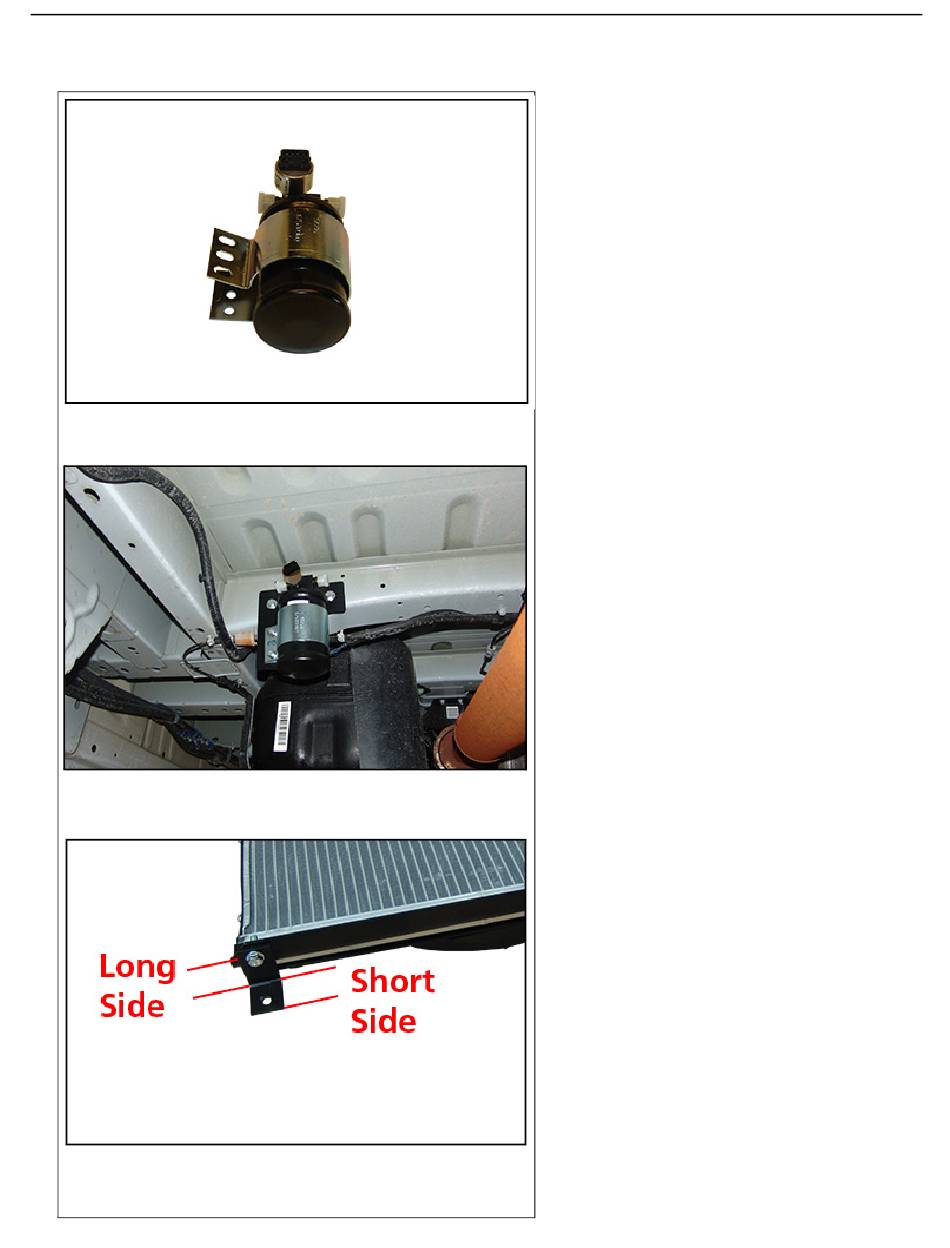

10. Install the filter/dryer in the filter/dryer
mounting clamp (11, 12). Loosely install the
trinary switch (55) in the filter/dryer.
XXX
11.Install the filter/dryer assembly and the filter/
dryer bracket (4, 59). Use the existing
threaded holes in the chassis to mount the
bracket (56) Tighten the trinary switch.
NOTE: There are three right-angle con-
denser mounting brackets. The 'long side'
of the bracket attaches to the condenser
assembly.
12. Loosely mount the three right angle
condenser mounting brackets (7, 59, 61) and
the straight bracket (5, 59, 61) to the
condenser.
