Ford Transit
NOTE: The condenser is installed on the left
side of the vehicle next to the fuel tank.

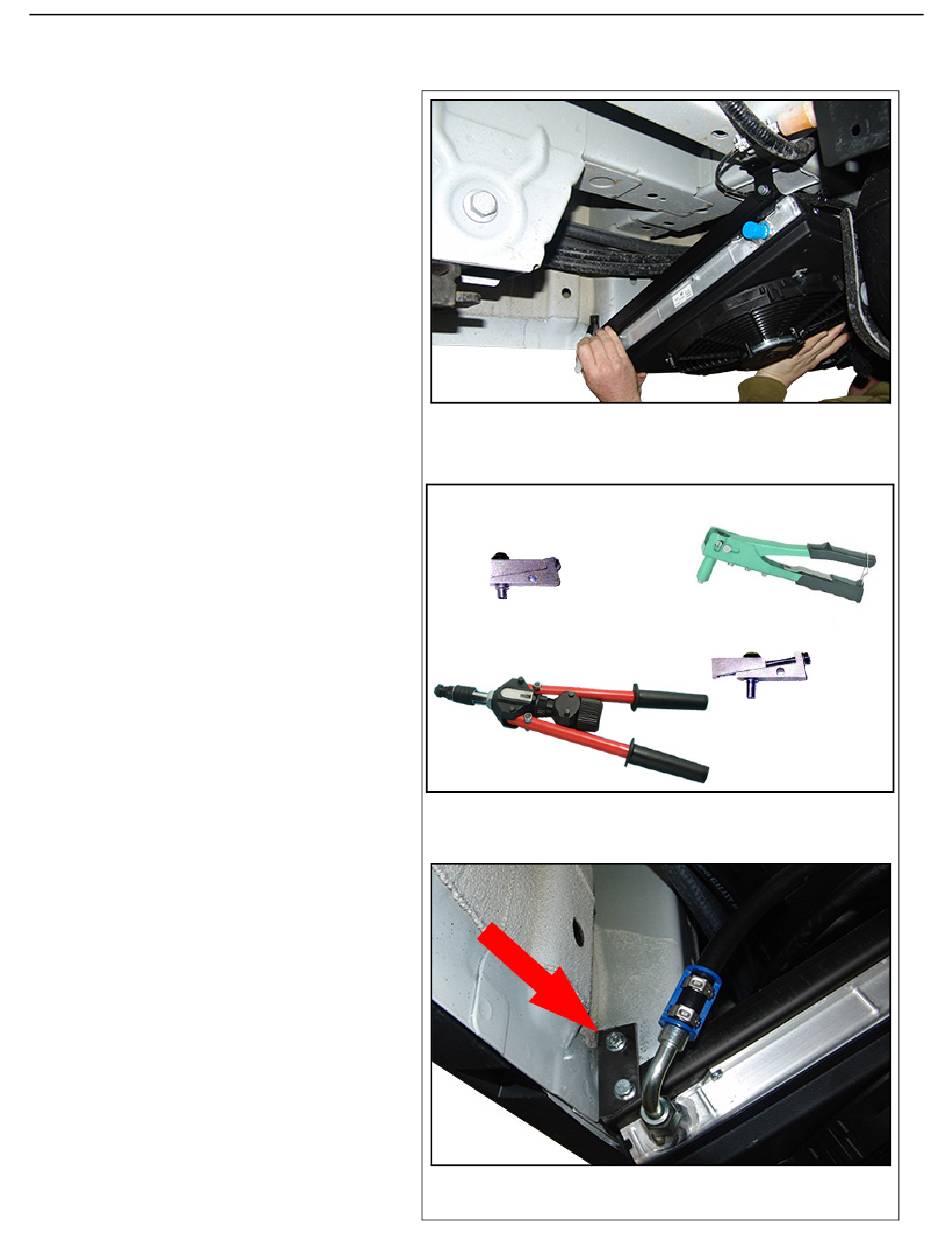

13. Hold the condenser in place and mark the
four mounting hole locations.
XXX
NOTE: In some cases you will only have to
drill three holes. One may already have the
appropriate threaded insert installed.
14. Drill four 3/8 inch holes and install the
threaded inserts (68) using an appropriate
tool.
NOTE: The A/C hose is shown installed for
clarity.
NOTE: The angled side of the bracket is
nearest the A/C fitting to prevent interfer-
ence between the bracket and the fitting.
15. Install the condenser assembly (59).
