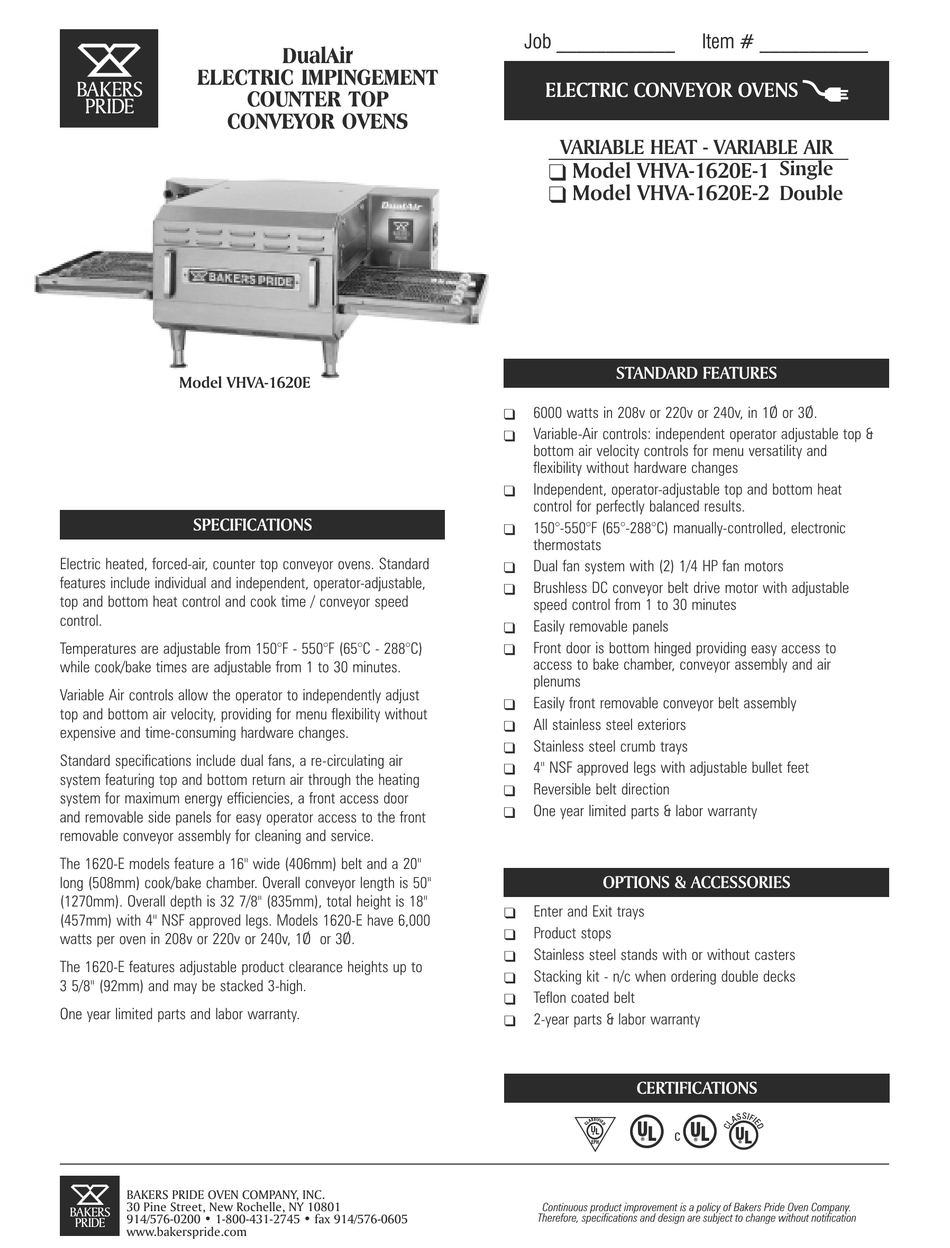

Bakers Pride VHVA-1620-E1 Specifications

ELECTRIC IMPINGEMENT
BAKERS
PRIDE
CONVEYOR OVENS
Model VHVA-1620E
SPECIFICATIONS
Electric heated, forced-air, counter top conveyor ovens. Standard
features include individual and independent, operator-adjustable,
top and bottom heat control and cook time / conveyor speed
control.
Temperatures are adjustable from 150°F - 550°F (65°C - 288°C)
while cook/bake times are adjustable from 1 to 30 minutes.
Variable Air controls allow the operator to independently adjust
top and bottom air velocity, providing for menu flexibility without
expensive and time-consuming hardware changes.
Standard specifications include dual fans, a re-circulating air
system featuring top and bottom return air through the heating
system for maximum energy efficiencies, a front access door
and removable side panels for easy operator access to the front
removable conveyor assembly for cleaning and service.
The 1620-E models feature a 16" wide (406mm) belt and a 20"
long (508mm) cook/bake chamber. Overall conveyor length is 50"
(1270mm). Overall depth is 32 7/8" (835mm), total height is 18"
(457mm) with 4" NSF approved legs. Models 1620-E have 6,000
watts per oven in 208v or 220v or 240v, 1
The 1620-E features adjustable product clearance heights up to
3 5/8" (92mm) and may be stacked 3-high.
One year limited parts and labor warranty.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
BAKERS
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
PRIDE
www.bakerspride.com
DualAir
COUNTER TOP
O / or 3O / .
Job ____________
ELECTRIC CONVEYOR OVENS
VARIABLE HEAT - VARIABLE AIR
Model VHVA-1620E-1
q
Model VHVA-1620E-2
q
STANDARD FEATURES
6000 watts in 208v or 220v or 240v, in 1O / or 3O / .
q
Variable-Air controls: independent operator adjustable top &
q
bottom air velocity controls for menu versatility and
flexibility without hardware changes
Independent, operator-adjustable top and bottom heat
q
control for perfectly balanced results.
150°-550°F (65°-288°C) manually-controlled, electronic
q
thermostats
Dual fan system with (2) 1/4 HP fan motors
q
Brushless DC conveyor belt drive motor with adjustable
q
speed control from 1 to 30 minutes
Easily removable panels
q
Front door is bottom hinged providing easy access to
q
access to bake chamber, conveyor assembly and air
plenums
Easily front removable conveyor belt assembly
q
All stainless steel exteriors
q
Stainless steel crumb trays
q
4" NSF approved legs with adjustable bullet feet
q
Reversible belt direction
q
One year limited parts & labor warranty
q
OPTIONS & ACCESSORIES
Enter and Exit trays
q
Product stops
q
Stainless steel stands with or without casters
q
Stacking kit - n/c when ordering double decks
q
Teflon coated belt
q
2-year parts & labor warranty
q
CERTIFICATIONS
S
U L
U L
C
®
®
EPH
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
Item # ___________
Single
Double
U L
U L
®
®
