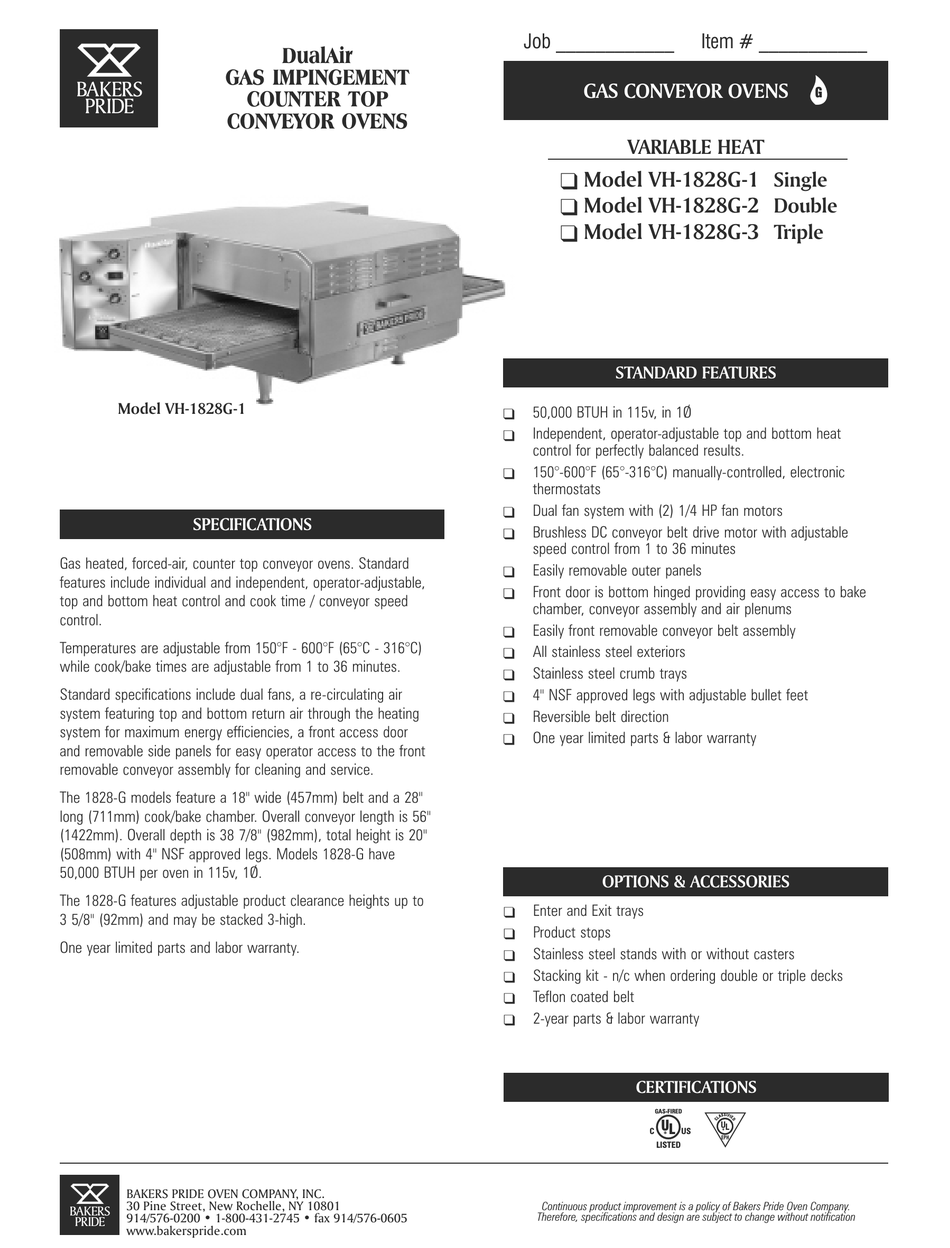

Bakers Pride VH-1828G-1 Specifications

GAS IMPINGEMENT
BAKERS
PRIDE
CONVEYOR OVENS
Model VH-1828G-1
SPECIFICATIONS
Gas heated, forced-air, counter top conveyor ovens. Standard
features include individual and independent, operator-adjustable,
top and bottom heat control and cook time / conveyor speed
control.
Temperatures are adjustable from 150°F - 600°F (65°C - 316°C)
while cook/bake times are adjustable from 1 to 36 minutes.
Standard specifications include dual fans, a re-circulating air
system featuring top and bottom return air through the heating
system for maximum energy efficiencies, a front access door
and removable side panels for easy operator access to the front
removable conveyor assembly for cleaning and service.
The 1828-G models feature a 18" wide (457mm) belt and a 28"
long (711mm) cook/bake chamber. Overall conveyor length is 56"
(1422mm). Overall depth is 38 7/8" (982mm), total height is 20"
(508mm) with 4" NSF approved legs. Models 1828-G have
50,000 BTUH per oven in 115v, 1 . O /
The 1828-G features adjustable product clearance heights up to
3 5/8" (92mm) and may be stacked 3-high.
One year limited parts and labor warranty.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
BAKERS
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
PRIDE
www.bakerspride.com
DualAir
COUNTER TOP
Job ____________
GAS CONVEYOR OVENS
VARIABLE HEAT
Model VH-1828G-1
q
Model VH-1828G-2
q
Model VH-1828G-3
q
STANDARD FEATURES
50,000 BTUH in 115v, in 1O /
q
Independent, operator-adjustable top and bottom heat
q
control for perfectly balanced results.
150°-600°F (65°-316°C) manually-controlled, electronic
q
thermostats
Dual fan system with (2) 1/4 HP fan motors
q
Brushless DC conveyor belt drive motor with adjustable
q
speed control from 1 to 36 minutes
Easily removable outer panels
q
Front door is bottom hinged providing easy access to bake
q
chamber, conveyor assembly and air plenums
Easily front removable conveyor belt assembly
q
All stainless steel exteriors
q
Stainless steel crumb trays
q
4" NSF approved legs with adjustable bullet feet
q
Reversible belt direction
q
One year limited parts & labor warranty
q
OPTIONS & ACCESSORIES
Enter and Exit trays
q
Product stops
q
Stainless steel stands with or without casters
q
Stacking kit - n/c when ordering double or triple decks
q
Teflon coated belt
q
2-year parts & labor warranty
q
CERTIFICATIONS
GAS-FIRED
U L
C US
®
LISTED
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
Item # ___________
G
Single
Double
Triple
S
U L
®
EPH
