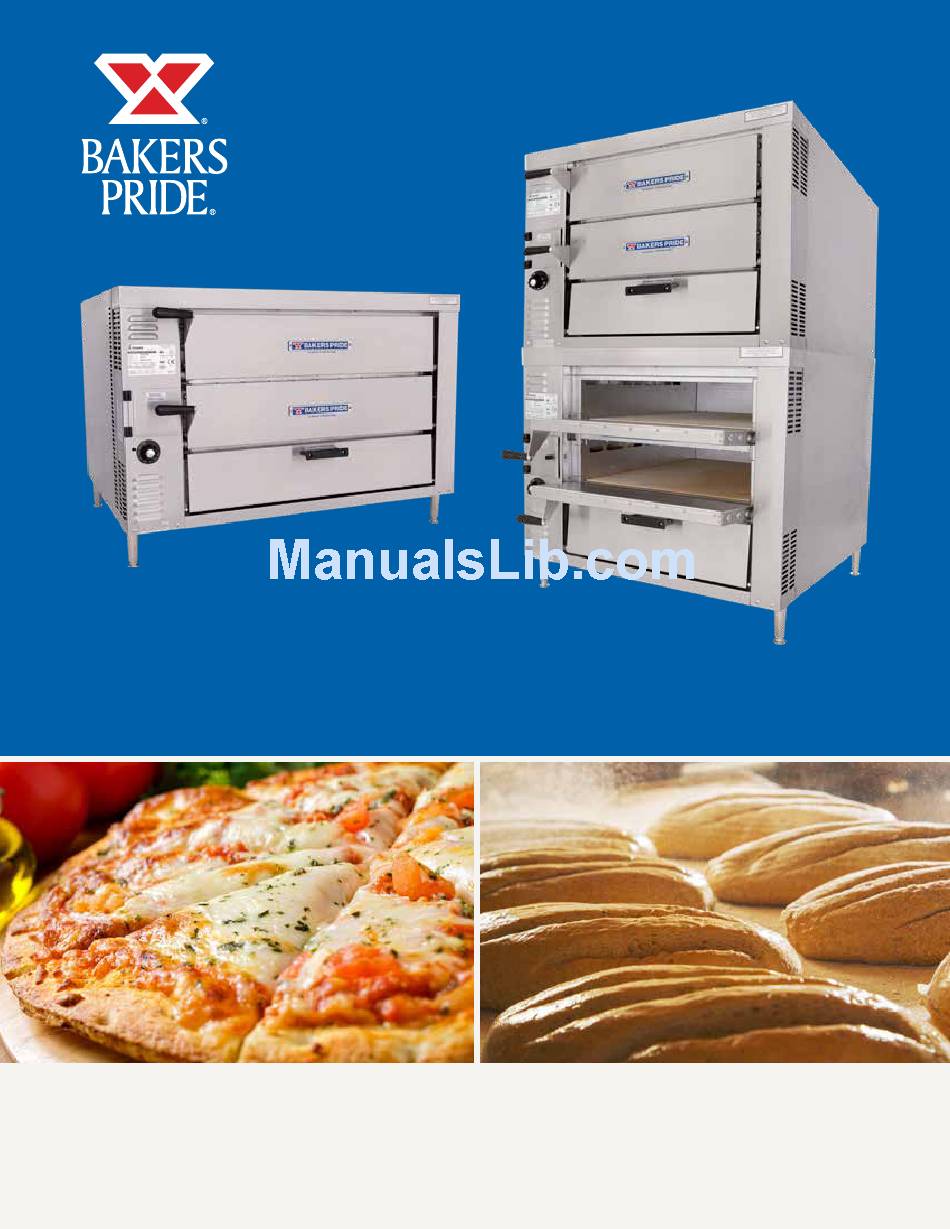

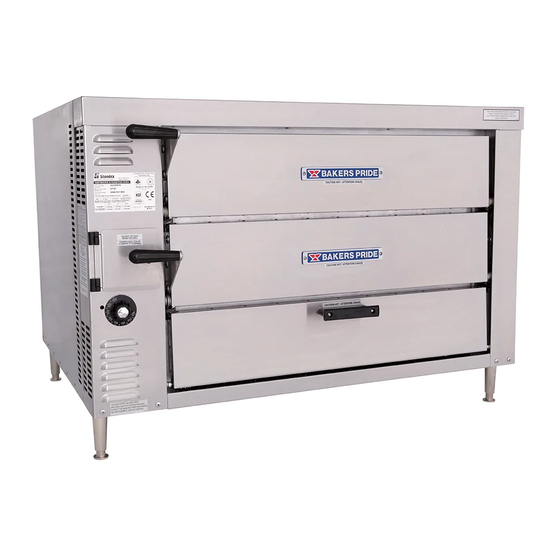

- Page 1 OPERATION MANUAL HEARTHBAKE SERIES COUNTERTOP GAS OVENS SERIES: GP B U I LT BY C R A F T S M E N . T E S T E D BY T I M E ®...
- Page 2 Models: CAUTION GP-51 and GP-61 Improper installation, adjustment, alteration, Bakers Pride Oven Company, LLC is a wholly owned service or maintenance can cause property subsidiary of Standex International Corporation. damage, injury or death. Read the installation, operating and maintenance instructions...
-
Page 3: Table Of Contents
11.71 Natural 3.5” Water Column GP-52 Consists of two GP-51 Ovens 10” Water Column GP-54 32,000 9.37 GP-55 Consists of two GP-54 Ovens GP-61 45,000 13.18 GP-62 Consists of two GP-61 Ovens GP-61-H 60,000 17.57 GP-62-H Consists of two GP-61-H Ovens... -
Page 4: Installation Instructions
COUNTERTOP GAS DECK OVEN OPERATION MANUAL INSTALLATION INSTRUCTIONS Receiving: Clearances: Read the notice on the outside carton regarding damage Combustible Non-Combustible in transit. Damage discovered after opening crate(s)/ Construction Construction carton(s) is ‘CONCEALED DAMAGE’ and the carrier Minimum Clearance from: Left 2”... -
Page 5: Countertop Installation
COUNTERTOP GAS DECK OVEN OPERATION MANUAL INSTALLATION INSTRUCTIONS Countertop Installation: NOTICE Oven is shipped with standard 4” legs installed. Installation should be made with a connector that (1) Move the oven to its final location keeping the complies with the latest edition of the Standard minimum clearance detailed in Clearances for Connectors for Movable Gas Appliances ANSI section above. -
Page 6: Steel Deck
COUNTERTOP GAS DECK OVEN OPERATION MANUAL INSTALLATION INSTRUCTIONS Slab Installation (Fig. 4): GAS AND ELECTRIC CONNECTIONS: Slide one deck into the oven over the bottom Propane gas units are not available in the European hearth pan. Community Countries. Slide the second deck onto the support angles on The appliance when installed, must be the sides and back. -
Page 7: Flue Connection-Ventilation
COUNTERTOP GAS DECK OVEN OPERATION MANUAL INSTALLATION INSTRUCTIONS A separate shut-off valve for each oven must be Flue Diverter Draft Hood provided. It should be as close as possible to the (For use w/ (For use place where the gas supply line goes into the Collection w/Direct oven. -
Page 8: Pilot Burner Lighting Procedure
COUNTERTOP GAS DECK OVEN OPERATION MANUAL INSTALLATION INSTRUCTIONS Pilot Burner Lighting Procedure: Burner Operation: Partially depress and turn the gas cock dial to Main Burner: ‘OFF’() position. After the pilot burner is ignited, when heat is desired, turn gas cock dial to ‘ON’ () position and set the Wait for five minutes to allow gas, which may thermostat dial to the desired temperature. -
Page 9: Operating Instructions
COUNTERTOP GAS DECK OVEN OPERATION MANUAL OPERATING INSTRUCTIONS Baking: NOTICE Pizza can be baked on the deck, on a screen or in a pan. When you determine the combination of method, Only Pizza and Bread Products can have direct ingredients and temperature that gives the right bake contact with Fibrament Decks. -
Page 10: Cleaning And Maintenance
Flue Vent: steel. Bakers Pride offers a stainless steel Ventilation system must be inspected every six months cleaner expressly for this purpose. Rinse well. and maintained clean and free of obstructions. -
Page 11: Baking Decks
Thermopile may not be positioned in pilot flame. Ensure that the tip of thermopile is in pilot flame. Thermopile may be defective. Call local authorized Bakers Pride Service Agent. Oven too Hot Thermostat set too high. Lower the thermostat setting and see if flame reduces in size. -
Page 12: Exploded Views & Parts Lists
COUNTERTOP GAS DECK OVEN OPERATION MANUAL EXPLODED VIEWS & PARTS LISTS Figure A. GP-51 Exterior, Deck, Burner Compartment, Rod Door, Interior Trim... - Page 13 BGOR Conversion Kit (from Nat to LP) U1172X LIGHTING INSTRUCTION PLATE U1140X MINIMUM CLEARANCE PLATE PART # DESCRIPTION U1044X BAKERS PRIDE NAME PLATE 8” R3077X BURNER ORIFICE L/P (DRILL #48) T8089X LEG SHELF M1245X PILOT ORIFICE L.P. S1022X 4” CASTERS W/NO LOCKS...
- Page 14 COUNTERTOP GAS DECK OVEN OPERATION MANUAL EXPLODED VIEWS & PARTS LISTS ITEM PART # DESCRIPTION L5094X BURNER W/INSPIRATOR TO UNION W/O ORIFICE L5096X BURNER W/CAP & ELBOW M1220X PILOT BURNER N/G M1222X PILOT BURNER L/P M1244X PILOT ORIFICE N/G M1245X PILOT ORIFICE L.P. R3036X S/S PILOT TUBING 45”...
-
Page 15: Parts List W/Exploded Views
COUNTERTOP GAS DECK OVEN OPERATION MANUAL EXPLODED VIEWS & PARTS LISTS Figure A2. GP-61 Exterior, Deck, Burner Compartment, Rod Door, Interior Trim... - Page 16 BGOR Conversion Kit (from LP to Nat) U1172X LIGHTING INSTRUCTION PLATE U1140X MINIMUM CLEARANCE PLATE PART # DESCRIPTION U1044A BAKERS PRIDE NAME PLATE 8” R3146X BURNER ORIFICE N/G (DRILL #30) T8088X LEG SHELF M1244X PILOT ORIFICE N/G S1022X 4” CASTERS W/NO LOCKS...
- Page 17 COUNTERTOP GAS DECK OVEN OPERATION MANUAL EXPLODED VIEWS & PARTS LISTS ITEM PART # DESCRIPTION L5036X BURNER W/INSPIRATOR TO UNION W/O ORIFICE O/S L5095X BURNER W/CAP & ELBOW O/S L5108X BURNER W/INSPIRATOR TO UNION W/O ORIFICE L5096X BURNER W/CAP & ELBOW K1237X PILOT BRACKET ADAPTER (USED ON O/S BURNER) M1220X PILOT BURNER N/G M1222X PILOT BURNER L/P...
-
Page 18: Warranty
Bakers Pride Factory Authorized Service Center. This Warranty is in lieu of all other warranties, expressed or implied, and all other obligations or liabilities on the manufacturer’s part. Bakers Pride shall in no event be liable for any special, indirect or consequential damages, or in any event for damages in excess of the purchase price of the unit. - Page 19 IMPORTANT FOR FUTURE REFERENCE Please complete this information and retain this manual for the life of the equipment. For Warranty Service and/or Parts, this information is required. Model Number Serial Number Date Purchased NOTES...
- Page 20 NOTES...
- Page 21 NOTES...
- Page 22 Food Service Equipment Group The Standex Food Service Equipment Group (FSEG) is a manufacturer of innovative commercial food service equipment offering a wealth of refrigeration and cooking expertise. Products include walk-in coolers and freezers; hot and cold display cabinets, cases, and storage systems; commercial ovens, rotisseries, and cooking equipment;...
