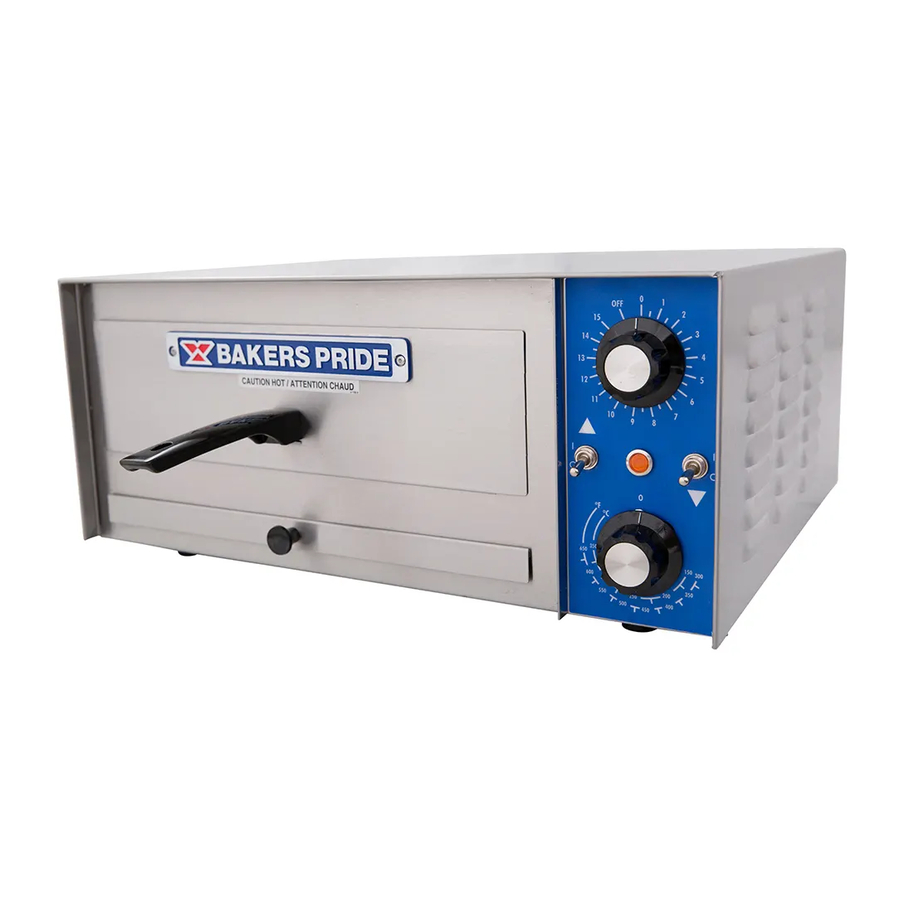

Bakers Pride PX-14 Installation And Operating Instructions Manual

Bakers Pride PX-14 Installation And Operating Instructions Manual

Counter top electric ovens
Hide thumbs Also See for PX-14:

Advertisement

INSTALLATION AND OPERATING INSTRUCTIONS
COUNTER TOP ELECTRIC
INTENDED FOR OTHER THAN HOUSEHOLD USE
Models: PX-14, PX-16, P-18, BK-18, P-22S, P-22BL,
RETAIN THIS MANUAL FOR FUTURE REFERENCE
OVEN MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
Improper installation, adjustment, alteration, service or maintenance can cause property
damage, injury or death. Read the Installation, Operating and Maintenance Instructions
thoroughly before installing or servicing this equipment.
Initial heating of oven may generate smoke or fumes and must be done in a well
ventilated area. Overexposure to smoke or fumes may cause nausea or dizziness.
Note: Only Pizza or Bread can have direct contact with ceramic decks. All other food
products must be placed in a pan or container to avoid direct contact with ceramic
decks.
This equipment has been engineered to provide you with year round dependable service
when used according to the instructions in this manual and standard commercial kitchen
practices.
U L
(914) 576-0200 Phone
(914) 576-0605 Fax
OVENS
P-24S, P-44S, P-44BL, P-46S, P-48S, DP-2

FOR YOUR SAFETY

WARNING
U L
BAKERS PRIDE OVEN CO., INC.
30 Pine Street
New Rochelle, NY 10801
U L
C
(800) 431-2745 US & Canada
www.bakerspride.com Web Address
1
11/00 Form #U4008A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX-14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bakers Pride PX-14

  • Page 1: For Your Safety

    This equipment has been engineered to provide you with year round dependable service when used according to the instructions in this manual and standard commercial kitchen practices. 11/00 Form #U4008A BAKERS PRIDE OVEN CO., INC. 30 Pine Street New Rochelle, NY 10801 (914) 576-0200 Phone (800) 431-2745 US &...
  • Page 2: Table Of Contents

    INDEX INSTALLATION INSTRUCTIONS SECTION ITEM PAGE Location Electrical Connections Requirements for Installation Initial Start Up OPERATING INSTRUCTIONS SECTION ITEM PAGE General Baking General Baking Tips Special Features Cleaning Service and Trouble Shooting Installation of Decks Wiring Diagrams 8-12...
  • Page 3: Location

    INSTALLATION INSTRUCTIONS Minimum Clearance for Installation From combustible or non-combustible construction: Right side, Left side and Back: 3” (76mm) LOCATION Due to the heat a counter-top oven may produce, it must be placed on a non-combustible surface. Do not store combustible materials on top of any oven. ELECTRICAL CONNECTIONS Suitable means, which will disconnect all ungrounded conductors of the circuit simultaneously, must be provided by the installer.
  • Page 4: Initial Start Up

    After the front legs are tight, lift rear of unit approximately 5” (125mm) off the surface and block in position using wood or some other solid material. Now mount the two rear legs and tighten. Using the proper lifting equipment, move the unit to its final location. Adjust the bottom portion of legs to make level.
  • Page 5: General Baking

    OPERATING INSTRUCTIONS Note: Only Pizza or Bread can have direct contact with ceramic decks. All other food products must be placed in a pan or container to avoid direct contact with ceramic decks. GENERAL BAKING Models: P-18, BK-18, P-22S, P-22BL, P-24S, P-44S, P-44BL, P-46S, P-48S, PX-14 and PX-16 Preheat the oven by setting the thermostat to the desired temperature.
  • Page 6: Special Features

    ALWAYS CLEAN THE OVEN WHEN IT IS COLD. WHEN CLEANING STAINLESS STEEL, ALWAYS WIPE IN THE DIRECTION OF THE GRAIN. Scrapers, brushes and stainless steel cleaner can be ordered from BAKERS PRIDE for this purpose. From time to time the spillage should be scraped out. For hard to clean spillage, the following is suggested: Turn the thermostat up to the highest setting and let the oven run for ½...
  • Page 7: Service And Trouble Shooting

    Stainless steel surfaces should be cleaned with BAKERS PRIDE STAINLESS STEEL CLEANER. SERVICE AND TROUBLE SHOOTING The ovens are designed to be as trouble free as possible. Keeping the oven clean is all that is normally required. All servicing should be performed by a factory authorized technician only.
  • Page 8: Wiring Diagrams

    5,795 7,260 8,010 WT22 WT11 CIRCUIT THERMOSTAT PILOT CIRCUIT THERMOSTAT PILOT BAKERS PRIDE EGO 3 POLE BREAKER BREAKER LIGHT LIGHT EGO 3 POLE ELECTRICAL WIRING DIAGRAM & TABLES BK14 2 3 5 6 2 3 5 6 P-SERIES - 2 CHAMBER - 1 PH 2 W OR 3 PH - 3 W...
  • Page 9 4,330 5,795 7,260 8,010 BK40 BR41 THERMOSTAT CIRCUIT PILOT CIRCUIT THERMOSTAT PILOT BAKERS PRIDE BREAKER EGO 3 POLE LIGHT BREAKER EGO 3 POLE LIGHT BK12 BR39 ELECTRICAL WIRING DIAGRAM & TABLES BR37 2 3 5 6 2 3 5 6...
  • Page 10 TOTAL W. LIGHT 1,715 2,880 2,165 3,630 4,005 THERMOSTAT CIRCUIT PILOT CIRCUIT BAKERS PRIDE BREAKER BREAKER EGO 3 POLE LIGHT ELECTRICAL WIRING DIAGRAM & TABLES BR12 BR37 P-SERIES - 1 CHAMBER - 3 PH - 4 W - STAR WT24 BL35 REV.
  • Page 11 PILOT CIRCUIT THERMOSTAT BREAKER BREAKER EGO 3 POLE LIGHT BK18 BAKERS PRIDE BK16 TO SWITCH (OPT) ELECTRICAL WIRING DIAGRAM & TABLES 2 3 5 6 WT24 WT22 P-SERIES - 1 CHAMBER - 1 PH - 2 W OR 3 PH - 3 W...
  • Page 12 240V LEGEND HEATER COILS N, L1, L2, L3 = FROM TERMINAL BLOCK BAKERS PRIDE UT = UPPER CHAMBER, TOP ELEMENT TH = THERMOSTAT 2 POLE (3 POLE) UC = UPPER CHAMBER, CENTER ELEMENT (P44 & P46 ONLY) P = THERMOSTAT INDICATOR LIGHT...
