SD Card Data Structure
1.
When the SD card if first inserted into the datalogger the folder CHA01 is created.
2.
The first datalogging session will then create a file CHA01001.XLS. All data will be saved to
this file until the number of rows reaches 30,000.
3.
After 30, 000 rows a new file, CHA01002.XLS is created. This is repeated every 30,000 rows
until CHA01099.XLS. At this point a new folder, CHA02 is created and the process is repeated.
CHA10 is the final folder.
Transferring Data to a PC
1.
Remove the memory card from the datalogger and plug it into the SD card slot on the PC.
2.

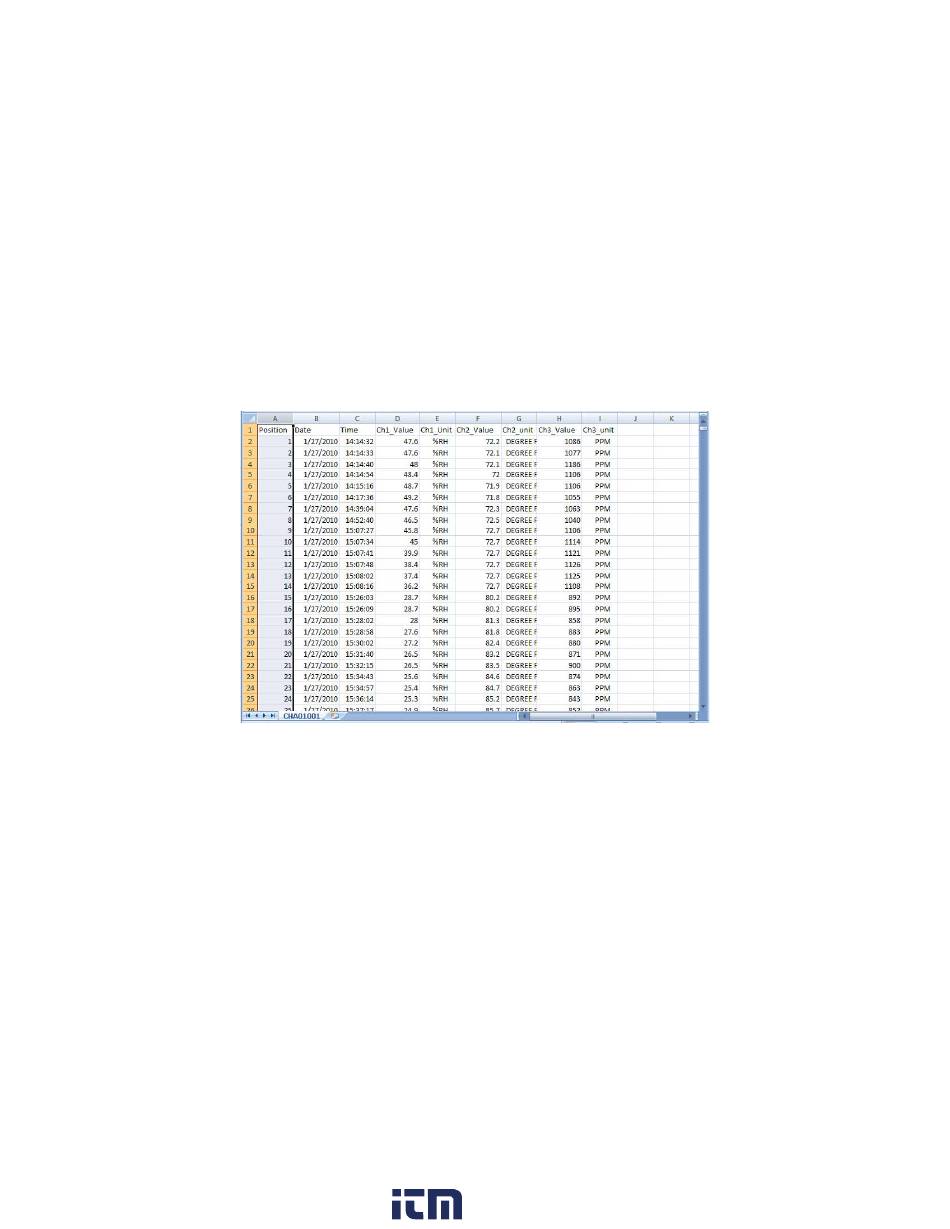

Launch Excel® and open the data file on the memory card from within the spreadsheet
program. The file will appear similar to the figure below.
www.
SD800-en-GB_v2.9 8/18
4
