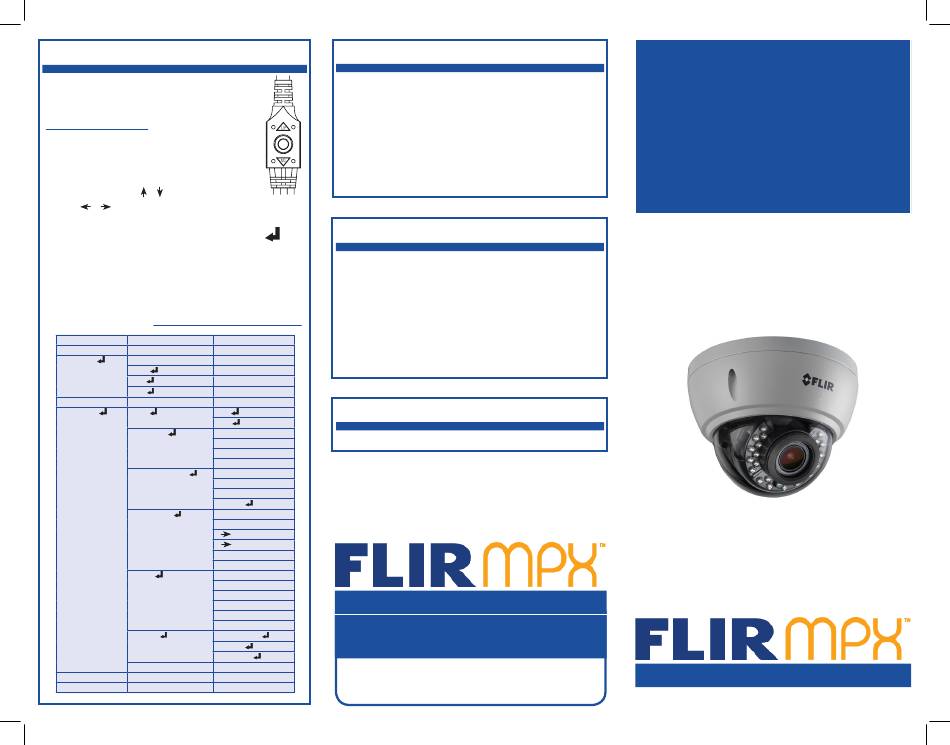

FLIR MPX C237VC Quick Start Manual

On-Screen Display (OSD) Menu
Configure OSD menu options using the
integrated control stick on the camera
cable (see image to the right).
To use the OSD menu:
• OPTIONAL: Connect a test monitor to the
camera's analog (yellow) BNC connector.
• Push the middle of the joystick to open the
OSD menu.
• Move the joystick / to select a setting,
then / to change the setting value.
• Push the middle of the joystick to confirm selection.
• Arrows beside settings indicate a submenu (
Select the setting and push the joystick to enter.
• Select RETURN and push the joystick to return to the
previous menu, or EXIT from the main menu to exit.
See the full OSD menu tree below. For detailed expla-
nation of camera settings, see the OSD
instruction manual on www.flir.com/security/support.
Language
Video Format
Backlight OFF
WDR (MPX only)
BLC
HLC
DNR
Advanced Lens ELC
ALC
Exposure Brightness
Shutter
Sens-Up
AGC
White Balance Auto
ATW
Preset
Manual
Day&Night Mode
Delay
D
N
Smart IR
Smart IR Level
Image Sharpness
Color Gain
Freeze
Flip
D-Zoom
Defog
Special Black Level
Privacy
DP Comp
Reset
Version
Exit
Package Contents
• 1x Vandal Dome MPX Camera
• 4x Mounting Screws
• 4x Drywall Anchors
• 1x Star Key
• 1x Mounting Template
NOTE: Power adapter not included.
Safety Precautions
).
• Use an appropriate low voltage power cable to
prevent fire or electrical shock.
• Make sure to install the camera in an area that can
support the camera weight.
• There are no user serviceable parts inside the
camera. Please do not disassemble the camera.
• Do not clean the lens cover with an abrasive cleaning
material. Please use a soft cloth to clean the lens
cover.
WDR Function Notice
WDR is not supported in analog output mode.
N Level
D Level
IT'S ALL ON THE WEB!
www.flir.com/security/support
FLIR Systems, Inc., Copyright © 2015
As our products are subject to continuous improvement, FLIR Systems
Inc. reserves the right to modify product design, specifications and
prices, without notice and without incurring any obligation. E&OE
VISIT

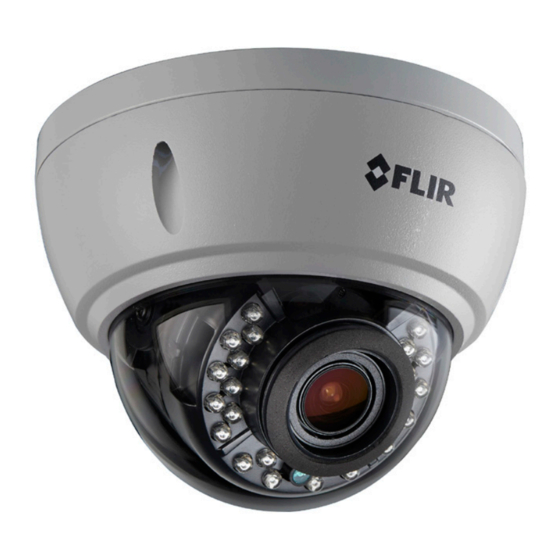

Vandal Dome MPX Camera
QUICK START GUIDE
English Version 2.0
C237VC / C237VCP
C237VD / C237VDP
www.flir.com/security/support
MODEL:
