FLIR MPX ME373A Series Quick Start Manual

Package Contents

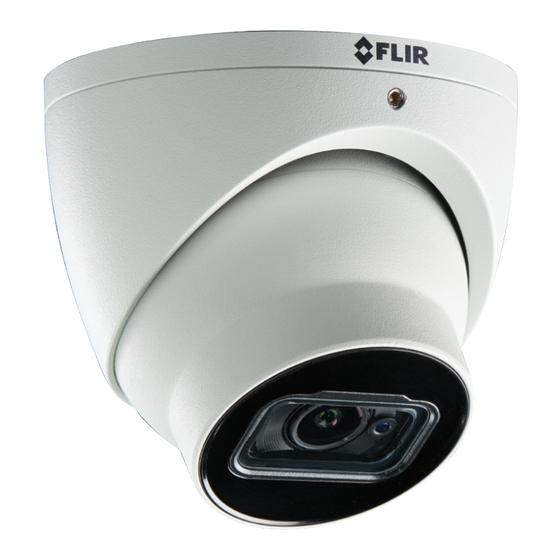

• 8MP Mini Fixed Eyeball Dome Camera
• Mounting Screws & Drywall Anchors (×4)
• Allen Key
NOTE: 12V DC power adapter not included.
On-Screen Display (OSD) Menu
You can configure the camera's advanced settings on an MPX DVR
using the OSD menu.
To use the OSD menu:
1. In Live View, click the channel that has the camera connected to open
in full-screen.
2. Right-click and click Pan/Tilt/Zoom. Enter the system user name
and password if prompted. The PTZ menu opens.
3. Click the arrow in the PTZ control window to show advanced controls.
4. Click . The OSD menu appears over the camera image.
5. Use the on-screen controls to configure menu items:
• UP / DOWN Arrows: Select menu items.
• LEFT / RIGHT Arrows: Change values for menu items.
• ESC: Exit the OSD menu.
• ENTER: Confirm selection.
6. Select Return to return to the previous menu, or Exit from the main menu
to exit.
NOTE: These instructions are based on current MPX DVR interface. If you are
not able to access your DVR's OSD menu by following these steps, please use
the instructions in your DVR manual instead.
See the full OSD menu tree below:
Format
Video Mode
BLC
Backlight Mode
WDR
HLC
Image Mode
Image Adjustment
Sharpness
Brightness
Contrast
Saturation
Sharp Suppress
Chroma Suppress
Gamma
2 DNR
3 DNR
Exposure Exposure Mode
Exposure Level
Exposure Speed
Anti-flicker
Auto
White Balance
Auto Tracking
Manual
Sodium Lamp
Indoor
Outdoor 1
Outdoor 2
Day/Night Auto
Black/White
Color
Language
Advanced Camera Name
Mirror
Audio Mode
Smart IR
Voltage Prompt
Privacy Mask
D-Zoom
Defog
System Info
OSD Auto Save & Exit
Default
NOTE: The Voltage Prompt feature is enabled by default. If you see the following
icon on screen ( ), the camera is outside of the acceptable voltage range.
Ensure the power supply used is within the camera's noted specifications.
Resources
• Mounting Template
• Power Pigtail
Visit us online for up-to-date software
1
2
3
4
Safety Precautions
• Use an appropriate low voltage power cable to prevent fire or
electrical shock.
• Make sure to install the camera in an area that can support the
camera weight.
• There are no user serviceable parts inside the camera. Do not
disassemble the camera.
• Do not clean the lens cover with an abrasive cleaning material. Use
a soft cloth to clean the lens cover.
FCC Notice
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
FLIR Systems, Inc., Copyright © 2018
As our products are subject to continuous improvement, FLIR Systems Inc. reserves
the right to modify product design, specifications and prices, without notice and
without incurring any obligation. E&OE
Need Help?
and complete instruction manuals
Visit flir.com/security/support
Search for the model number
of your product
Click on your product in the
search results
Click on the Downloads tab
ME373A_QSG_EN_R1
8MP Mini Fixed Eyeball
Dome Camera
QUICK START GUIDE
English Version 1.0
MULTI-FORMAT
ME373A Series
flir.com/security/mpx
