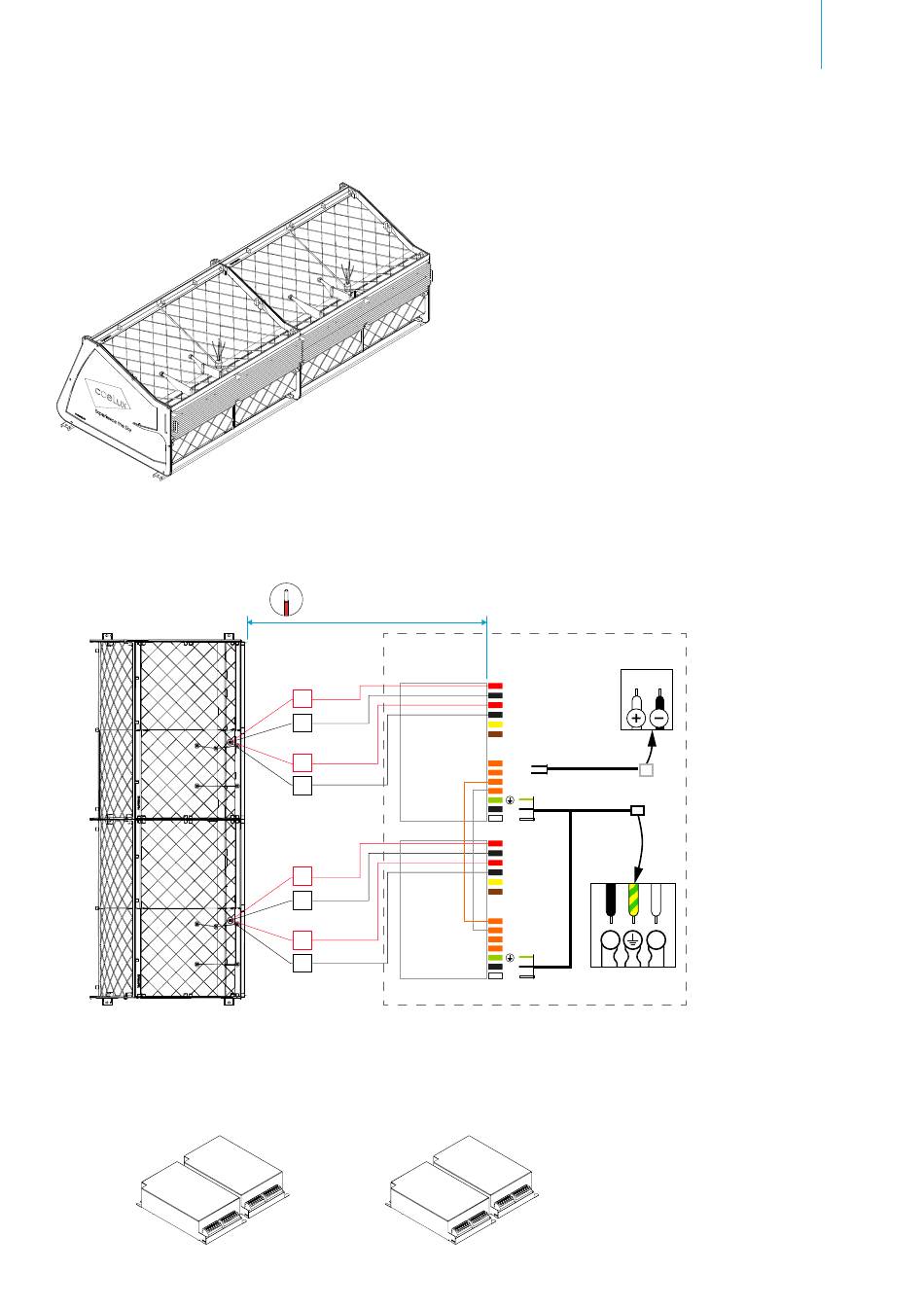

ELECTRICAL SPECIFICATIONS

LS system for Europe, Japan, China, Korea
LS_ND/ARRAY___/CE, PSE, CCC, KC
Input 4 channels
requirements max 450mA/channel
CoeLux LS Vdc=42V
U max=60V
out
DRIVERS PROVIDED ON REQUEST
CE,PSE / Code: 38-00036-01
2x Eldoled SOLOdrive 560/A - SL0560/A
Cable lenght max. 15 m
AWG 18 = Ø 1.02 = 0.82 mm2
2+
2-
1+
1-
2+
2-
1+
1-
CCC / Code: 38-00037-01
2x MOONS MU050S150BQI511-450mA
COELUX.COM 65-00195-02_A0
IT
A seconda del paese di destinazione, i drivers potrebbero non essere
inclusi. Per maggiori informazioni si prega di contattare il distributore
locale.
Installare i drivers in remoto in posizione facilmente accessibile per la
manutenzione.
E' assolutamente vietato collegare il sistema CoeLux LS serie 2 diret-
tamente alla rete di distribuzione elettrica.
EN
Depending on the destination country, drivers may not be included.
Please contact your local distributor for more information.
Install the drivers remotely in an easily accessible location for mainte-
nance.
It is absolutely forbidden to connect the CoeLux LS series 2 system
directly to the power distribution network.
FR
Selon le pays de destination, les drivers peuvent ne pas être inclus. Veu-
illez contacter votre distributeur local pour plus d'informations.
Placer les drivers à distance dans un endroit facilement accessible pour
la maintenance.
Il est absolument interdit de raccorder le système CoeLux LS série 2
directement au réseau de distribution électrique.
DALI
LED 1 +
LED 1 -
LED 2 +
LED 2 -
LEDcode/NTC +
LEDcode/NTC -
DALI -
DALI +
DALI -
DALI +
L
N
LED 1 +
LED 1 -
LED 2 +
LED 2 -
LEDcode/NTC +
LEDcode/NTC -
DALI -
DALI +
L N
DALI -
DALI +
L
N
Refer to local reseller
4
IT EN FR
IT
Opzione con alimentatori ge-
nerici con collegamento DALI.
Soluzione non obbligatoria
EN
Option with generic power
supplies with DALI connection.
Non mandatory solution.
FR
Option avec alimentation
générale avec connexion
DALI. Solution non obligatoire.
KC
