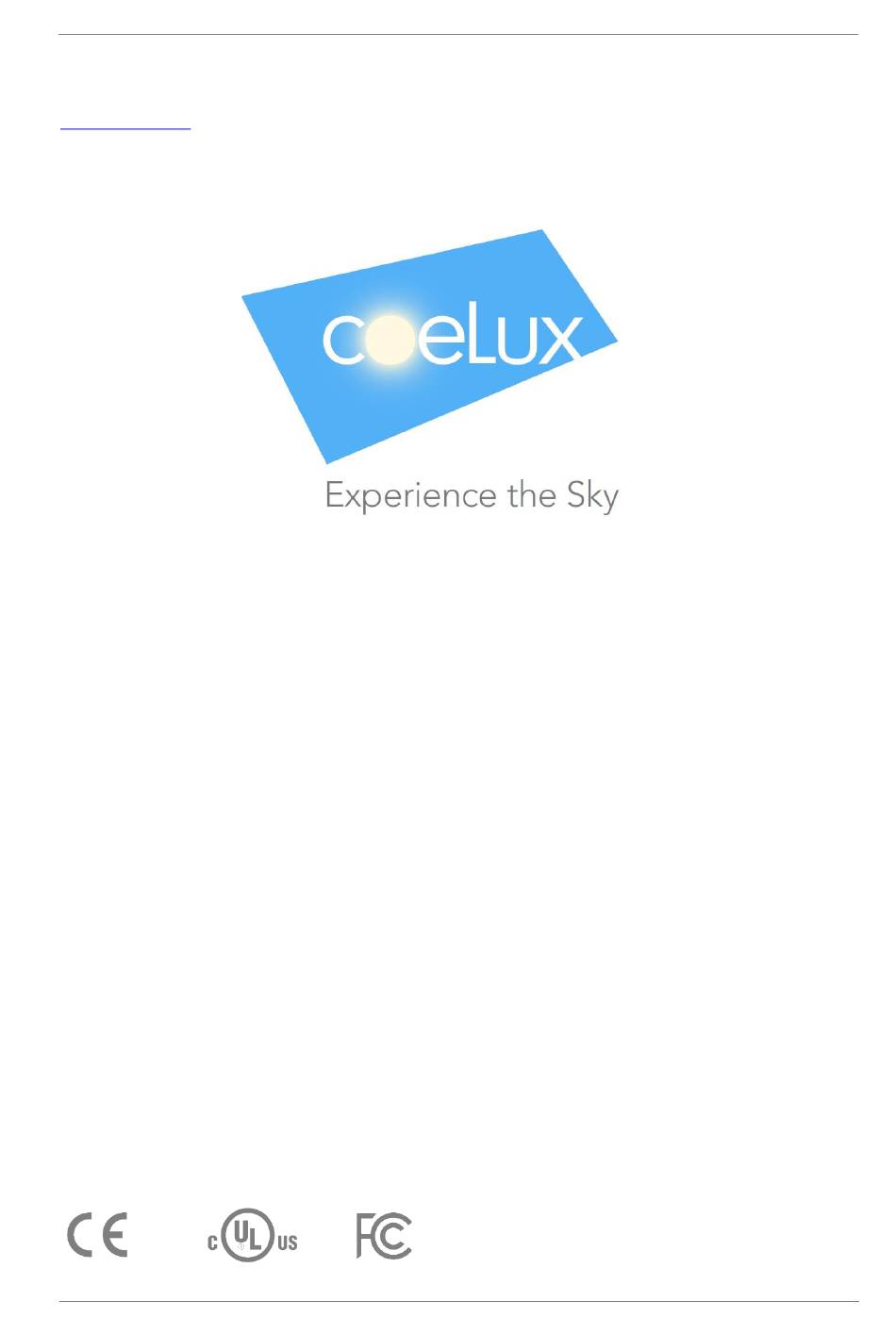

- Page 1 CoeLux S.r.l. Via Cavour, 2 22074 Lomazzo – Como - Italy Tel. 0236714394 www.coelux.com Lighting equipment ® CoeLux 45 HC CoeLux 45 HC_P CoeLux 45 HC_P_M User manual...
-
Page 2: Table Of Contents
® CoeLux 45 HC INDEX 1 INTRODUCTION ................... 3 CONVENTIONAL SYMBOLS USED IN THE MANUAL ............... 3 ABBREVIATIONS ..........................3 COMMERCIAL NAMES ........................3 2 PRODUCT SPECIFICATIONS ..............4 PRODUCT TECHNICAL DATA, SPECIFICATIONS AND IDENTIFICATION ........... 4 GENERAL SAFETY WARNINGS ....................... 6 2.2.1... -
Page 3: Introduction
= table 1.3 COMMERCIAL NAMES CoeLux HE: this refers to the High End product family. 45 HC Systems: this refers to the CoeLux HE product sub-family, consisting of CoeLux® 45 HC, CoeLux 45 HC_P and CoeLux 45 HC_P_M. User's manual... -
Page 4: Product Specifications
(not all products), even in a completely closed space. They consist of a LED light source, glass optical components and a CoeLux® plastic plate, all housed in a single, metal structure. - Page 5 74-00064-01 74-00064-01 Tab. 2 Versions of 45 HC systems The LED projector has a label with the Serial Number (SN) and Part Number (PN); please give CoeLux S.r.l. these numbers for any query. Serial Number Part Number Fig. 1 Label with Part Number and Serial Number The relevant standards have been applied to ensure the 45 HC systems comply with the essential requisites of the Directives 2014/35/EU, 2014/30/EU, 2011/65/EC and 2012/19/EU.
-
Page 6: General Safety Warnings
CoeLux S.r.l. will not be held liable for the incorrect installation and/or assembly or which does not comply with what is described in the installation manual. -
Page 7: Operations To Avoid
• If you have any further questions, please do not hesitate to contact CoeLux S.r.l (see last page in this manual). 2.2.1 OPERATIONS TO AVOID •... -
Page 8: How To Operate And Use
CoeLux panel to produce an artificial window to light the room naturally, as though it were a real sunlit window. Read the technical sheet and information provided by CoeLux S.r.l. to exploit the product potential to its best. WARNING! You must not install light controlling equipment (dimmers, colour control, etc.). -
Page 9: The Moon Scenario
® CoeLux 45 HC 3.1.1 THE MOON SCENARIO If you have purchased and correctly installed module 74-00064-01 (paragraph 6.2.15 OPTION 2), you can obtain the moon scenario using the DALI standard. This scenario is preset inside the projector as the third scene (if the scenario numbering begins from 0, it can be found as scene 2) and it cannot be modified or reset to other scenes. -
Page 10: Maintenance
CoeLux s.r.l. GENERAL INSTRUCTIONS CoeLux® 45 HC is designed for continuous use for a long period of time and requires minimal supervision. In adequate operating conditions that follow environmental prescriptions of table 1, maintenance needs are minimal; ordinary maintenance by qualified personnel especially depend on the environmental conditions in the room where CoeLux®... -
Page 11: Replacement Procedure Of Silica Gel
EXTRAORDINARY MAINTENANCE WARNING: Warranty is null and void in case of extraordinary maintenance performed without authorization of CoeLux S.r.l. or authorised technician. In the event of product contamination: cut off device power; be careful that wires and electrical parts do not come into contact with water or detergent;... -
Page 12: Troubleshooting
CoeLux S.r.l. Tab. 4 Troubleshooting REINSTALLATION AND REUSE To assess the possibility and convenience of reinstalling and reusing the product, contact CoeLux S.r.l. DEMOLITION AND DISPOSAL CoeLux 45HC meets directive 2012/19/UE regarding management and disposal of electrical and electronical equipment waste. -
Page 13: Contacts
® CoeLux 45 HC CONTACTS CoeLux S.r.l., Via Cavour, 2 - 22074 Lomazzo – Como - Italy Tel. +39 0236714394 Mail: info@coelux.com www.coelux.com COPYRIGHT This manual is published by CoeLux S.r.l. All rights, including translation, are reserved. It is prohibited reproduction of any kind without CoeLux written permission.
