Summary of Contents for Harmar Mobility AL001

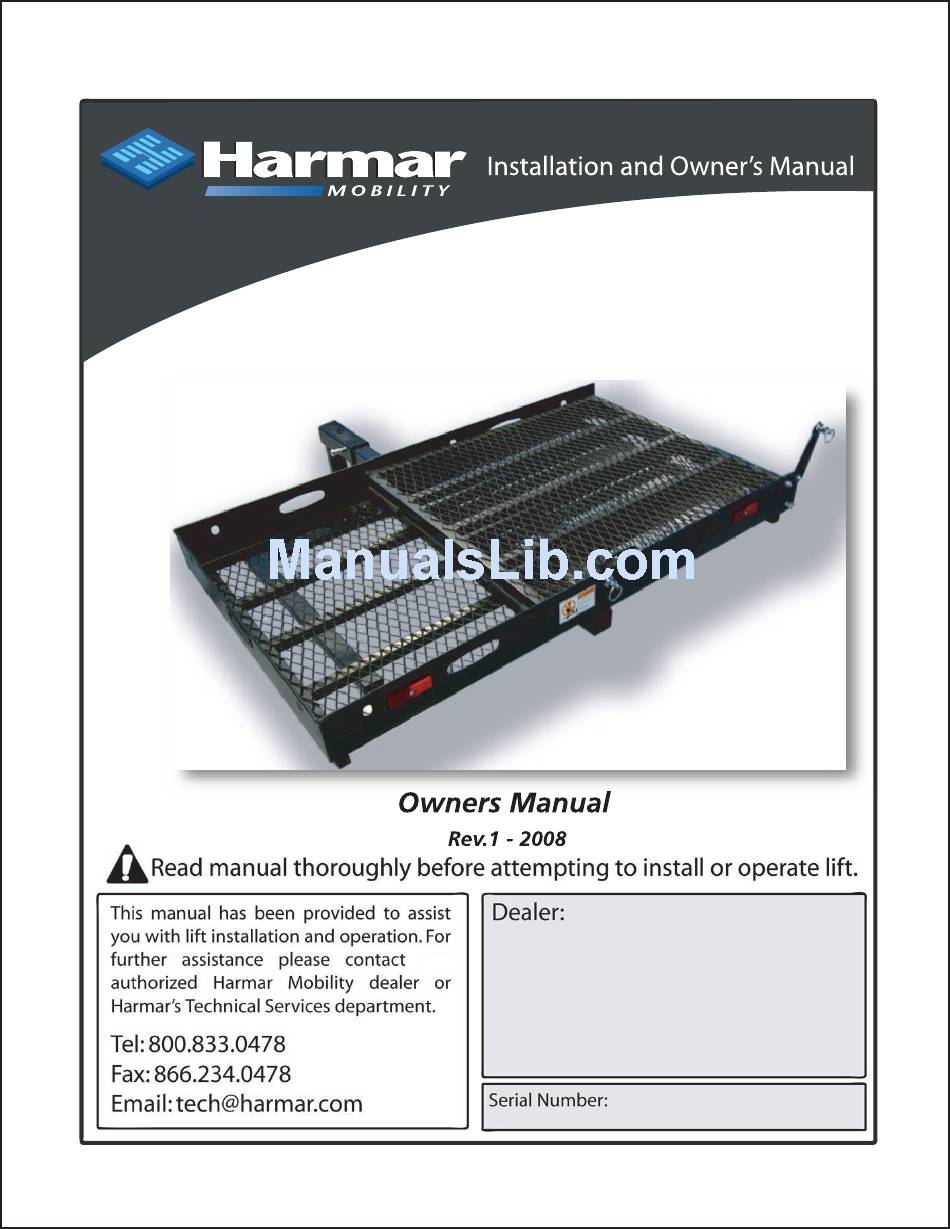

  • Page 1 AL001 your...
  • Page 2 AL001 Users Manual Harmar Mobility Rev.1 June 2008 Please read the manual before using. WARNING! A
warning
indicates
a
potentially
dangerous situation,
which
if
not
avoided,
could
result
in
death or
serious
injury. 1. Read all instructions and save them for future reference. 2. Follow all warnings and instructions marked on the product. 3. Do not ride any vehicle while loading onto the carrier.

  • Page 3: Assembly Instructions

    9. Do not put the product on any kinds of trailers. 10. Carrying capacity is limited to 500 lbs. max. Assembly Instructions Tools Need:  5/8” wrench  1/2” wrench  3/4” wrench  9/16” wrench  Phillips screwdriver Step.1 Insert the hitch into the carrier rack.
  • Page 4 Step.3 Screw spring pull pin into carrier. Add reflectors. See the figure. Step.4 Screw spring pull pin into jam nut. Screw spring pull pin into ramp bracket. Bolt bracket to frame. Secure with nuts and lock washers. See the figure. NOTE! To prevent loosening of the spring pull pin, torque the jam nut tightly against the ramp bracket.
  • Page 5 Insert the spring pull pin into the hole on the ramp when you stand the ramp. See the figure. ATTENTION! For the first installation of the anti-tilt lock bracket insert the carrier into the hitch receiver. Do not insert the hitch pin at this point.
  • Page 6 Next loosen the bolts on the anti-tilt lock bracket. (There should be grooves where the bolts were tightened against the hitch receiver) This procedure is required only during the initial installation of the anti-tilt lock bracket as for the grooves will ensure repeated relocating of the anti-tilt lock bracket.
  • Page 7 ATTENTION: Large chain loops on trailer hitches will not accept the anti-tilt locking device. In this case you will be unable to use the supplied anti-tilt locking devise.
  • Page 8 Assembly...
  • Page 9 Parts List Index Description Quantity ramp ramp bolt sets Carriage bolt sets Ramp bracket Spring pull pin reflector carrier tray gear hitch pin M12x70 bolt adjust bolt M10x30 bolt anti tilt lock bracket lock bolt...
  • Page 10 YOU MUST HAND WASH OR USE A TOUCHLESS AUTOMATIC CAR WASH TO PREVENT LIFT DAMAGE. IF YOU HAVE ANY QUESTIONS REGARDING WASHING A CAR EQUIPPED WITH A HARMAR LIFT PLEASE CALL THE HARMAR TECHNINCAL SERVICES DEPARTMENT...
