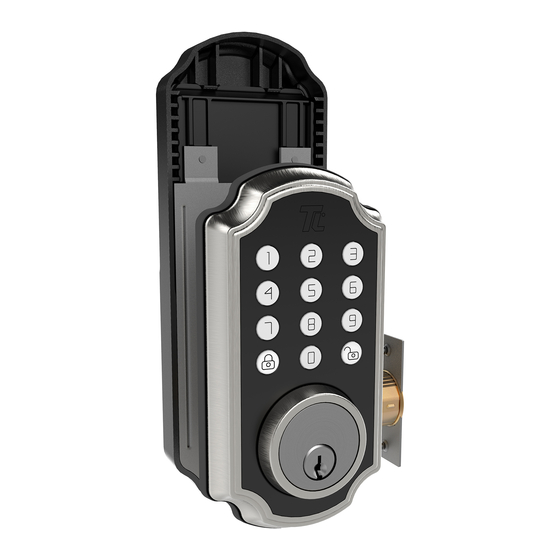

Turbolock TL116 Manual

Smartlock
Hide thumbs
Table of Contents

Advertisement

Quick Links

In order to continue serving our customers and
providing the best products, our product information
including our user manuals may receive updates
from time to time. Please check our website for the
latest user manuals and product materials.
Version 1.0 8/26/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL116 and is the answer not in the manual?

Questions and answers

Related Manuals for Turbolock TL116

Summary of Contents for Turbolock TL116

  • Page 1 In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials. Version 1.0 8/26/19...
  • Page 2 Customer Service: 855-850-8031...

  • Page 3: Table Of Contents

    Table of Contents Section 1 Section 5 Section 10 Information & Safety Warnings Using the Lock Maintenance 1.1 Introduction Section 6 Section 11 1.2 Safety Warnings Keypad Passcodes Troubleshooting 1.3 End-of-Life Disposal 6.1 Changing the Admin Passcode Section 2 Section 12 6.2 Adding Keypad Passcodes Package Contents &...

  • Page 4: Information & Safety Warnings

    1.1 Introduction This user manual will guide you through the functions and usage of your TURBOLOCK TL116. It is important that you follow all instructions and regard all notes that appear throughout this manual. Consult this manual before you attempt to use your lock. If you have questions not answered by this manual or are in need of repair or non-routine service, contact customer service at 1-855-850- 8031.

  • Page 5: End-Of-Life Disposal

    The substances contained inside the battery present chemical risks to the environment. The recommended disposal for any TURBOLOCK TL116 at its end-of-life is to dispose of the entire unit at or through an e-waste recycling center, program, or facility. Local regulations and laws pertaining to the recycling and disposal of certain types of batteries and/or products containing them will vary according to country, state, and local governments.

  • Page 6: Package Contents & Overview

    Section 2 Package Contents & Overview 2.1 Contents TL116 Smartlock x 1 Inside Knob x 1 Latch Assembly x 1 Wood Screws x 6 Mounting Screws x 2 Plate x 1 Keys x 3 the closest point towards 1.Switch must the lock.

  • Page 7: Battery Information

    Low-battery notification will come from the lock itself. 2.4 Usage Overview When using the passcodes, the TL116’s backlight will turn on. Press the “ “ button on keypad to lock. You can also use one of the included physical keys to open the lock directly.

  • Page 8: Installation (Retrofit)

    • For easier installation, have another person help to hold the lock. • Remove all parts of any old lock before installing the TL116. In some cases, the old strike plate and/or box may be used. • For your convenience, installation instructions are broken into segments. Read and follow the instructions for both Pre- Installation and Main Installation.
  • Page 9 (Fig. 4) (Fig. 5) Part 3 - Installing the Strike In most cases, the existing strike plate and setup can be used. If you wish to use the one included with your lock, skip to Section 4.1, Part 3. TURBOLOCK TL116...

  • Page 10: Main Installation

    Step 3. Insert the key into the key hole to turn the latch pin horizontally. The bolt should now be extended (Fig. 8). Step 4. Remove the battery compartment cover on the inside section and turn the inside knob horizontally before installing. Bolt Mounting Screws x 2 Horizontal Latch Pin Power Cable Fig. 7 Fig. 8 TURBOLOCK TL116...
  • Page 11 Inside Section Cover Latch on the left Latch on the right L/R switch pushed to 4 x Batteries L/R switch pushed to L side + thumb turn R side + thumb turn horizontal horizontal Fig. 10 Fig. 11 TURBOLOCK TL116...

  • Page 12: Installation (New)

    This section details installation steps needed if you are installing the TL116 on a door without a cutout. If you are using the TL116 to replace an old lock or if your door otherwise already has a cutout, please go back to Section 3.
  • Page 13 (Fig. 14) (Fig. 15) once in a while to see if it sits flush. If not, chisel a little more and check again. Be careful not to chisel too deep; otherwise, the lock may not function correctly after installation. TURBOLOCK TL116...
  • Page 14 (aka “mortise”) more square. If you choose to use the strike box, you may need to chisel slightly deeper (Fig. 18). If using a spade bit, do not drill at high speeds as this may tear out extra wood and/or damage the door or doorframe. (Fig. 18) TURBOLOCK TL116...
  • Page 15 Step 9. Position the strike and strike box. Add the two remaining Wood Screws and use a screwdriver (not included) to secure them (Fig. 19). TURBOLOCK TL116...

  • Page 16: Main Installation

    Step 3. Insert the key into the key hole to turn the latch pin horizontally. The bolt should now be extended (Fig. 8). Step 4. Remove the battery compartment cover on the inside section and turn the inside knob horizontally before installing. Bolt Mounting Screws x 2 Horizontal Latch Pin Power Cable Fig. 7 Fig. 8 TURBOLOCK TL116...
  • Page 17 Inside Section Cover Latch on the left Latch on the right L/R switch pushed to 4 x Batteries L/R switch pushed to L side + thumb turn R side + thumb turn horizontal horizontal Fig. 10 Fig. 11 TURBOLOCK TL116...

  • Page 18: Using The Lock

    Section 5 Using the Lock To unlock the TL116, use the keypad to enter the passcode, then press ‘ ’. The TL116 will unlock after the voice confirmation (“Opened”). Press “ “ to lock the door as needed. The Admin Passcode must be changed from the default. See Section 6.

  • Page 19: Adding Keypad Passcodes

    Keypad passcodes can be generated so that more people can gain entry access as needed. USE WITH CAUTION. Anyone with the keypad passcode can unlock the TL116 until the keypad passcode is deleted. If more control is needed, refer to Section 8.

  • Page 20: Delete A Single Passcode

    This function is an added security feature aimed at preventing Passcode theft. With Passcode Disguise, you can enter up to 12 digits into the keypad. As long as the correct Passcode sequence is entered, regardless of how many digits were entered before or afterwards, the TL116 will unlock. TURBOLOCK TL116...

  • Page 21: Using The Mute Function

    For example, if your user Passcode is “080808”, you can successfully unlock the TL116 by entering “11354080808”, “11080808”, “10808081” and so on. Section 7 Using the Mute Function USE WITH CAUTION. Remember to turn off the function when it is no longer needed. Do not leave this function on for extended periods of time.

  • Page 22: Resetting The Lock

    Step 1. Remove the cover from the battery compartment at the back of the lock. Step 2. Press and hold the little black button above the battery compartment for ~5 seconds. The TL116 will confirm “Restore factory settings,” then flash three times. After the voice confirmation (“Success”), the TL116 is now reset.

  • Page 23: Specifications

    -4°F~140°F (operating), 5-95%RH (non-condensing) Door Requirements 2.16” (5.5cm) diameter hole, 1.38” - 2.16” (3.5cm - 5.5cm) thickness Warranty 1 Year Limited Section 10 Maintenance Proper cleaning and maintenance of your lock ensures it will continue to work as it should. TURBOLOCK TL116...

  • Page 24: Troubleshooting

    • After cleaning with a cleaner or detergent, wipe off any residue using a second non-abrasive cloth. Be sure to dampen the cloth with clean (purified) water. • The TL116 meets IP65 water-resistance. It can withstand splashes and contact with water once properly installed; however, do not submerge the lock.
  • Page 25 Admin Passcode will return to the default value (see Section 6). If none of the above resolves your issue, please visit our website at www.turbolock.com or contact customer service at 855-850-8031.

  • Page 26: Warranty

    Warranty services are provided by TURBOLOCK Warranty Pro (“WP”). If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, WP will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability;...
  • Page 27 THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY. TURBOLOCK TL116...
  • Page 28 COPYRIGHT © 2019 TURBOLOCK. ALL RIGHTS RESERVED.
