In order to continue serving our customers and providing the best products, our
product information including our user manuals may receive updates from time to
time. Please check our website for the latest user manuals and product materials.
Ver. 1.1 01/05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the tl-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Turbolock tl-200

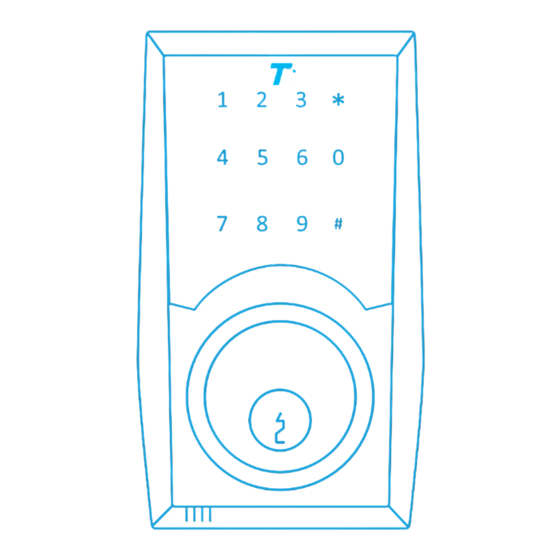

Summary of Contents for Turbolock tl-200

  • Page 1 In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials. Ver. 1.1 01/05...
  • Page 2 Customer Service: 855-850-8031...

  • Page 3: Table Of Contents

    2.3 Battery Information Muting Section 12 Un-muting Section 3 Warranty Installation (Retrofit) Section 8 12.1 Violation The TurboLock App 3.1 Pre-Installation 12.2 Information 3.2 Main Installation 8.1 Installation 8.2 Pairing Section 4 8.3 Generating & Converting Keypad Installation (New) Passwords 4.1 Pre-Installation...

  • Page 4: Information & Safety Warnings

    1.1 Introduction This user manual will guide you through the functions and usage of your TurboLock TL-200 Smartbolt. It is important that you follow all instructions and regard all notes that appear throughout this manual. Consult this manual before you attempt to use your lock.

  • Page 5: Disposal At End-Of-Life

    The substances contained inside the battery present chemical risks to the environment. The recommended disposal for any TurboLock TL-200 Smartbolt at its end-of-life is to dispose of the entire unit at or through an e-waste recycling center, program, or facility. Local regulations and laws pertaining to the recycling and disposal of certain batteries and/or products containing them will vary according to country, state, and local governments.

  • Page 6: Overview

    ” 3 / 8 ” 2 3 / 4 Adjustable Latch Assembly Mounting Screws Wood Screws Inside Screws Strike Plate 2-3/8” (60 mm) or 2-3/4” (70 mm) TurboLock TL - 200 ” 3 / 8 ” 2 3 / 4...

  • Page 7: Product Parts

    2.2 Product Parts Battery Compartment (Batteries not included.) Keypad Battery Cover L/R Switch Keyhole Reset Button Thumb Turn TurboLock TL - 200...

  • Page 8: Battery Information

    • For easier installation, have another person help to hold the lock etc. • Remove all parts of any old lock before installing the TL-200. In some cases, the old strike plate and/or box may be used. • For your convenience, installation instructions are broken into segments. Read and follow the instructions for both Pre- Installation and Main Installation.
  • Page 9 Step 1. With the door open, check it from the back and/or inside of the room. The lock’s parts should be oriented differently depending on whether the lock will be on the left side or right side of the door. TurboLock TL - 200...

  • Page 10: Main Installation

    (Fig. 4) It’s highly recommended to leave the door open and keep the keys in the lock during installation. ” 3 /8 ” 2 3 /4 Latch Pin (Fig. 4) TurboLock TL - 200...
  • Page 11 Check and adjust the plate or cables as needed to make sure the cables are tucked under the lowest peg. Do NOT force the screw through the cables as this will damage the lock and/or make it unusable. ” ” ” 3 /8 ” 2 3 /4 (Fig. 5) TurboLock TL - 200...
  • Page 12 Check and adjust the cables as needed to make sure they are tucked away from any screw hole opening. Do NOT force the screw through the cables as this will damage the lock and/or make it unusable. Silver Center Part Latch Pin (Fig. 6) (Fig. 7) TurboLock TL - 200...

  • Page 13: Installation (New)

    Installation (New) This section details installation steps needed if you are installing the TL-200 on a door without a cutout. If you are using the TL-200 to replace an old lock or if your door otherwise already has a cutout, please go back to page 8.
  • Page 14 Insert the latch back into the door. Step 5. Add 2x wood screws and use a screwdriver (not included) to secure them. TurboLock TL - 200...
  • Page 15 During chiseling, it’s highly recommended to stop and check to see if the strike plate sits flush in the doorframe over the strike box. If not, chisel a little more and check again. Be careful not to chisel too deep otherwise the lock may not function correctly after installation. TurboLock TL - 200...
  • Page 16 Step 2. Remove the battery cover from the inside section of the lock and adjust the switch and thumb turn as needed. Outside Outside Section Section Left Side Door Right Side Door Back switch pushed Back switch pushed to L side + thumb turn to R side + thumb turn vertical horizontal TurboLock TL - 200...

  • Page 17: Main Installation

    Do NOT force the screw through the cables as this will damage the lock and/or make it unusable. ” ” ” 3/ 8 ” 2 3/ 4 (Fig. 11) TurboLock TL - 200...
  • Page 18 Check and adjust the cables as needed to make sure they are tucked away from any screw hole opening. Do NOT force the screw through the cables as this will damage the lock and/or make it unusable. Silver Center Part Latch Pin (Fig. 12) (Fig. 13) TurboLock TL - 200...

  • Page 19: Using The Lock

    Note, regardless of method, the TL-200 will not lock again on its own. To lock the door, close it, press any key so that the keypad lights up, and then press ‘...

  • Page 20: Keypad Passwords

    A micro USB cable and power bank are not included. • The TL-200 also features a Mute Function. See Section 7. • If a password has been entered wrong 3x in a row, regardless of the entry method, the lock will go into a 15-minute period of inactivity where it cannot be used.

  • Page 21: Adding User Passwords

    Step 2. Enter ‘2’ and then press ‘#’ before the light turns off. Next, enter a 5-digit password, then press ‘#’. Step 3. Re-enter the same 5-digit password, then press ‘#’. The password can now be given to a user and used with the lock. TurboLock TL - 200...

  • Page 22: Using The Mute Function

    The TurboLock App For your convenience, there is a TurboLock app that uses Bluetooth technology to interact with the lock. The app is compatible with most Android and iOS smartphones and grants full access to all of the lock’s features. The app allows you to have additional ways to unlock your door, decide who can use passwords and when, keep record of times when the lock is used, set preferences for real- time unlock notifications, and more.

  • Page 23: Installation

    8.1 Installation Step 1. Use your smartphone to search the Play or App Store for the “TurboLock” application. Step 2. Download and install the app according to your operating system. Step 3. Turn on Bluetooth and open the app. Step 4. Register for an account and return to the app.

  • Page 24: Pairing

    • App content subject to change without notification. • App content may differ depending on operating system. Main Interface (Admin View) Main Interface (Admin View) Main Interface (User View) Main Interface (User View) TurboLock TL - 200...

  • Page 25: Generating & Converting Keypad Passwords

    For users without Turbolock app access, the lock’s admin can generate and send a 10-digit code that users can manually enter into the Turbolock to gain access. This 10 digit code can be revoked at any time by the lock’s admin. If needed, the length of the passwords can be entered into the lock and changed to a shorter one so that it is easier to remember.

  • Page 26: Resetting The Lock

    Step 1. Use the keypad to enter the Admin Password, then enter ‘#’. Step 2. Enter ‘3’ and then press ‘#’. If the lock is removed, it will reset as a reset will occur if the internal cables are disconnected and reconnected. TurboLock TL - 200...

  • Page 27: Maintenance

    • Do not let water and liquids get into the lock’s electric parts or battery compartment. Section 11 Troubleshooting If none of the following resolves your issue, please visit our website at www.turbolock.com or contact customer service at 855-850-8031. Solution(s)
  • Page 28 15-minute period of inactivity Wait 15 min. and try again. where it cannot be used. This is a Why is the lock beeping security feature designed to prevent multiple times? unwanted parties from using the lock. TurboLock TL - 200...

  • Page 29: Warranty

    One Year Limited Hardware Warranty Your TurboLock Smartbolt (“Product”) includes a One Year Limited Hardware Warranty (“Warranty”). The Warranty covers product defects in materials and workmanship under normal use. This Warranty is limited to residents of the United States and Canada only and is available only to original purchasers.
  • Page 30 THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY. TurboLock TL - 200...
  • Page 32 COPYRIGHT @ 2017 TURBOLOCK. ALL RIGHTS RESERVED. *Google Play and the Google Play logo are trademarks of Google Inc. *Apple and the Apple logo are registered in the U.S. and other countries as a trademark of Apple Inc. The App Store is registered in the U.S. and other countries as a service mark of Apple Inc.
