Battery Changing Instructions

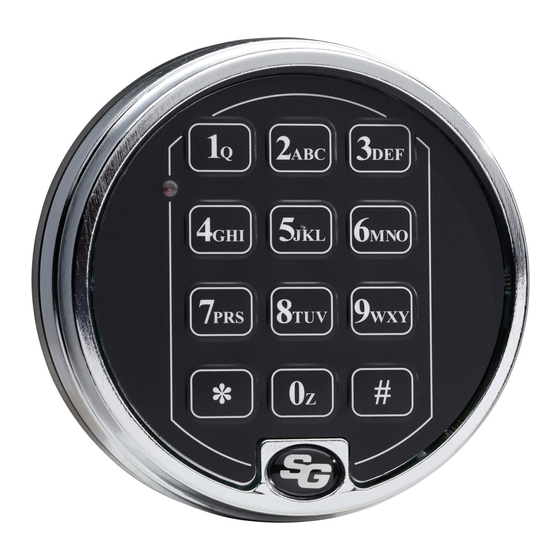

Models 6120 and 6123 Using a One-Battery Keypad

Remove Changing the battery in this keypad is a simple
process. Always handle components and connectors with
care to avoid damage. Battery changing should be performed
with the safe door open.
Step 1— Keypad disassembly is neither required nor advised.
The removable battery holder is accessed from the bottom of the
keypad base. Pull it slightly toward the front of the keypad, then
downward to remove it.
Step 2— As you remove the old battery, you will notice there is
a spring at the bottom of the holder. The new battery will rest on
top of this spring to maintain good electrical contact.
Step 3— Note that the battery is oriented so that the larger
contact is in line with the larger opening in the top of the
battery holder. It's important to orient the new battery this way.
