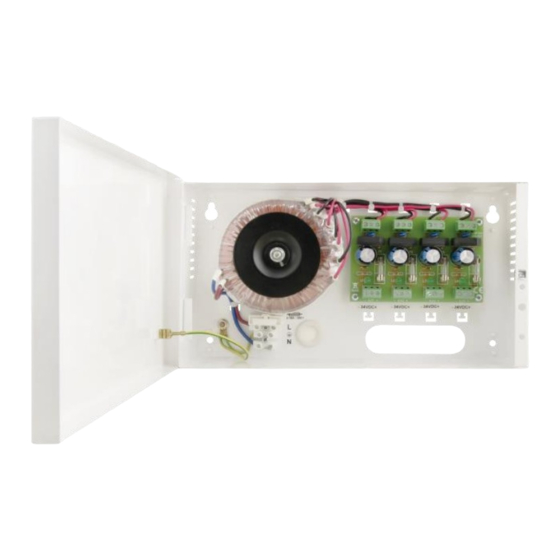

- Page 1 PSCU 04344SEP v.1.0 PSCU 34VDC/4A/4x1A/SEP DC power supply for CCTV EN** Edition: 2 from 07.10.2014 Supersedes the edition: 1 from 10.06.2014...
- Page 2 PSCU 04344SEP PSU features: DC 34V/4x1A unregulated power output Protections: Supply voltage 230V AC Short-circuit protection SCP 4 independent, galvanically isolated outputs overload protection OLP 4 outputs independently protected by 1A fuses transformer overheat protection OHP ...
- Page 3 PSCU 04344SEP 1.3 Description of components and connectors of the power supply (Table.1, Fig.2). Table 1 Components of the LP4/SEP strip (see Fig. 2). Element nr Description AC1÷AC4 –AC power supply input from the transformer F1÷F4 – fuses in the AUX1...AUX4 output circuits L1÷L4 –...
- Page 4 PSCU 04344SEP 1.4 Technical parameters: - Electrical parameters (Table 3) - Mechanical parameters (Table 4) - Safety of use (Table 5) - Operation parameters (Table 6) Electrical parameters (Table 3) Supply voltage 230V AC Current consumption 0,8A@230V AC max.
- Page 5 PSCU 04344SEP The power supply is designed for a continuous operation and is not equipped with a power- switch. Therefore, an appropriate overload protection in the power supply circuit should be provided. Moreover, the user should be informed how to disconnect the power supply unit from the mains supply (usually by assigning an appropriate fuse in the fuse box).
- Page 6 PSCU 04344SEP Typical distances between the power supply and the DCDC converter (Table 7): The distance between the PSCU04344 power supply unit Cross- Cable type: According and the DC/DC converter: section to AWG Current consumption of the Current consumption of the...
- Page 7 THE GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a five-years warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects,...
- Page 8 PSCU 04344SEP Pulsar K.Bogusz Sp.j. Siedlec 150, 32-744 Łapczyca, Poland Phone (+48) 14-610-19-40, Fax (+48) 14-610-19-50 E-mail: biuro@pulsar.pl, sales@pulsar.pl http:// www.pulsar.pl, www.zasilacze.pl...
