- Page 1 PSCU 04344SEP v.1.1 PSCU 34VDC/4A/4x1A/SEP Power supply for 4 HD cameras, 4A, for transmission lines EN** Edition: 5 from 08.01.2018 Supersedes the edition: 4 from 08.06.2017...
- Page 2 PSCU 04344SEP PSU features: DC 34V/4x1A unregulated power output Protections: Supply voltage 230V AC Short-circuit protection SCP 4 independent, galvanically isolated outputs overload protection OLP 4 outputs independently protected by 1A fuses transformer overheat protection OHP ...
- Page 3 PSCU 04344SEP TABLE OF CONTENTS: 1. Technical description. 1.1 General description 1.2 Block diagram 1.3 Description of components and connectors of the power supply 1.4 Technical parameters 2. Installation. 2.1 Requirements 2.2 Installation procedure 3. Optical indication. 4. Service and operation.

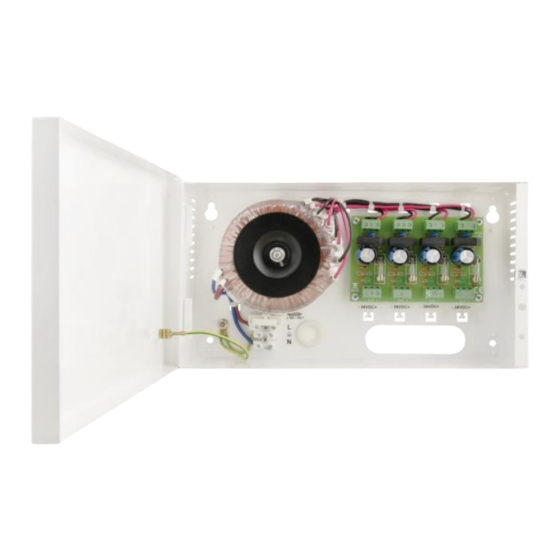

- Page 4 PSCU 04344SEP Fig. 2. The view of the LP4/SEP strip. Tab.2 Components of the PSU (see Fig. 3). Element Description [Fig. 3] Isolation transformer LP4/SEP rectifying strip – fuse in the power supply circuit (230V AC) MAIN L-N power supply connector 230V AC, protective connector PE Table 2.
- Page 5 PSCU 04344SEP Electrical parameters (Table 3) Supply voltage 230V AC Current consumption 0,8A@230V AC max. PSU’s power 120W max. 30V÷ 35V DC (100% load ÷ 0% load) Output voltage Output current 4x1A@30V DC max. Short-circuit protection SCP 4x T 1A melting fuse (failure requires fuse replacement)
- Page 6 PSCU 04344SEP 2.2 Installation procedure. 1. Before installation, make sure that the voltage in the 230V power-supply circuit is cut off. 2. Mount the PSU in a selected location and lead the connection cables. 3. Connect the power cables (230V AC) to the L-N terminals of the PSU. Connect the ground wire to the terminal marked with the PE symbol (power supply module connector).
- Page 7 PSCU 04344SEP WEEE MARK According to the EU WEE Directive – It is required not to dispose of electric or electronic waste as unsorted municipal waste and to collect such WEEE separately Pulsar Siedlec 150, 32-744 Łapczyca, Poland Phone (+48) 14-610-19-40, Fax (+48) 14-610-19-50 E-mail: biuro@pulsar.pl,...
