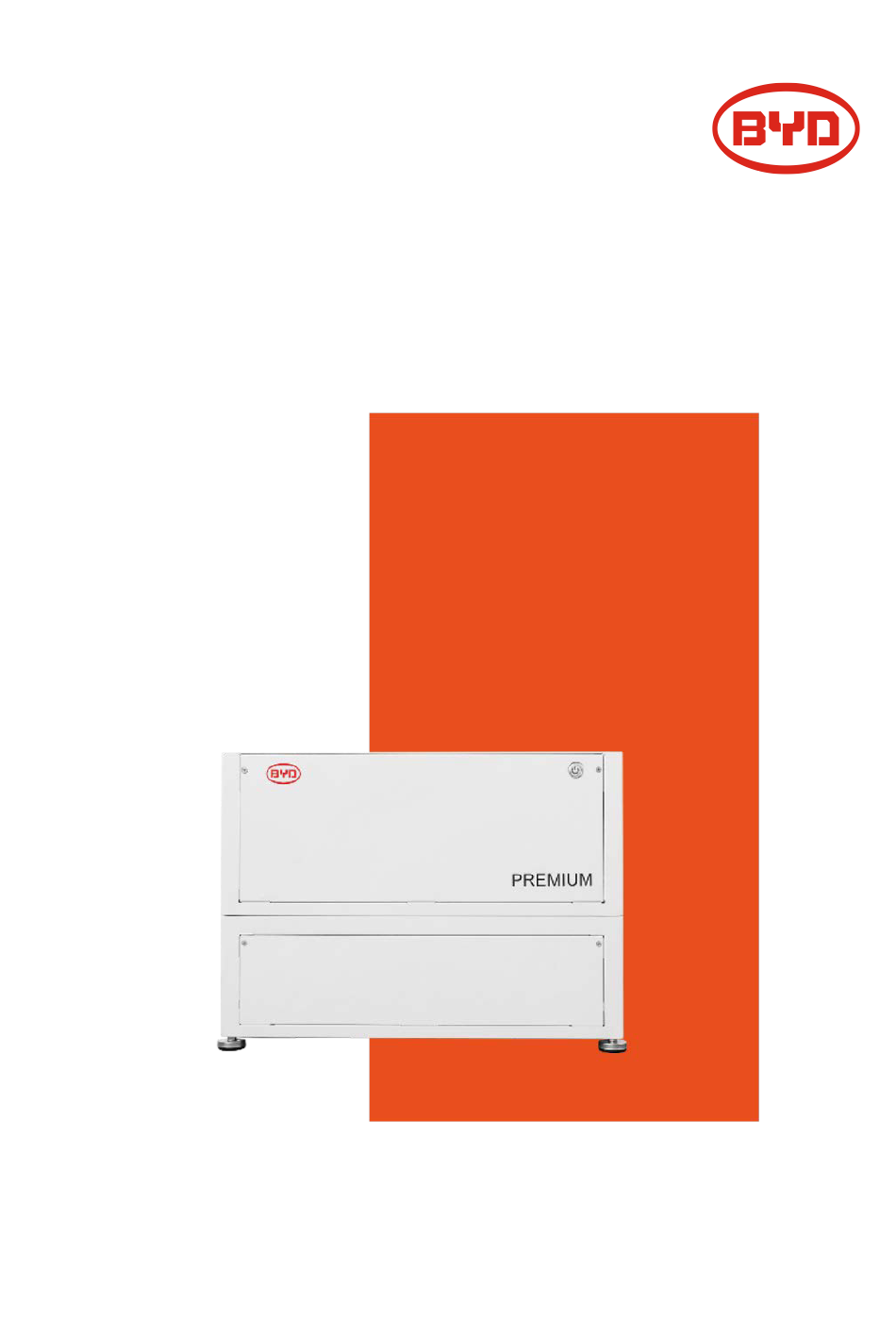

- Page 1 BYD Battery-Box Premium Operating Manual LVL 15.4 BYD Europe B.V. V1.0...
-
Page 2: Legal Provisions
Legal Provisions All the information in this document is the property of BYD Europe B.V. No part of this document could be reproduced in any way for business use. Internal use is allowed. BYD Europe B.V. makes no representations or warranties express or implied, with respect to this document or any of the equipment and firmware it may describe, including (with no limitation) any implied warranties of utility, merchantability, or fitness for any particular purpose. -
Page 3: Table Of Contents
Content Legal Provisions ..........................2 Information on this Document ..................... 6 1.1. Validity ..........................6 1.2. Target Group ........................6 1.3. Content and Structure of This Document ................. 6 1.4. Levels of Warning Messages ................... 6 1.5. Symbols in the Document ....................7 1.6. - Page 4 4.2. Interface ......................... 14 4.3. Symbols on the Battery System ..................14 4.4. LED Signals ........................16 Installation ..........................17 5.1. Requirements for Installation..................17 5.2. Installation ........................17 5.2.1. Needed Tools ...................... 17 5.2.2. Single Battery System Installation ................ 18 5.2.3.
- Page 5 Commissioning ........................28 7.1. Commission the Battery System ..................28 7.2. Configure the Battery System ..................29 7.3. Commission the Inverter ....................30 7.4. Stop the system ......................30 Decommissioning ........................31 Extension ..........................32 Trouble Shouting ....................... 32 10.1. Overview ........................
-
Page 6: Information On This Document
1. Information on this Document 1.1. Validity This document is valid for the Battery-Box Premium LVL 15.4 from firmware version 1.0. 1.2. Target Group The instructions in this document may only be performed by qualified persons who must have the... -
Page 7: Symbols In The Document
Sections describing activities to be performed by qualified persons only 1.6. Designation in the Document Designation in this document Complete designation battery system Battery-Box Premium LVL 15.4 Battery Management System Battery Management Unit Battery Information Collector BYD Europe B.V. MOSFET... -
Page 8: Safety
2. Safety 2.1. Intended Use BYD Battery-Box Premium LVL 15.4 is for residential and small business use and works with a photovoltaic system. It is a 48V Li-ion battery storage system. It could be operated in either off-grid or on-grid mode with compatible inverters. -
Page 9: Firefighting Measures
Inhalation: Evacuate the contaminated area and seek medical help immediately. Eye contact: Rinse eyes with flowing water for 15 minutes and seek medical help immediately. Skin contact: Wash the affected area thoroughly with soap and water and seek medical help immediately. -
Page 10: Surge Protection
• Do not attempt to open, disassemble, repair, tamper with, or modify the battery modules. The battery modules are not user-serviceable. • Do not use cleaning solvents to clean the battery modules. 2.6. Surge protection DANGER Danger to life due to electric shock in case of overvoltages and if surge protection is missing Overvoltages (e. g. -
Page 11: Notice Of Property Damage
2.8. Notice of Property Damage NOTICE Damage to the battery system due to under voltages If the battery system doesn't start at all, please contact BYD local after-sales service within • 48 hours. Otherwise, the battery could be permanently damaged. -
Page 12: Scope Of Delivery
3. Scope of Delivery Position Designation Battery module 1 Battery module 2 Power cable L2 Power cable L3 Screw M6×16 Screw 10×16 Screw M5×14 Network cable Grommets (small size) Bonding strip for connecting and fixing B1 and B2 Alignment pins... -
Page 13: Battery System Overview
4. Battery System Overview 4.1. Battery System Description The BYD Battery-Box Premium LVL 15.4 is used as a connected battery for the intermediate storage of excess PV energy in an inverter system. It works together with Battery-Box Premium LV BMU. The parameters and instruction of BMU could be read on our websites. -
Page 14: Interface
BMU is equipped with an Ethernet interface as a standard. When your battery system is linked with the Internet, it will join our Be Connect Monitoring system. Be Connect Monitoring is a platform for BYD to provide remote service to customers. It can diagnose your battery system, and update the firmware. - Page 15 Grounding conductor This symbol indicates the position for connecting a grounding conductor. WEEE designation Do not dispose of the battery system together with the household waste but in accordance with the disposal regulations for electronic waste applicable at the installation site. CE marking The battery system complies with the requirements of the applicable EU directives.
-
Page 16: Led Signals
Do not short circuit. 4.4. LED Signals Flashing white BMU and the battery blue system are initiating. alternatively Idle (the battery system Glowing white is neither charging nor discharging). Flashing white The battery system is slowly charging. Flashing white The battery system is quickly discharging. -
Page 17: Installation
5. Installation 5.1. Requirements for Installation Requirements for installation location: a) A solid support surface must be available (e.g., concrete or masonry). b) The installation location must be inaccessible to children. The installation location must be suitable for the weight and dimensions of the system. d) The installation location must not be exposed to direct solar irradiation. -
Page 18: Single Battery System Installation
Screwdrivers Wrench 5.2.2. Single Battery System Installation Procedure: 1. Unpack the battery system. 2. Pile B2 above B1. Make sure the two alignment pins are in the right place. 3. Screw up the four plastic bolts on the top cover of the B2 module. -
Page 19: Single Stack Installation
6. Use the bonding strips to fix B1 and B2 with screws M5×14.(Torque, 4.5 Nm) 5.2.3. Single Stack Installation Maximum of two battery systems could be piled up. Two battery systems installed like that could be called a single stack. Procedure: 1. -
Page 20: Multiple Stacks Installation
8. Insert two alignment pins on top of B2 (the first system). 9. Pile B2 (the second battery system) right above B1 (the second battery system). 10. Screw up four plastic bolts on top of the B2 (the second battery system). -
Page 21: Electrical Connection
6. Electrical Connection 6.1. Connection Diagram 6.1.1. Single battery system The designation of the INVERTER port on BMU could be read below. Assignment 485-A 485-B Unused CAN H CAN L Unused Unused Unused... -
Page 22: Single Stack Of Battery System
Our compatible inverters’ communication ports with BMU designation could be read below. 6.1.2. Single Stack of Battery System The battery system connected to BMU is appointed as Address 1, and the battery system connected to Address 1 is appointed as Address 2. -
Page 23: Multiple Battery Systems
6.1.3. Multiple Battery Systems The battery system connected to Address 2 is appointed as Address 3, and so on. 6.2. Single Battery System Connection 6.2.1. Connect grounding conductor Additionally required mounting material (not included in the scope of delivery): Grounding cable... -
Page 24: Internal Communication Cable Connection
Cable requirements: Conductor SC16-6 Grounding cable cross-section: max. 16 mm² Procedure: S C 1 6 - 6 1. Pass the ground conductor through PE port. 2. Connect with grounding point, with a screw M6×12. (Torque, 8Nm). 3. The other side of the grounding cable should be connected to the common ground. -
Page 25: Internal Power Cable Connection
6.2.3. Internal power cable connection Procedure: Take off the protective cover of B1- ( negative terminal of B1); These covers won`t be used again. Pass the cable L2 through the second cable hole on the right side of the front bottom layer on B2. Connect power cable L2 to B- with a screw M10×16.(Torque, 11.5Nm) Connect L2 to B1- ( negative terminal of battery module... -
Page 26: Data Cable Connection To Bmu
6.2.4. Data Cable Connection to BMU Procedure: 1. Check whether the terminal resistor is at the ‘OUT’ port. There should be a terminal resistor if only one battery system is operated. 2. Lead the data cable into the battery system through small size grommet above the ‘IN’... - Page 27 Cable requirements: Conductor SC16-6. Grounding cable cross-section: max. 16 mm². b. Two DC power cables Cable requirements: Conductor cross-section: Up to 70 mm², following the requirements of the inverter. Maximum cable length: 5 m. Conductor SCXX-10. ...
-
Page 28: Multiple Battery System Connection
6.4. Multiple Battery System Connection For multiple battery systems, the connection method is similar. There is a hole with a grommet at the left side wall of the battery system near the 'OUT' port. The internal data cable could go through the hole to connect another battery system. Each stack should have a grounding cable. -
Page 29: Configure The Battery System
BMU. If the password couldn`t be found, or it doesn`t work, try the default password ‘BYDB-Box’. It is recommended to Privacy Policy of SHEN ZHEN BYD turn off cellular data of your cell phone to keep the stability of the ELECTRONIC CO,.LTD connection between the app and the battery system. -
Page 30: Commission The Inverter
6. After the firmware update, you can set time and choose an inverter brand. System Time Inverter Grid Inverter Back Configuration Configuration Service Service Contact Contact 7. Choose LVL and set how many battery systems are installed in parallel. 8. Set grid information. Time Inverter System... -
Page 31: Decommissioning
8. Decommissioning CAUTION Risk of injury due to weight of battery modules Injuries may result if the battery system is lifted incorrectly or dropped while being transported or when attaching it to or removing it. Transport and lift the battery system carefully. Take the weight of the system into account. •... -
Page 32: Extension
9. Extension The battery system could be extended at any time. The SOC of the existing battery system and the module to be added should be similar before the module adding on the existing system. Procedure: Get the SOC figure of the new battery module. Charge or discharge the existing battery system to a similar SOC level. -
Page 33: Error Codes On Bms
10.3. Error codes on BMS Blue LED is flashing once DC cable connection incorrect Blue LED is flashing two times MOSFET failure Blue LED is flashing three times BIC communication failed Blue LED is flashing four times Battery sensor failure Blue LED is flashing five times Volt sensor failure Blue LED is flashing six times... -
Page 34: Disposal Of Battery Systems
Do not dispose of the system with your household waste. • Avoid exposing the batteries to high temperatures or direct sunlight. • Avoid exposing the batteries to high humidity or corrosive atmospheres. • For more information, please contact BYD. •... -
Page 35: Technical Data
≥95% Scalability Max. 64 in Parallel (983 kWh) Certification IEC62619 / CE / CEC / UN38.3 Applications ON Grid / ON Grid + Backup / OFF Grid Warranty [3] 10 Years Compatible Inverters Refer to BYD Battery-Box Premium LVL Minimum... -
Page 36: Declaration Of Conformity
• Low Voltage Directive 2014/35/EU (29.3.2014 L 96/357-374) (LVD) • Radio Equipment Directive 2014/53/EU (22.5.2014 L 153/62) (RED) BYD Europe B.V. confirms herewith that the battery systems described in this document are in compliance with the fundamental requirements and other relevant provisions of the above-... -
Page 37: Contact Information
Contact Information BYD Global Service bboxservice@byd.com Social media link Telephone: +86 755 89888888-47175 https://www.facebook.com/BatteryBoxBYD/ Address:No.3009,BYD Road, https://twitter.com/BYD_BatteryBox Pingshan,Shenzhen,518118,P.R.China https://www.linkedin.com/company/byd-battery-b www.bydbatterybox.com Australia Alps Power Pty Ltd Europe EFT-Systems GmbH service @alpspower.com.au service@eft-systems.de Telephone: +61 2 8005 6688 Telephone +49 9352 8523999...
