NetVanta 4300/4400 Series
Step
1
Remove power from the unit.
2
Remove the cover plate from the appropriate option slot on the rear panel of the unit.
3
Slide the option module into the option slot until the module is firmly seated against the chassis.
4
Secure the pins at both edges of the module.
5
Connect the cables to the associated device(s).
6
Restore power to the unit.
CONSOLE
61200890E2-34T
Instructions for Installing the NIMs and Wide NIMs
SLOT 3 WIDE MODULE

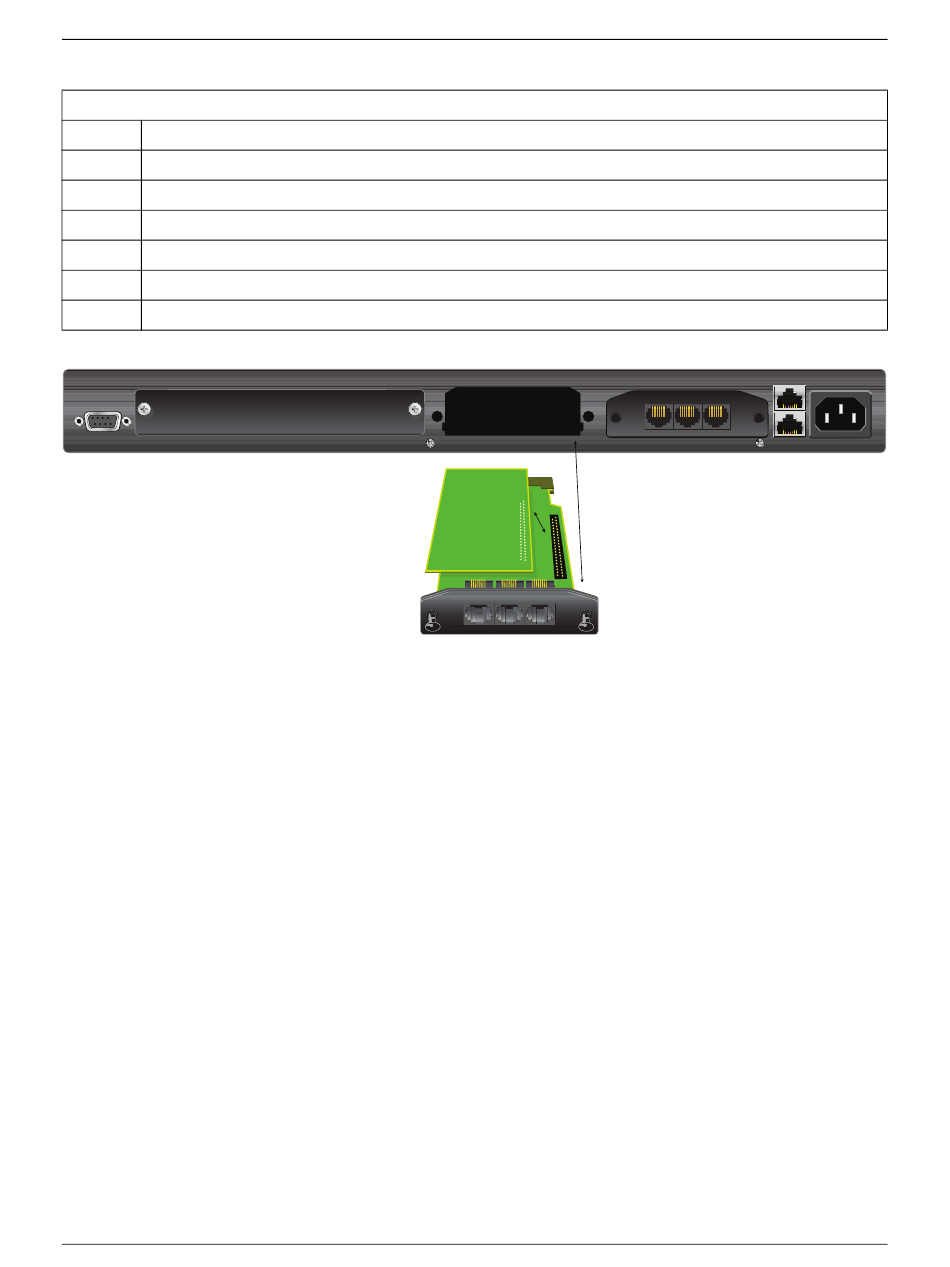

Figure 22. NIM and DIM Installation
Copyright © 2019 ADTRAN, Inc.
Action
WAN-T1
SLOT 2 NET/DBU
SLOT 2 NET/DBU
WAN-T1
DSX-1
DBU
Unit Installation
ETH 0/2
100-250VAC
50/60Hz
DSX-1
DBU
SLOT 1 NET/DBU
ETH 0/1
