Step 2: Installing The Option - Datamax H-Class Quick Start Manual

Step 1: Preparing the Printer (continued...)

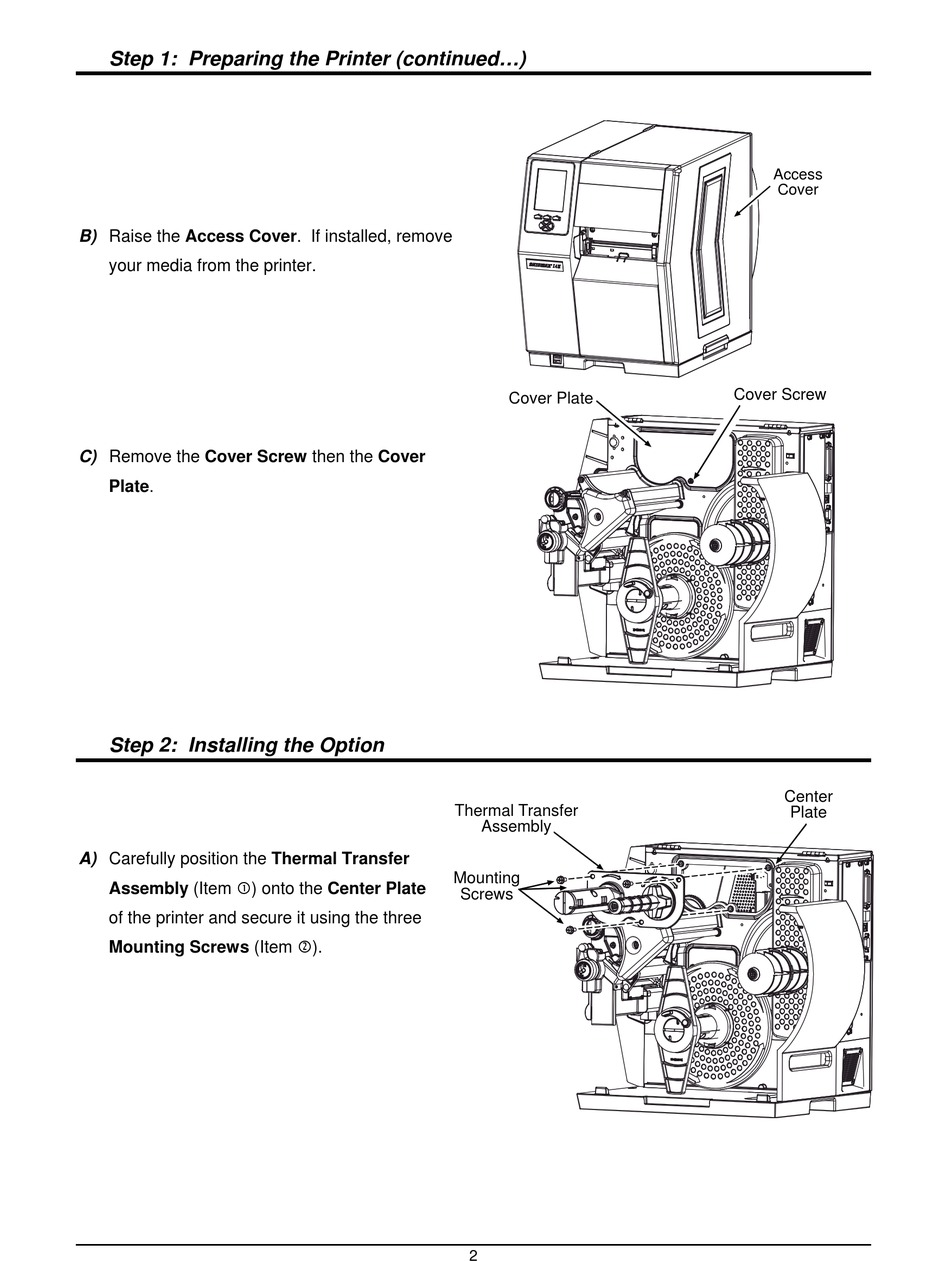

B) Raise the Access Cover. If installed, remove
your media from the printer.
C) Remove the Cover Screw then the Cover
Plate.

Step 2: Installing the Option

A) Carefully position the Thermal Transfer
Assembly (Item ) onto the Center Plate
of the printer and secure it using the three
Mounting Screws (Item ).
Cover Plate
Thermal Transfer
Assembly
Mounting
Screws
2
Access
Cover
Cover Screw
Center
Plate
