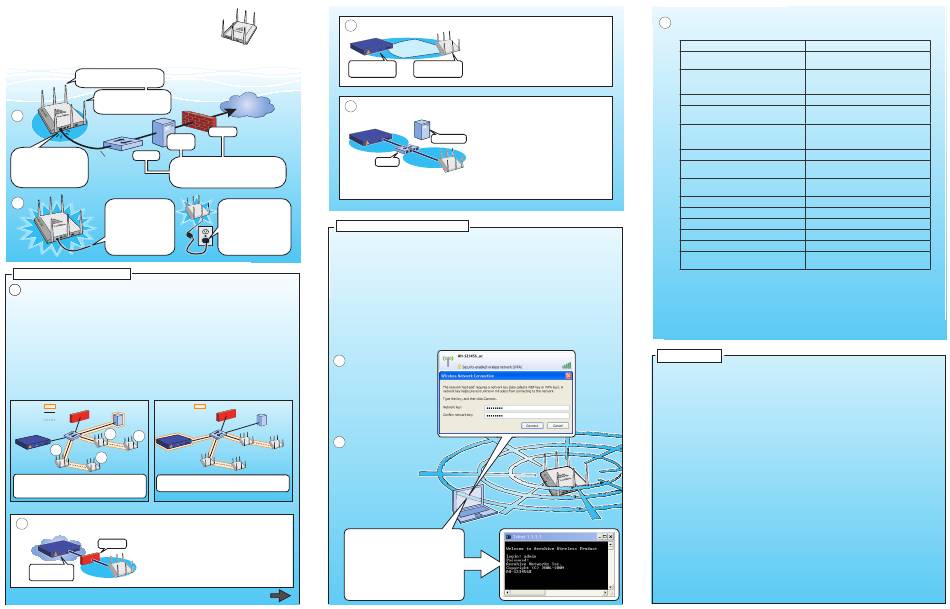

Aerohive QuickStart
for the HiveAP 340
This QuickStart guide explains how to set up a HiveAP 340 so it can make a network connection to
HiveManager, and how to mount it on a ceiling or wall.
Attach the shorter antennas
to the 5 GHz connectors...
and the longer ones to
the 2.4 GHz connectors
on the Eth0 port side.
1
Eth0
DHCP
Server
Connect a standard
Switch
Ethernet cable with
Ethernet
Some other network devices (They
RJ-45 connectors from
Cable
might all be incorporated in the same
ETH0 on the HiveAP 340
device, such as a router or firewall.)
to a switch.
2
If the switch provides
PoE (Power-over-
Ethernet), cabling the
HiveAP to the switch
will cause the HiveAP
to power on in a few
seconds.

Connecting to HiveManager

3
Cable the HiveAP to an Ethernet network—a HiveAP connected directly to the network
like this is called a portal (P)—or place it within radio range of a portal so that it forms
a wireless link through the portal to the wired network. This kind of HiveAP is called a
mesh point (MP). By default, a HiveAP acts as a DHCP client and gets its network settings
automatically from a DHCP server. (You can also configure it with static network settings
through the CLI. See the next section, "Using the Virtual Access Console".)
CAPWAP (Control and Provisioning of Wireless Access Points) is a protocol that access points
use to contact a management device and communicate with it. After getting its network
settings through DHCP, the HiveAP then acts as a CAPWAP client and sends CAPWAP Discovery
messages until HiveManager, acting as the CAPWAP server, responds. A mesh point initially
forms a hive with its portal using a default hive called hive0. Through this link, the mesh
point can reach the network and get its network settings from the DHCP server. Then it can
form a CAPWAP connection with HiveManager. (To add mesh points after changing the hive
name, first connect them to the wired network. Next, push the configuration with the new
hive name and password to them from HiveManager. Finally, deploy them as mesh points.)
DHCP traffic CAPWAP Traffic
DHCP Server
Wired link
Wireless link
HiveManager
HiveManager
P
MP
P
MP
First, HiveAP portals and mesh points access Second, they connect with the CAPWAP
a DHCP server to get their network settings; server (HiveManager).
that is, unless you configure them yourself.
The HiveAP 340 can form a CAPWAP connection to HiveManager in one of these ways:
a
HiveManager Online (its domain name If the HiveManager Online domain name is
is preconfigured on the HiveAP) preconfigured on the HiveAP as the CAPWAP
server, the HiveAP makes a secure CAPWAP
Firewall connection to it by sending unicast Discovery
Request messages to that domain name. Make
sure that the firewall allows the following
outgoing traffic: CAPWAP (UDP port 12222) for
HiveManager
management traffic and SSHv2 (TCP port 22) for
Online
HiveOS image and full configuration uploads.
P/N 330025-02 Rev. A
b
Same Subnet (Automatic Discovery)
HiveManager
CAPWAP Server
c
Internet
Different Subnets (DNS Resolution)
Firewall
Router
Note: For further options, see "Connecting to the CAPWAP Server" in the HiveOS and
HiveManager release notes.
If the switch does not
provide PoE, use the
AC/DC power adaptor

Using the Virtual Access Console

(available as an
accessory) to connect
the HiveAP to a 100-
As explained in the previous section, after connecting a HiveAP to the network and powering
240 AC power source.
it on, it acts as a DHCP client and tries to get its network settings automatically from a DHCP
server in VLAN 1. However, if there is no DHCP server in that VLAN, if the native VLAN for the
network segment is not 1, or if you just want to assign it a static IP address, then you need to
access the CLI and define the network settings yourself.
One approach is to use a console cable, which is available from Aerohive as an accessory.
Another is to use the virtual access console. This is a way of accessing the CLI on a HiveAP
wirelessly through a special SSID that the HiveAP, by default, automatically activates for
administrative access when it has no configuration and cannot reach its default gateway.
The default virtual access console SSID name is "<hiveap-hostname>_ac". The default host
name of a HiveAP consists of "AH-" plus the last six digits of its MAC address; for example,
AH-123456. In this case, the name of the default virtual access console SSID would be "AH-
123456_ac". By default, this SSID uses aerohive as the PSK (preshared key) for authenticating
user access. To access the virtual access console, do the following:
4
Using your wireless client,
scan for wireless networks.
If you are within range, an
SSID such as "AH-123456_ac"
appears.
Select it, and when
prompted to enter a
DHCP Server
network key, type aerohive
and then click Connect.
5
Check the IP address of the
default gateway that the
DHCP server on the HiveAP
assigned your client. Then
make an SSH or
Telnet connection
to the HiveAP at that IP
address. When prompted to
enter your credentials, enter
the default Aerohive login name
(admin) and password (aerohive).
C:\>ipconfig
Windows IP Configuration
Ethernet adapter Wireless
Network Connection:
Connection-specific DNS Suffix
IP Address. . . . . . : 1.1.1.2
Subnet Mask . . . . . : 255.255.255.0
Default Gateway . . . : 1.1.1.1
C:\>telnet 1.1.1.1
If the HiveAP does not have the HiveManager
IP address or domain name in its configuration,
it broadcasts CAPWAP Discovery Request
messages until it receives a response from a
Broadcast
HiveManager system in the same broadcast
domain. The two devices then form a secure
HiveAP 340
CAPWAP connection.
CAPWAP Client
If HiveManager is in a different subnet,
add a DNS A or host record that resolves
"hivemanager" to the HiveManager IP address.
By default, HiveAPs perform a DNS lookup
to resolve "hivemanager.<domain>" to an
DNS Server
IP address, where <domain> is the domain
that the DHCP server assigns the HiveAPs.
The HiveAPs then make a secure CAPWAP
Unicast
connection with the HiveManager system at
that domain name.
Beacons
Wireless
Client
. :
6
After logging in to the virtual access console, you can view the status of various
functions and make configuration changes. Here are some commonly used commands.
Use these commands:
show interface
show interface mgt0
no interface mgt0 dhcp client
interface mgt0 ip <ip_addr>
<netmask>
interface mgt0 native-vlan <id>
show capwap client
capwap client server name
<string>
capwap client vhm-name <string>
show hive
show hive <string> neighbor
hive <string> ...
show ssid
ssid <string> ...
interface { wifi0 | wifi1 } ssid
<string>
To see a list of commands, and their accompanying CLI Help, type a question mark ( ? ).
For example, to see all the show commands, enter show ?
If you want to find a command that uses a particular character or string of characters,
you can do a search using the following command: show cmds | include
<string>, where <string> is the word or string of characters you want to find.
Device- and platform-specific CLI reference guides are available online. (To learn how
to access them, see "Where to go for more information" elsewhere in this document.)

Status LEDs

The five status LEDs on the top of the HiveAP 340 indicate various states of activity
through their color (dark, green, amber, and red) and illumination patterns (steady
glow or pulsing). The meanings of the various color + illumination patterns for each
LED are explained below.
Power
• Dark: No power
• Steady green: Powered on and the firmware is running normally
Beacons
• Pulsing green: Firmware is booting up
• Steady amber: Firmware is being updated
• Pulsing amber: Alarm indicating a firmware issue has occurred
• Steady red: Alarm indicating a hardware issue has occurred
ETH0 and ETH1
• Dark: Ethernet link is down or disabled
• Steady green: 1000 Mbps Ethernet link is up but inactive
• Pulsing green: 1000 Mbps Ethernet link is up and active
• Steady amber: 10/100 Mbps Ethernet link is up but inactive
• Pulsing amber: 10/100 Mbps Ethernet link is up and active
WIFI0 and WIFI1
• Dark: Wireless interface is disabled
• Steady green: Wireless interface is in access mode but inactive
• Pulsing green: Wireless interface is in access mode and active
• Steady amber: Wireless interface is in backhaul mode but inactive
• Pulsing amber: Wireless interface is in backhaul mode and is connected with
other hive members
• Alternating green and amber: Wireless interface is in backhaul mode and is
searching for other hive members
To do the following:
Check the status of both wired and
wireless interfaces
See the network settings (IP address,
netmask, default gateway) and VLAN ID
of the mgt0 interface
Disable the DHCP client
Set the IP address and netmask of the
mgt0 interface
Set the native (untagged) VLAN that the
switch infrastructure in the surrounding
wired and wireless network uses
See CAPWAP client settings and status
Set the IP address or domain name of the
CAPWAP server (HiveManager)
Set the VHM (virtual HiveManager) to
which the client belongs
See the hive name
Check for any neighboring hive members
Create a hive and set its parameters
See a list of all SSID names
Configure an SSID
Bind an SSID to a wireless interface in
access mode
