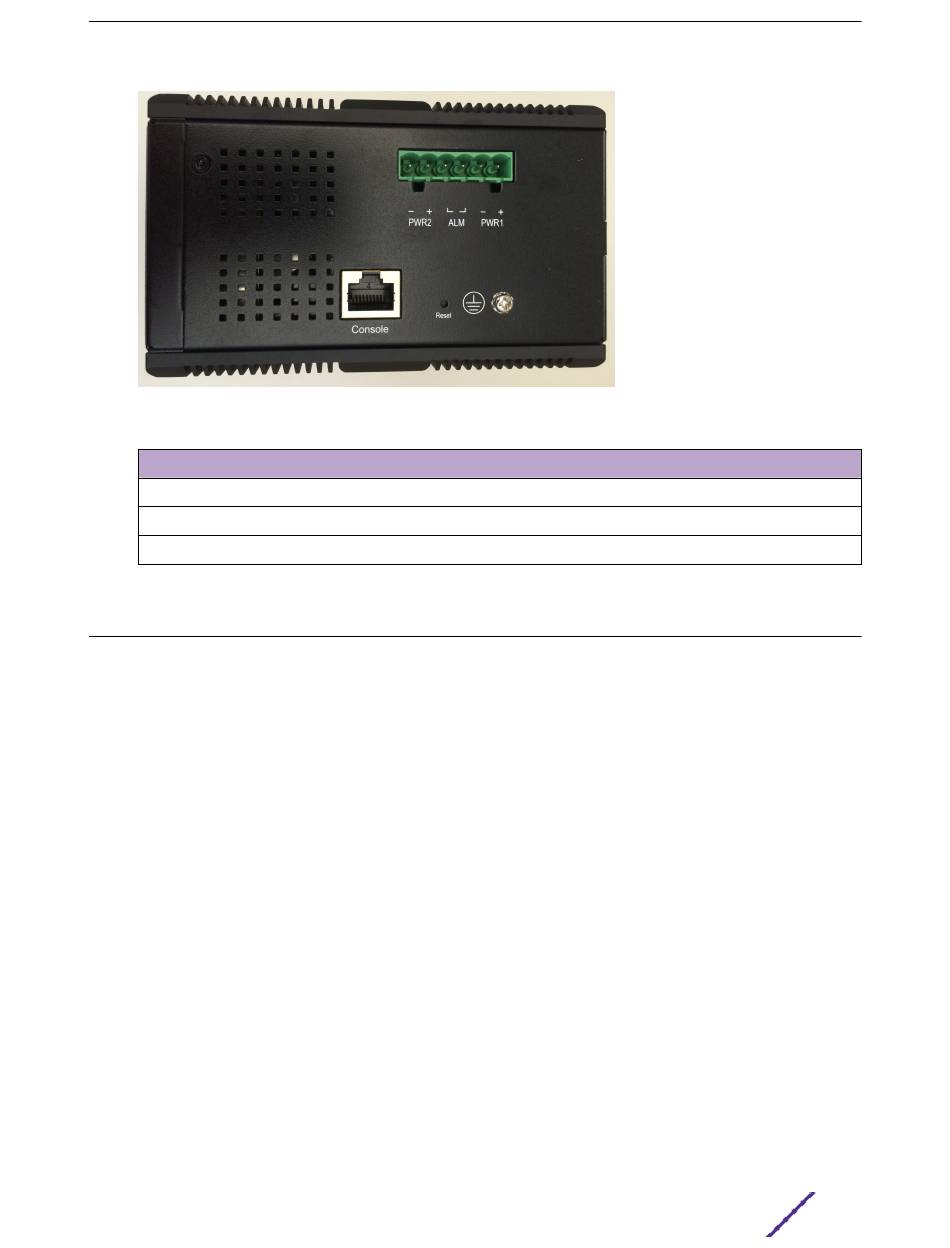

Figure 3: Top Panel
Top Panel
Power Input (Dual)
Console (RS232)
Reset
Alarm Relay and Ground Connection
The alarm relay output contacts are in the middle of the DC terminal block connector as shown in
4.
The alarm relay out is "Normal Open," and it will be closed when detected any predefined failure such as
power failures or Ethernet link failures.
The relay output with current carrying capacity of 0.5A @ 24 VDC.
ISW Series Managed Industrial Ethernet Switch Quick Installation Guide
6P Terminal Block
RJ45
Push Button
Industrial Series Switch Overview
Figure
11
