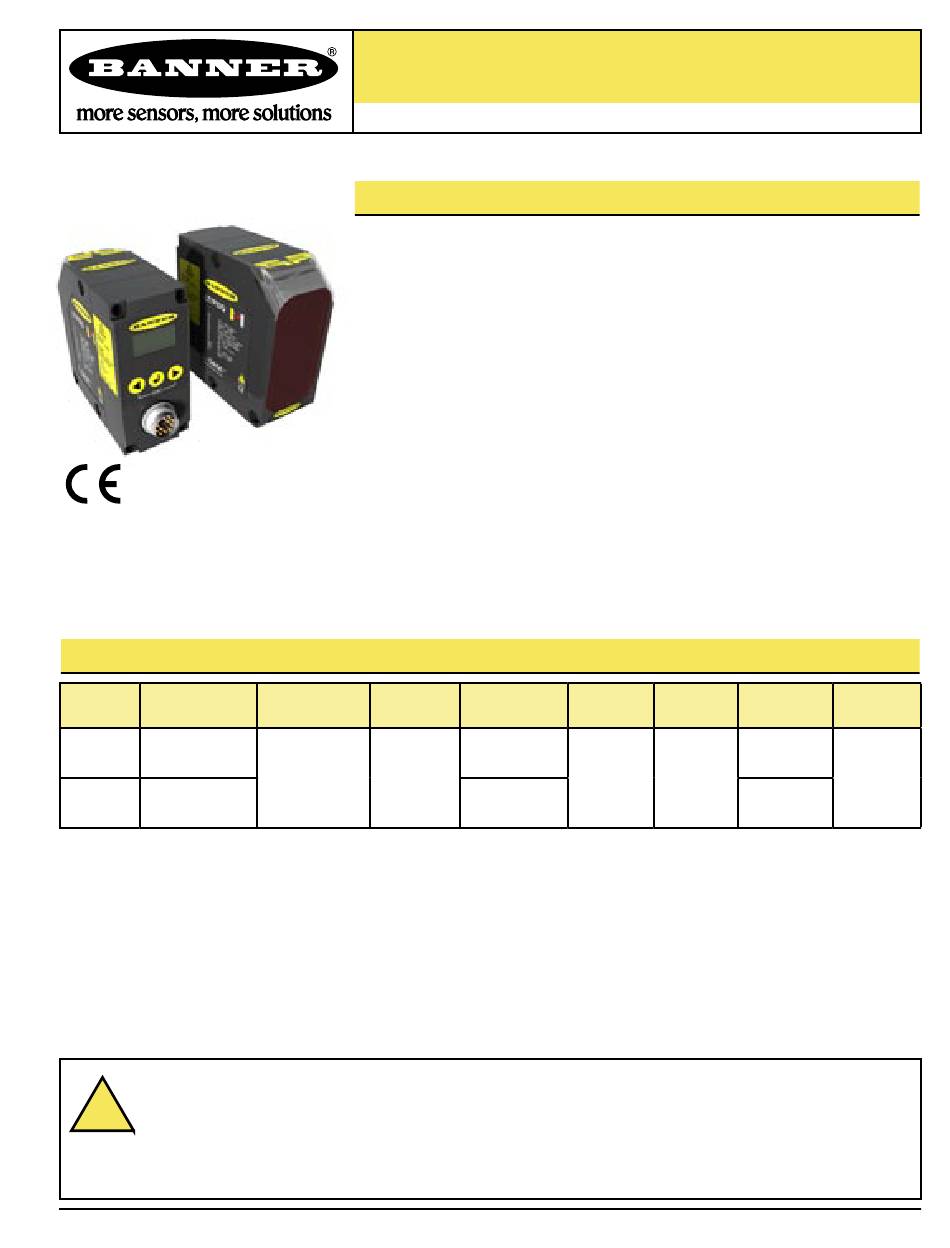

Banner L-GAGE LT7PIDQ Manual

Sensing
Models Mode
LT7PIDQ Diffuse
LT7PLVQ Retroreflective
* Requires a mating cable; see page 20.
** Diffuse-mode range specified using a 90% reflectance white card.
Retroreflective-mode range specified using the appropriate specified retro target; see page 22.
WARNING . . .
!
Never use these products as sensing devices for personnel protection. Doing so could lead to serious injury or death.
These sensors do NOT include the self-checking redundant circuitry necessary to allow their use in personnel safety applications.
A sensor failure or malfunction can cause either an energized or de-energized sensor output condition. Consult your current
Banner Safety Products catalog for safety products which meet OSHA, ANSI and IEC standards for personnel protection.
Printed in USA
®
L-GAGE
Self-contained retroreflective- and diffuse-mode laser distance sensors
• Extremely long range: diffuse model up to 10 m with white target, up to 7 m with
gray target, up to 3 m with black target; up to 250 m for retroreflective models
• Visible pilot laser for easy alignment
• Multiple outputs in each model:
- Discrete outputs can be used for precision background suppression
- Alarm outputs together with display provide easy troubleshooting
Diffuse models: Two discrete (PNP) plus 2 alarm outputs, and 4-20 mA analog
Retroreflective models: Two discrete (PNP) plus 2 alarm outputs
• Fast, easy-to-use TEACH-mode programming via integrated push-buttons or serial
interface (no potentiometer adjustments)
• Ongoing LCD display of sensing distance (selectable in hundredths of an inch
or millimeters)
• RS422- or SSI-compatible serial connection options
Laser
Class Cable*
Class 2 Integral
Pilot Laser, 12-pin
Class 1 M16 QD
Sensing Laser connector
Not To Be Used for Personnel Protection
LT7 Long-Range Time-of-Flight Laser Sensor
Features
Models
Sensing Supply
Range** Voltage
0.5 to 10 m
(20" to 33')
18 to
30V dc
0.5 to 250 m
(20" to 820')
02/05
Discrete Analog
Outputs Output
4-20 mA
2 PNP
RS422
plus
or SSI
2 Alarm
N/A
P/N 120244
