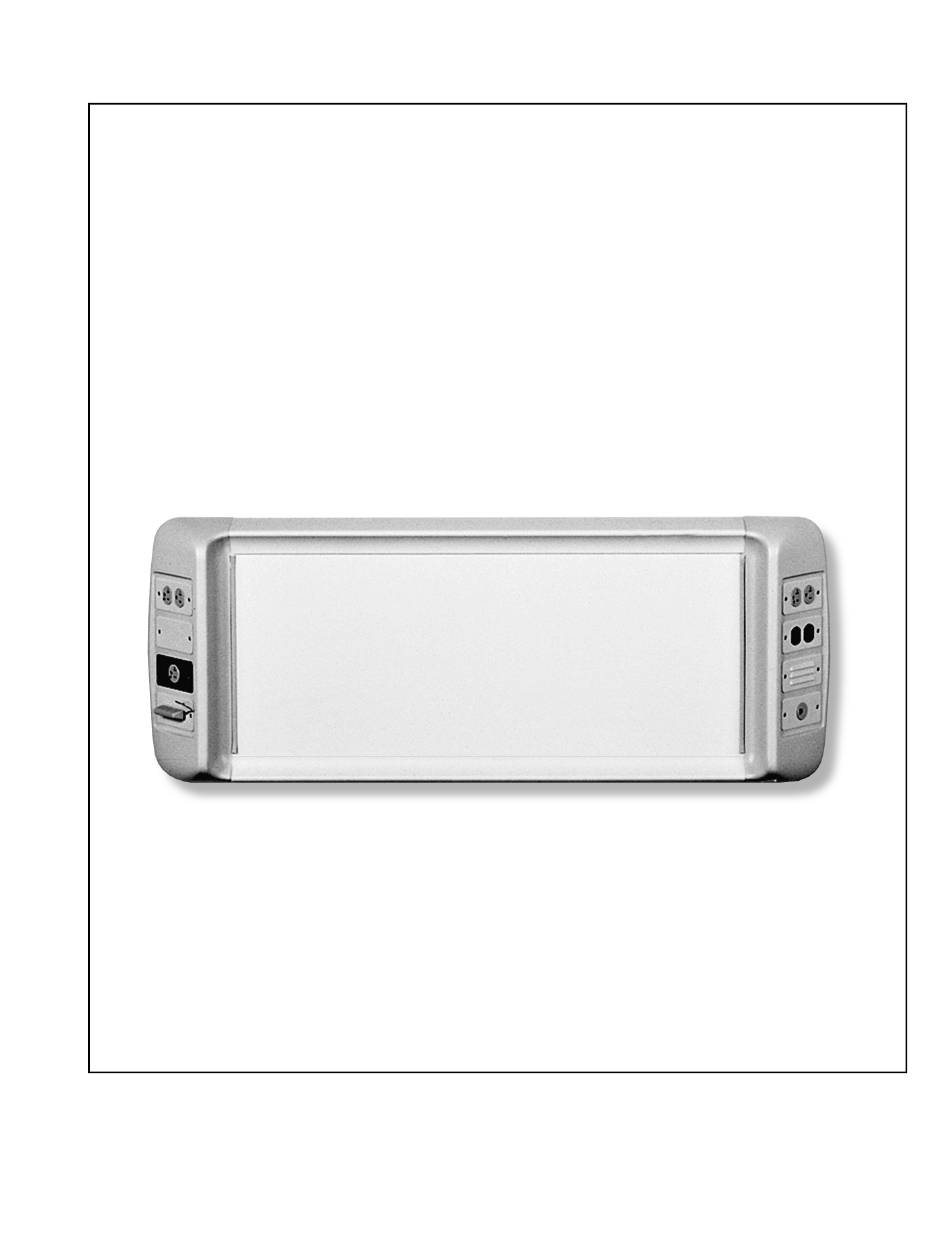

SERVICE MANUAL
For Parts or Technical Assistance
Technical Support: (800) 445-3720
Customer Service: (800) 445-3730
Canada: (800) 267-2337
International: Contact your distributor.
www.hill-rom.com
Bed Locator
From Hill-Rom
Product No. P786F00/P2016
man138ra

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P786F00 and is the answer not in the manual?

Questions and answers

David Holzen Texas Children's Hospital Account # 609461
April 3, 2025

I am trying to find parts for the Bed Locator P2016. Locator Assembly (figure 5-3 page 86) parts number 4,5,6,8

0
1 comments:
Mr. Anderson
April 3, 2025

The part numbers for the Locator Assembly components 4, 5, 6, and 8 for the Hill-Rom Bed Locator P2016 are:

- Component 4: 5842702(2016)
- Component 5: 5842703(2016)
- Component 6: 5255503(2016)
- Component 8: 50590(2016)

This answer is automatically generated

0

Related Manuals for Hill-Rom P786F00

Summary of Contents for Hill-Rom P786F00

  • Page 1 SERVICE MANUAL Bed Locator From Hill-Rom Product No. P786F00/P2016 For Parts or Technical Assistance man138ra Technical Support: (800) 445-3720 Customer Service: (800) 445-3730 Canada: (800) 267-2337 International: Contact your distributor. www.hill-rom.com...
  • Page 3 Bed Locator Service Manual Revisions Revision Letter Pages Affected Date Original Issue May, 1998 May, 2001 man138ra Bed Locator Service Manual (man138ra) Page i...
  • Page 4 Teks® is a registered trademark of Illinois Tool Works, Inc. The information contained in this manual is subject to change without notice. Hill-Rom makes no commitment to update or keep current, the information contained in this manual. The only product warranty intended by Hill-Rom is the express, written warranty accompanying the bill of sale to the original purchaser.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1: Introduction Purpose ............. 3 Audience .
  • Page 6 Table of Contents Disconnecting the SideCom® Communication System Cable... . . 8 Connecting the Telephone Cable ........8 Disconnecting the Telephone Cable .
  • Page 7 Adjustment ........... 4 - 15 Bed Locator Access Panel Cover (P786F00 Models Only) ....4 - 16 Removal .
  • Page 8 Recommended Spare Parts ......... . . 5 - 8 Bed Locator Assembly (P786F00 Bed Locator)......5 - 10 Bed Locator Assembly (P2016 Bed Locator).
  • Page 9 Table of Contents Low Voltage Controller Option (P2016 Bed Locator) ..... 5 - 32 Ground Bar Option ..........5 - 34 Telemate Receptacle .
  • Page 10 Table of Contents NOTES: Page viii Bed Locator Service Manual (man138ra)
  • Page 11 Chapter 1 Introduction Chapter Contents Purpose ............. 3 Audience .
  • Page 12 Chapter 1: Introduction Positioning the Bed ..........7 Removing the Bed .

  • Page 13: Chapter 1: Introduction

    This manual is intended for use by only facility-authorized maintenance personnel. Use of information contained in chapters 2 through 6 requires a thorough understanding of the Hill-Rom Bed Locator systems and components. Failure to observe this restriction can result in severe injury to people and serious damage to equipment.

  • Page 14: Chapter 5: Parts List

    Organization Chapter 1: Introduction Chapter 5: Parts List This chapter contains Hill-Rom’s warranty, part-ordering procedure, and illustrated parts lists. Chapter 6: General Procedures Cleaning, preventive maintenance, and other general procedures are described in this chapter. Chapter 7: Accessories There are no accessories for the Bed Locator.

  • Page 15: Typographical Conventions

    Typographical Conventions Chapter 1: Introduction Typographical Conventions This manual contains different typefaces and icons designed to improve readability and increase understanding of its content. Note the following examples: • Standard text—used for regular information. • Boldface text—emphasizes a word or phrase. •...

  • Page 16: Introduction

    Introduction Chapter 1: Introduction Introduction Overview The Bed Locator locates the patient bed while providing an effective method to protect walls from accidental damage. The Bed Locator may provide electrical and communication services for patient care depending on options purchased. Electrical outlets, along with telephone and two-way communication connections, provide necessary connections for use with electrical devices.

  • Page 17: Sidecom® Communication System Receptacle

    SideCom® Communication System Receptacle The SideCom® Communication System receptacle provides a connection for this communication device on Hill-Rom® beds. Telephone Cable Connector The telephone cable connector is used to connect a telephone cable to local phone service.

  • Page 18: Removing The Bed

    Introduction Chapter 1: Introduction The Bed Locator is designed to operate with Hill-Rom® beds between the heights of 9.3" (23.5 cm) and 27.8" (70.8 cm). 1. Align the center of the bed with the center of the Bed Locator. 2. Slowly guide the head portion of the bed toward the Bed Locator until the bed bumpers contact the center panel on the Bed Locator.

  • Page 19: Disconnecting The Telephone Cable

    Introduction Chapter 1: Introduction Disconnecting the Telephone Cable The telephone connector located on the Bed Locator represents the type of telephone connector typically used in your country. The telephone cable disconnects from the Bed Locator the same way as other phone cables in your area.

  • Page 20: Specifications

    Specifications Chapter 1: Introduction Specifications Physical Description See table 1-1 on page 1-10 for Bed Locator specifications. Table 1-1. Specifications Feature Dimension Width 50.0" (127.0 cm) Height 19.1" (48.5 cm) Depth (access panel) 2.4" (6.1 cm) Approximate weight 50.0 lb (22.7 kg) See table 1-2 on page 1-10 for Bed Locator physical dimensions.
  • Page 21 Specifications Chapter 1: Introduction Figure 1-3. Physical Dimensions Table 1-3. Optional Equipment and Devices Description Specification Chart light Switched 7 watt 120V bulb Night light Switched (Single Pole Single Throw (SPST) or 3-way) Continuous burn 7 watt 120 V bulb Low voltage controller 120V AC 240V AC...

  • Page 22: Electrical Description

    Specifications Chapter 1: Introduction Electrical Description Table 1-5. Electrical Specifications Description Specification Voltage 109-125V AC at 50-60 Hz Wire—standard and emergency power Type AWM/MTW Stranded copper 600V Flame retardant Heat resistant Wire—power circuits/lighting circuits 12 AWG (color-coded according to wiring diagram).

  • Page 23: Regulations, Standards, And Codes

    Specifications Chapter 1: Introduction Regulations, Standards, and Codes Sections and Units Category guide designation = QQXX. Isolated Power Wall Modules Category guide designation = KEXS. Canada (CUL) Sections and Units Category guide designation = QQXX7. Isolated Power Wall Modules Category guide designation = KEXS7. Operating Environment The Bed Locator is designed to operate in the following environments: Atmosphere...

  • Page 24: Model Identification

    Model Identification Chapter 1: Introduction Model Identification See table 1-7 on page 1-14 for Bed Locator model identification. Table 1-7. Model Identification Model Number Description P786F00 Bed Locator P201604 Stand Alone Bed Locator P201605 Integrated Bed Locator Page 1 - 14...

  • Page 25: Safety Tips

    Safety Tips Chapter 1: Introduction Safety Tips WARNING: Only facility-authorized maintenance personnel should troubleshoot the Bed Locator. Troubleshooting by unauthorized personnel could result in personal injury or equipment damage. WARNING: Only facility-authorized maintenance personnel should perform preventive maintenance on the Bed Locator. Preventive maintenance performed by unauthorized personnel could result in personal injury or equipment damage.
  • Page 26 Safety Tips Chapter 1: Introduction WARNING: Periodically check the ground continuity and combined leakage current of appliances and devices used with this product. Failure to do so could result in personal injury or equipment damage. WARNING: The patient bed should not interfere with other wall mounted equipment when positioned with the Bed Locator.
  • Page 27 Safety Tips Chapter 1: Introduction circuit breaker. Failure to follow this procedure could cause serious personal injury and damage to the equipment. SHOCK HAZARD: Use care when checking live voltages. Do not touch live terminals, wires, and ground. Failure to use caution will cause serious electrical shock injury.

  • Page 28: Product Symbol Definition

    Product Symbol Definition Chapter 1: Introduction Product Symbol Definition For Bed Locator symbol definitions, see table 1-8 on page 1-18. Table 1-8. Product Symbol Definition Symbol Description Circuit identification Page 1 - 18 Bed Locator Service Manual (man138ra)

  • Page 29: Warning And Caution Labels

    Outlet for bed use only. Do not plug any life support equipment into this outlet. Power to the bed outlet may be accidentally interrupted when used with the Integris® Patient Light or First Impression® Headwall System by Hill-Rom. Bed Locator Service Manual (man138ra) Page 1 - 19...

  • Page 30: Glossary Of Terms

    Glossary of Terms Chapter 1: Introduction Glossary of Terms Accessible metal part Any metal part of the unit that may be touched without a tool. Page 1 - 20 Bed Locator Service Manual (man138ra)
  • Page 31 Chapter 2 Troubleshooting Procedures Chapter Contents Getting Started ........... . 2 - 3 Initial Actions .

  • Page 32: Chapter 2: Troubleshooting Procedures

    Chapter 2: Troubleshooting Procedures NOTES: Page 2 - 2 Bed Locator Service Manual (man138ra)

  • Page 33: Getting Started

    (replacing or adjusting a part, seating a connector, etc.). Perform the Final Actions after the Function Checks to verify the repair. If troubleshooting procedures do not isolate the problem, call Hill-Rom Technical Support at (800) 445-3720 for assistance. Initial Actions Use Initial Actions to gather information from operators concerning problems with the Bed Locator.

  • Page 34: Function Checks

    Function Checks Chapter 2: Troubleshooting Procedures ↓ → Go to “Function Checks” on page 2-4. 4. See “Safety Tips” on page 1-15. Perform the “Function Checks” on page 2-4 to ensure proper operation of the Bed Locator. Function Checks NOTE: The following steps address all options available on the Bed Locator.

  • Page 35: Final Actions

    ↓ → Go to RAP 2.4. 8. Everything appears to be working properly. Go to “Final Actions” on page 2-5. If you need further help, call Hill-Rom Technical Support at (800) 445-3720 for assistance. Final Actions 1. Complete the required preventive maintenance procedures. See “Preventive Maintenance Checklist”...

  • Page 36: Low Voltage Malfunction

    The cause for power loss is detected in the circuit. ↓ → Call Hill-Rom Technical Support at (800) 445-3720 for assistance. 5. Correct the cause for power loss. Then, go to “Final Actions” on page 2-5.

  • Page 37: Night Light Malfunction

    The source of power interruption has been detected. ↓ → If no power interruptions can be detected, call Hill-Rom Technical Support at (800) 445-3720 for assistance. 5. Correct the power interruption. Then, go to “Final Actions” on page 2-5.

  • Page 38: Duplex Electrical Receptacle-Standard Or Critical Branch Is Inoperative

    → Replace the receptacle. See “Bed Receptacle” on page 4-9. This solves the problem. ↓ → Call Hill-Rom Technical Support at (800) 445-3720. 5. Go to “Final Actions” on page 2-5. Page 2 - 8 Bed Locator Service Manual (man138ra)

  • Page 39: Bed Receptacle Or Patient Light-Limit Switch Is Inoperative

    2.4 Bed Receptacle or Patient Light—Limit Switch Is Inoperative Chapter 2: Troubleshooting Procedures Bed Receptacle or Patient Light—Limit Switch Is Inoperative SHOCK HAZARD: Use care when checking live voltages. Do not touch live terminals, wires, and ground. Failure to use caution will cause serious electrical shock injury.
  • Page 40 2.4 Bed Receptacle or Patient Light—Limit Switch Is Inoperative Chapter 2: Troubleshooting Procedures ↓ → Call Hill-Rom Technical Support at (800) 445-3720. 7. Go to “Final Actions” on page 2-5. Page 2 - 10 Bed Locator Service Manual (man138ra)

  • Page 41: Electrical System

    Chapter 3 Theory of Operation Chapter Contents Electrical System ..........3 - 3 Theory of Operation .
  • Page 42 Chapter 3: Theory of Operation NOTES: Page 3 - 2 Bed Locator Service Manual (man138ra)
  • Page 43 Electrical System Chapter 3: Theory of Operation Electrical System WARNING: Figure 3-1 on page 3-3 represents a typical electrical system wiring diagram for the Bed Locator. Refer to the electrical schematic that accompanied your Bed Locator for the actual wiring diagram. Failure to do so could result in personal injury or equipment damage.
  • Page 44 Electrical System Chapter 3: Theory of Operation WARNING: Figure 3-2 on page 3-4 represents a typical wiring diagram of the low voltage controller on the Bed Locator. Refer to the electrical schematic that accompanied your Bed Locator for the actual wiring diagram. Failure to do so could result in personal injury or equipment damage.
  • Page 45 Electrical System Chapter 3: Theory of Operation Figure 3-3. Bed Locator Wiring Diagram (P2016 Models Only) m138_056 Bed Locator Service Manual (man138ra) Page 3 - 5...
  • Page 46 Electrical System Chapter 3: Theory of Operation Figure 3-4. Low Voltage Wiring Diagram (P2016 Models Only) m138_057 Page 3 - 6 Bed Locator Service Manual (man138ra)
  • Page 47 Theory of Operation Chapter 3: Theory of Operation Theory of Operation There is no Theory of Operation for the Bed Locator. For general electrical information, see “Electrical Specifications” on page 1-12. Bed Locator Service Manual (man138ra) Page 3 - 7...
  • Page 48 Theory of Operation Chapter 3: Theory of Operation NOTES: Page 3 - 8 Bed Locator Service Manual (man138ra)
  • Page 49 Chapter 4 Removal, Replacement, and Adjustment Procedures Chapter Contents Electrical Device Cover Plate ......... 4 - 3 Removal .

  • Page 50: Chapter 4: Removal, Replacement, And Adjustment Procedures

    Adjustment ........... 4 - 15 Bed Locator Access Panel Cover (P786F00 Models Only) ....4 - 16 Removal .

  • Page 51: Electrical Device Cover Plate

    4.1 Electrical Device Cover Plate Chapter 4: Removal, Replacement, and Adjustment Procedures Electrical Device Cover Plate Tools required: Phillips head screwdriver Removal SHOCK HAZARD: Only qualified and authorized service personnel may remove or replace the cover plate on the Bed Locator. Personal injury or equipment damage could occur.

  • Page 52: Replacement

    4.1 Electrical Device Cover Plate Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-1. Electrical Device Cover Plate Removal m138_033 4. Disconnect the components fastened to the cover plate (B) including the protective earth grounding wire and any options present. Replacement SHOCK HAZARD: The protective earth must be reconnected as originally assembled.

  • Page 53: Electrical Device

    4.2 Electrical Device Chapter 4: Removal, Replacement, and Adjustment Procedures Electrical Device Tools required: Phillips head screwdriver Removal WARNING: Only qualified and authorized service personnel may remove or replace the electrical devices on the Bed Locator. Personal injury or equipment damage could occur.

  • Page 54: Low Voltage Controller (P2016 Models Only)

    4.3 Low Voltage Controller (P2016 Models Only) Chapter 4: Removal, Replacement, and Adjustment Procedures Low Voltage Controller (P2016 Models Only) Tools required: Adjustable wrench Screwdriver Digital multimeter Removal SHOCK HAZARD: Locate the involved building standard or critical branch circuit breaker panel.
  • Page 55 4.3 Low Voltage Controller (P2016 Models Only) Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-2. Low Voltage Controller Removal Bed Locator Service Manual (man138ra) Page 4 - 7...

  • Page 56: Replacement

    4.3 Low Voltage Controller (P2016 Models Only) Chapter 4: Removal, Replacement, and Adjustment Procedures Replacement NOTE: Before replacing the low voltage controller, check the following resistances between the output leads: • 120V AC 500 ohms, plus or minus 100 ohms •...

  • Page 57: Bed Receptacle

    4.4 Bed Receptacle Chapter 4: Removal, Replacement, and Adjustment Procedures Bed Receptacle Tools required: Screwdriver Phillips head screwdriver Removal SHOCK HAZARD: Locate the involved building standard or critical branch circuit breaker panel. Set the involved circuit breaker to OFF. Lock out and tag out the circuit breaker.
  • Page 58 4.4 Bed Receptacle Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-3. Bed Receptacle Removal m138_055 4. Remove the faceplate (D) from the raceway (A). 5. Leave the indicator (E) in position on the faceplate (D). 6. Using a screwdriver, loosen the receptacle screws (C) until the receptacles (B) can be lifted away from the device plate.

  • Page 59: Replacement

    4.4 Bed Receptacle Chapter 4: Removal, Replacement, and Adjustment Procedures 9. Remove the power supply and indicator wires from the receptacle (B). Replacement 1. Place the indicator and power supply wires onto the receptacle terminal screws. 2. Tighten the terminal screws. 3.

  • Page 60: Telephone Receptacle

    4.5 Telephone Receptacle Chapter 4: Removal, Replacement, and Adjustment Procedures Telephone Receptacle Tools required: Phillips head screwdriver Removal 1. Using a phillips head screwdriver, remove the screws (B) and the patient phone faceplate (C) from the raceway (see figure 4-4 on page 4-12). Figure 4-4.

  • Page 61: Replacement

    4.5 Telephone Receptacle Chapter 4: Removal, Replacement, and Adjustment Procedures 3. Remove the telephone interface connector from the back of the modular phone receptacle (D). Replacement 1. Install the telephone interface connector into the back of the modular phone receptacle (D). 2.

  • Page 62: Bumpers

    4.6 Bumpers Chapter 4: Removal, Replacement, and Adjustment Procedures Bumpers Tools required: Phillips head screwdriver Removal WARNING: Only qualified and authorized service personnel may remove or replace the bumpers on the Bed Locator. Personal injury or equipment damage could occur. SHOCK HAZARD: Unplug the Bed Locator from its power source.

  • Page 63: Replacement

    4.6 Bumpers Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-5. Bumper Assembly m138_045 Replacement 1. Reverse the removal procedure to replace the Bed Locator bumper assembly. 2. Ensure the Bed Locator is connected to an appropriate power source. Adjustment No adjustment is required for the Bed Locator bumper assembly.

  • Page 64: Bed Locator Access Panel Cover (P786F00 Models Only)

    4.7 Bed Locator Access Panel Cover (P786F00 Models Only) Chapter 4: Removal, Replacement, and Adjustment Procedures Bed Locator Access Panel Cover (P786F00 Models Only) Tools required: Phillips head screwdriver Removal WARNING: Only qualified and authorized service personnel may remove or replace the access panel on the Bed Locator.
  • Page 65 4.7 Bed Locator Access Panel Cover (P786F00 Models Only) Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-6. Access Panel Replacement Section A-A m138_009 4. Remove the lower extrusion cover (B) from the Bed Locator assembly (C) (see figure 4.7 on page 4-16).

  • Page 66: Replacement

    4.7 Bed Locator Access Panel Cover (P786F00 Models Only) Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-7. Access Panel Assembly m138_047 5. Remove the access panel (D) from the Bed Locator assembly (C). Replacement 1. Reverse the removal procedure to replace the access panel.

  • Page 67: Adjustment

    4.7 Bed Locator Access Panel Cover (P786F00 Models Only) Chapter 4: Removal, Replacement, and Adjustment Procedures Adjustment No adjustment is required for the Bed Locator access panel assembly. Bed Locator Service Manual (man138ra) Page 4 - 19...

  • Page 68: Bed Locator Access Panel Cover (P2016 Models Only)

    4.8 Bed Locator Access Panel Cover (P2016 Models Only) Chapter 4: Removal, Replacement, and Adjustment Procedures Bed Locator Access Panel Cover (P2016 Models Only) Tools required: Phillips head screwdriver Removal 1. Using a phillips head screwdriver, remove the center two lower rail screws (A) (see figure 4-8 on page 4-20).

  • Page 69: Replacement

    4.8 Bed Locator Access Panel Cover (P2016 Models Only) Chapter 4: Removal, Replacement, and Adjustment Procedures 3. Hold the access panel cover (C), and lower the rail (D) in place with one hand while removing the two loosened screws (B) with the other hand. 4.

  • Page 70: Night Light Bulb

    4.9 Night Light Bulb Chapter 4: Removal, Replacement, and Adjustment Procedures Night Light Bulb Tools required: Phillips head screwdriver Removal WARNING: Only qualified and authorized service personnel may remove or replace electrical devices on the Bed Locator. Personal injury or equipment damage could occur.

  • Page 71: Adjustment

    4.9 Night Light Bulb Chapter 4: Removal, Replacement, and Adjustment Procedures 5. If the night light does not come on, verify the bulb is fully seated into the receptacle. Adjustment No adjustment is required for the Bed Locator night light bulb assembly. Bed Locator Service Manual (man138ra) Page 4 - 23...

  • Page 72: 4.10 Fuse

    4.10 Fuse Chapter 4: Removal, Replacement, and Adjustment Procedures 4.10 Fuse Tools required: Phillips head screwdriver Removal WARNING: Only qualified and authorized service personnel may remove or replace electrical devices on the Bed Locator. Personal injury or equipment damage could occur. SHOCK HAZARD: Locate the involved building standard or critical branch circuit breaker panel.

  • Page 73: Replacement

    4.10 Fuse Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-9. Fuse Replacement m138_037 Replacement 1. Replace the defective fuse with a new fuse. 2. Ensure the fuse (A) is fully seated into the fuse holder (B). 3. Follow steps 1 through 3 of the section “Electrical Device Cover Plate” on page 4-3 in reverse order.
  • Page 74 4.10 Fuse Chapter 4: Removal, Replacement, and Adjustment Procedures NOTES: Page 4 - 26 Bed Locator Service Manual (man138ra)
  • Page 75 Recommended Spare Parts ......... . . 5 - 8 Bed Locator Assembly (P786F00 Bed Locator)......5 - 10 Bed Locator Assembly (P2016 Bed Locator).

  • Page 76: Chapter 5: Parts List

    Chapter 5: Parts List Duplex Receptacle ..........5 - 42 Bed Interface Unit.

  • Page 77: Warranty

    Replacement of non-technical items will be the responsibility of the customer. If requested by Hill-Rom, products or parts for which a warranty claim is made shall be returned prepaid to Hill-Rom’s factory.
  • Page 78 Warranty Chapter 5: Parts List NOTES: Page 5 - 4 Bed Locator Service Manual (man138ra)

  • Page 79: Service Parts Ordering

    (B) (see figure 5-1 on page 5-5). The shipping label is located on the opposite side of the access panel (D). Figure 5-1. Bed Locator Product and Shipping Label Locations m138_047 Call Hill-Rom Technical Support at (800) 445-3720 with the following information: • Six-digit customer account number • Purchase order number •...
  • Page 80 RMA packet is included with each order. This packet includes an RMA number, instructions, and a shipping label. If an RMA number is not available, obtain one by phoning Hill-Rom Customer Service at (800) 556-5596 Page 5 - 6...

  • Page 81: Exchange Policy

    In some cases, the invoice accompanying the parts will show the full selling price (only for internal use at Hill-Rom). Do not confuse this price with your price. Do not return any parts without an RMA number. When parts/products have been requested to be returned, Hill-Rom will include an RMA packet with the parts/products shipment.

  • Page 82: Recommended Spare Parts

    Recommended Spare Parts Chapter 5: Parts List Recommended Spare Parts See table 5-1 on page 5-8 for a recommended spare parts list to service five units or more. Table 5-1. Recommended Spare Parts Part Number Quantity Description 58258 (2016) Night light bulb 58260 (2016) Fuse 56409 (2016)
  • Page 83 Recommended Spare Parts Chapter 5: Parts List NOTES: Bed Locator Service Manual (man138ra) Page 5 - 9...

  • Page 84: Bed Locator Assembly (P786F00 Bed Locator)

    Bed Locator Assembly (P786F00 Bed Locator) Chapter 5: Parts List Bed Locator Assembly (P786F00 Bed Locator) Figure 5-2. Bed Locator Assembly (P786F00 Bed Locator) m138_008 Page 5 - 10 Bed Locator Service Manual (man138ra)
  • Page 85 16114 (2016) Screw Specify high pressure laminate color. Call Hill-Rom Technical Support for specific instructions when ordering this part. NOTE: Your Bed Locator may not have all of the items listed in the parts list. Parts actually installed are based on the options purchased.

  • Page 86: Bed Locator Assembly (P2016 Bed Locator)

    Bed Locator Assembly (P201605 Bed Locator) Integrated Chapter 5: Parts List Bed Locator Assembly (P201605 Bed Locator) Integrated Figure 5-3. Bed Locator Assembly (P201605 Bed Locator) Integrated m138_050 Page 5 - 12 Bed Locator Service Manual (man138ra)
  • Page 87 Bed Locator Assembly (P201605 Bed Locator) Integrated Chapter 5: Parts List Table 5-4. Bed Locator Assembly (P201605 Bed Locator) Integrated Item Number Part Number Quantity Description 205168 (2016) Backplate divider, bed locator 20442603 (2016)§ 1 Lower rail, bed locator 204508 (2016)§ Upper rail, bed locator 5842702 (2016)§...

  • Page 88: Terminal Block Assembly

    Terminal Block Assembly Chapter 5: Parts List Terminal Block Assembly Figure 5-4. Terminal Block Assembly m138_030 Page 5 - 14 Bed Locator Service Manual (man138ra)
  • Page 89 Terminal Block Assembly Chapter 5: Parts List Table 5-5. Terminal Block Assembly Item Number Part Number Quantity Description 57900 (2016) Terminal block—gray 57903 (2016) Terminal block—protective earth 57896 (2016) Isolation partition 57902 (2016) End stop 57901 (2016) End plate 58325 (2016) Terminal block rail 57898 (2016) Tag—white...

  • Page 90: Night Light Assembly

    Night Light Assembly Chapter 5: Parts List Night Light Assembly Figure 5-5. Night Light Assembly Night light style 1 Night light style 2 m138_027 Page 5 - 16 Bed Locator Service Manual (man138ra)
  • Page 91 Night Light Assembly Chapter 5: Parts List Table 5-6. Night Light Assembly Item Number Part Number Quantity Description 58258 (2016) Night light bulb 58257 (2016) Night light socket 54416 (2016) Screw 393 (2016) Screw 58256 (2016) Lamp deflector bracket 58263 (2016) Deflector mounting bracket 58298 (2016) E10 lamp...

  • Page 92: Night Light Assembly (Integris 2000 Headwall System)

    Night Light Assembly (Integris® 2000 Headwall System) Chapter 5: Parts List Night Light Assembly (Integris® 2000 Headwall System) Figure 5-6. NightLight Assembly (Integris® 2000 Headwall System) m138_061 Page 5 - 18 Bed Locator Service Manual (man138ra)
  • Page 93 Night Light Assembly (Integris® 2000 Headwall System) Chapter 5: Parts List Table 5-7. NightLight Assembly (Integris® 2000 Headwall System) Item Number Part Number Quantity Description 5936801 (2016) Night light housing, lh 5936802 (2016) Night light housing, rh 12379 (2016) Night light socket 15418 (2016) Night light bulb 983 (2016)

  • Page 94: Night Light Assembly (Shallow)

    Night Light Assembly (Shallow) Chapter 5: Parts List Night Light Assembly (Shallow) Figure 5-7. Night Light Assembly (Shallow) m138_062 Page 5 - 20 Bed Locator Service Manual (man138ra)
  • Page 95 Night Light Assembly (Shallow) Chapter 5: Parts List Table 5-8. Night Light Assembly (Shallow) Item Number Part Number Quantity Description 28220 (2016) Lampholder with bulb 16115 (2016) Screw Bed Locator Service Manual (man138ra) Page 5 - 21...

  • Page 96: Sidecom® Communication System Connector Assembly

    SideCom® Communication System Connector Assembly Chapter 5: Parts List SideCom® Communication System Connector Assembly Figure 5-8. SideCom® Communication System Connector Assembly m138_044 Page 5 - 22 Bed Locator Service Manual (man138ra)
  • Page 97 SideCom® Communication System Connector Assembly Chapter 5: Parts List Table 5-9. SideCom® Communication System Connector Assembly Item Number Part Number Quantity Description 52231 (2016) Sidecom faceplate —almond 29246 (2016) Sleeve 31590-03 (2016) 1 Cable connector assembly 16115 (2016) Screw 50590 (2016) Screw SA1238 (2016) Dummy plug assembly, sleeve...

  • Page 98: Potential Equalization Assembly

    Potential Equalization Assembly Chapter 5: Parts List Potential Equalization Assembly Figure 5-9. Potential Equalization Assembly m138_031 Page 5 - 24 Bed Locator Service Manual (man138ra)
  • Page 99 Potential Equalization Assembly Chapter 5: Parts List Table 5-10. Potential Equalization Assembly Item Number Part Number Quantity Description 57889 (2016) Clamp with cover 57888 (2016) Busbar support 58337 (2016) 4" busbar 53125-02 (2016) 2 Screw Bed Locator Service Manual (man138ra) Page 5 - 25...

  • Page 100: Pendant Switch Socket

    Pendant Switch Socket Chapter 5: Parts List Pendant Switch Socket Figure 5-10. Pendant Switch Socket m138_048 Page 5 - 26 Bed Locator Service Manual (man138ra)
  • Page 101 Pendant Switch Socket Chapter 5: Parts List Table 5-11. Pendant Switch Socket Item Number Part Number Quantity Description 54233 (2016) Socket assembly lighting pendant 54145 (2016)§ Faceplate .250 socket 50590 (2016) Screw § Specify dash number if product color is: -48 Light neutral (off-white) -48 Light neutral (off-white) -33 Taupe (brown)

  • Page 102: Potential Equalization Socket

    Potential Equalization Socket Chapter 5: Parts List Potential Equalization Socket Figure 5-11. Potential Equalization Socket m138_028 Table 5-12. Potential Equalization Socket Item Number Part Number Quantity Description 58154 (2016) Potential equalization socket 5828900 (2016) Wire lead, green/yellow, 4mm Page 5 - 28 Bed Locator Service Manual (man138ra)

  • Page 103: Electrical Mains Socket

    Electrical Mains Socket Chapter 5: Parts List Electrical Mains Socket Figure 5-12. Electrical Mains Socket m138_029 Table 5-13. Electrical Mains Socket Item Number Part Number Quantity Description 58144 (2016) Legrand™ receptacle (French) 58145 (2016) Legrand™ receptacle (German) 58209 (2016) Legrand™ receptacle (British) 16115 (2016) Screw 57905 (2016)

  • Page 104: Low Voltage Controller (P786F00 Bed Locator)

    Low Voltage Controller (P786F00 Bed Locator) Chapter 5: Parts List Low Voltage Controller (P786F00 Bed Locator) Figure 5-13. Low Voltage Controller (P786F00 Bed Locator) m138_042 Page 5 - 30 Bed Locator Service Manual (man138ra)
  • Page 105 Low Voltage Controller (P786F00 Bed Locator) Chapter 5: Parts List Table 5-14. Low Voltage Controller (P786F00 Bed Locator) Item Number Part Number Quantity Description 54014 (2016) Barrier LVC painted 393 (2016) Pan head screw 15250 (2016) Locknut washer base 52243-05 (2016) 1...

  • Page 106: Low Voltage Controller Option (P2016 Bed Locator)

    Low Voltage Controller Option (P2016 Bed Locator) Chapter 5: Parts List Low Voltage Controller Option (P2016 Bed Locator) Figure 5-14. Low Voltage Controller Option (P2016 Bed Locator) Page 5 - 32 Bed Locator Service Manual (man138ra)
  • Page 107 Low Voltage Controller Option (P2016 Bed Locator) Chapter 5: Parts List Table 5-15. Low Voltage Controller Option (P2016 Bed Locator) Item Part Number Quantity Description Number 203507120 (2016) 1 Controller complete—(120V) P535 203507240 (2016) 1 Controller complete—(240V) P535 203507277 (2016) 1 Controller complete—(277V) P535 204207-01 Low voltage controller barrier assembly, L.H.

  • Page 108: Ground Bar Option

    Ground Bar Option Chapter 5: Parts List Ground Bar Option Figure 5-15. Ground Bar Option m138_049 Page 5 - 34 Bed Locator Service Manual (man138ra)
  • Page 109 Ground Bar Option Chapter 5: Parts List Table 5-16. Ground Bar Option Item Number Part Number Quantity Description 56551 (2016)* Ground bar 18148 (2016)** Snap bushing 52243-07 (2016) 1 Screw 15250 (2016) As required Locknut washer base 32112 (2016) Reference ground label 32252 (2016) Label, torque A quantity of 1 used on assembly -01, a quantity of 2 used on assembly -02.

  • Page 110: Telemate Receptacle

    Telemate Receptacle Chapter 5: Parts List Telemate Receptacle Figure 5-16. Telemate Receptacle m138_041 Page 5 - 36 Bed Locator Service Manual (man138ra)
  • Page 111 Telemate Receptacle Chapter 5: Parts List Table 5-17. Telemate Receptacle Item Number Part Number Quantity Description 54600 (2016) Phone receptacle assembly 52235 (2016) Faceplate—telemate 50590 (2016) Screw 16115 (2016) Screw Bed Locator Service Manual (man138ra) Page 5 - 37...

  • Page 112: Flatwall Interconnect

    Flatwall Interconnect Chapter 5: Parts List Flatwall Interconnect Figure 5-17. Flatwall Interconnect Page 5 - 38 Bed Locator Service Manual (man138ra)
  • Page 113 Flatwall Interconnect Chapter 5: Parts List Table 5-18. Flatwall Interconnect with the P786F00 Bed Locator Item Number Part Number Quantity Description 55017 (2016) Conduit connector 393 (2016) Screw 55017 (2016) Conduit connector Table 5-19. Flatwall Interconnect with the P2016 Bed Locator...

  • Page 114: Sidecom® Communication System Receptacle-Sylvania Nurse Call

    SideCom® Communication System Receptacle—Sylvania Nurse Call Chapter 5: Parts List SideCom® Communication System Receptacle—Sylvania Nurse Call Figure 5-18. SideCom® Communication System Receptacle—Sylvania Nurse Call m138_039 Page 5 - 40 Bed Locator Service Manual (man138ra)
  • Page 115 SideCom® Communication System Receptacle—Sylvania Nurse Call Chapter 5: Parts List Table 5-20. SideCom® Communication System Receptacle—Sylvania Nurse Call Item Number Part Number Quantity Description 53065-02 (2016) 2 Fiber washer 54594 (2016) Cable connector assembly 16115 (2016) Screw 52228 (2016)§ Simplex faceplate—almond 50590 (2016) Screw §...

  • Page 116: Duplex Receptacle

    Duplex Receptacle Chapter 5: Parts List Duplex Receptacle Figure 5-19. Duplex Receptacle m138_038 Page 5 - 42 Bed Locator Service Manual (man138ra)
  • Page 117 Duplex Receptacle Chapter 5: Parts List Table 5-21. Duplex Receptacle Item Number Part Number Quantity Description 50590 (2016) Screw 16115 (2016) Screw 51672-48 (2016) 1 Wire lead—green 5125460 (2016) Wire lead—black 5125560 (2016) Wire lead—white 52227 (2016) Duplex faceplate—receptacle 55168 (2016) Faceplate, engraved GFCI 55207 (2016) Label—GFCI warning...

  • Page 118: Bed Interface Unit

    Bed Interface Unit Chapter 5: Parts List Bed Interface Unit Figure 5-20. Bed Interface Unit m138_046 Page 5 - 44 Bed Locator Service Manual (man138ra)
  • Page 119 Bed Interface Unit Chapter 5: Parts List Table 5-22. Bed Interface Unit Item Number Part Number Quantity Description 57637 (2016) Coupler, modular plug, 8 pos 57096 (2016) Ribbon cable assembly, BIU interconnect 57592 (2016) BIU remote 50891-07 (2016) 2 Screw 57584 (2016) BUI faceplate, 1 gang, w/ring terminal 57638 (2016)
  • Page 120 Bed Interface Unit Chapter 5: Parts List NOTES: Page 5 - 46 Bed Locator Service Manual (man138ra)
  • Page 121 Chapter 6 General Procedures Chapter Contents Cleaning ............6 - 3 Steam Cleaning .

  • Page 122: Chapter 6: General Procedures

    Chapter 6: General Procedures NOTES: Page 6 - 2 Bed Locator Service Manual (man138ra)

  • Page 123: Cleaning

    Cleaning Chapter 6: General Procedures Cleaning SHOCK HAZARD: Follow the product manufacturer’s instructions. Failure to do so could result in personal injury or equipment damage. SHOCK HAZARD: Unplug the unit from its power source. Failure to do so could result in personal injury or equipment damage.

  • Page 124: Disinfecting

    Lubrication Requirements Chapter 6: General Procedures Disinfecting When there is visible soilage and between patients, we recommend that you disinfect the unit with a tuberculocidal disinfectant. (For customers in the US, the disinfectant should be registered with the Environmental Protection Agency.) Dilute the disinfectant according to the manufacturer’s instructions.

  • Page 125: Preventive Maintenance

    Preventive Maintenance Chapter 6: General Procedures Preventive Maintenance WARNING: Only facility-authorized maintenance personnel should perform preventive maintenance on the Bed Locator. Preventive maintenance performed by unauthorized personnel could result in personal injury or equipment damage. The Bed Locator requires an effective maintenance program. We recommend that you perform annual preventive maintenance (PM) and testing for Joint Commission on Accreditation of Healthcare Organizations (JCAHO).

  • Page 126: Preventive Maintenance Schedule

    Preventive Maintenance Chapter 6: General Procedures Preventive Maintenance Schedule Table 6-1. Preventive Maintenance Schedule Function Procedure Power cables Inspect all cables for good condition and possible cracking, cuts, or pinches in insulation coverings. Electrical Check all receptacles for proper ground conductor extractive force. receptacles The extractive force should be four ounces with a 0.184"...

  • Page 127: Preventive Maintenance Checklist

    Preventive Maintenance Chapter 6: General Procedures Preventive Maintenance Checklist Table 6-2. Preventive Maintenance Checklist Date Function Power cables Electrical receptacles Electrical connections Electrical leakage Mounting General appearance Labor Time: Repair Cost: Inspected By: Bed Locator Service Manual (man138ra) Page 6 - 7...

  • Page 128: Tool And Supply Requirements

    Chapter 6: General Procedures Tool and Supply Requirements The following tools are required to service the Bed Locator: • Phillips head screwdriver • Adjustable wrench • Screwdriver • Digital multimeter • 1/2" standard drill • 1" drill bit • Chalk line •...

  • Page 129: Chapter 7: Accessories

    Chapter 7 Accessories Chapter Contents Accessories ............7 - 3 Bed Locator Service Manual (man138ra) Page 7 - 1...
  • Page 130 Chapter 7: Accessories NOTES: Page 7 - 2 Bed Locator Service Manual (man138ra)
  • Page 131 Accessories Chapter 7: Accessories Accessories No accessories are available for the Bed Locator. Bed Locator Service Manual (man138ra) Page 7 - 3...
  • Page 132 Accessories Chapter 7: Accessories NOTES: Page 7 - 4 Bed Locator Service Manual (man138ra)
  • Page 133 Schematic Wiring Diagram—Typical Electric System Wiring Diagram Back to Chapter 3...
