Ruckus Wireless ZoneFlex P300 Quick Setup Manual

P300 Wireless Bridge
Quick Setup Guide
Note: The minimum software revision for the P300 is base image
100.0.1.9 or later. FlexMaster requires firmware 9.12 and later to
manage the P300.
This Installation Guide provides information on how to configure the
Ruckus Wireless ZoneFlex P300 802.11ac point-to-multipoint outdoor
wireless mesh bridge on the network. The P300 can use its internal 5GHz
antennas, or can optionally use a two-port customer-ordered external
5GHz antenna. After completing the steps described in this Guide, you will
be able to place the P300 at your site. The rest of this guide refers to the
P300 wireless mesh bridge as the P300.
The P300 can be ordered either as an unconfigured single P300, or as a
pre-configured matched pair of P300s. These P300s are almost always
installed in pairs, whether they are configured as a root access point (RAP)
or mesh access point (MAP).
Figure 1. P300s deployed as RAP and MAP
RAP
MAP RAP
Note: When deployed in the RAP--MAP RAP--MAP configuration, the
two wireless links must use different SSIDs.
This Guide in Other Languages
请从以下网站获得该指南的简体中文版
https://support.ruckuswireless.com
Vous trouverez la version française de ce guide à l'adresse suivante
https://support.ruckuswireless.com
https://support.ruckuswireless.com
このガイ ドの日本語版は
でご覧く だ さい
이 가이드의 한국어 버전은 웹 사이트
(https://support.ruckuswireless.com) 에서 확인하시기 바랍니다
Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com
Puede ver la versión en español (América Latina) de esta guía en
https://support.ruckuswireless.com
Copyright © 2019 CommScope, Inc. All rights reserved.
Published November 2019, Part Number 800-70607-001 Rev B
Before You Begin
Before deploying Ruckus Wireless products, please check for the latest
software and the release documentation.
• User Guides and Release Notes are available at
http://support.ruckuswireless.com/documents
• Software Upgrades are available at
http://support.ruckuswireless.com/software
• Software License and Limited Warranty are available at
http://support.ruckuswireless.com/warranty
Safety Warnings
• WARNING! Only trained and qualified personnel should be allowed to
install, replace, or service this equipment. The professional installer is
responsible for the proper installation and configuration of this P300.
The P300 installation must comply with local regulatory requirements,
especially with those regulating operation near military and/or weather
radar systems.
• WARNING! Installation of this equipment must comply with local and
national electrical codes.
• WARNING! Ruckus Wireless strongly recommends that you wear eye
protection before mounting the P300.
• WARNING! The Ruckus Wireless PoE injector (ordered separately) is
for indoor use only. Never mount the PoE injector outdoors with the
P300.
• CAUTION: Make sure that you form a 80mm - 130mm (3"-5") drip
loop in any cable that is attached to the P300 or the building. This will
prevent water from running along the cable and entering the P300 or
the building where the cable terminates.
• CAUTION: Be sure that grounding is available and that it meets local
and national electrical codes. For additional lightning protection, use
MAP
lightning rods and lightning arrestors.
• NOTE: Allowable external antenna types and antenna gains may be
limited by local regulatory requirements.
Package Contents
Before configuring or deploying your P300, verify that all items listed below
are included in the package. If any item is damaged or missing, notify your
MAP
authorized Ruckus Wireless sales representative.
One or two P300 kits, depending on ordered part:
• 901-P300-xx01, P300, 802.11ac 5GHz point-to-point wireless mesh
bridge, includes one P300 kit
• 901-P300-xx02, P300, 802.11ac 5GHz point-to-point wireless mesh
bridge, pre-provisioned pair, includes two P300 kits
where 'xx' is a country-specific code.
Each P300 kit contains:
• One P300, which includes a 12mm stainless steel M6x1 Phillips earth
ground screw with split lock and flat washers (A in
• One M25 data cable gland (B in
• One green/yellow earth ground wire with ring terminal (C in
• One wall- or pole-mounting bracket (D in
• One U-joint bracket (E in
• One linkage bracket with two serrated external-tooth lock washers (F
in Figure 2)
• One P300 bracket (G in
• Two sets 50mm stainless steel M8x1.25 hex bolt with split lock and
flat washers (H in Figure
Figure 2)
Figure 2)
Figure 2)
Figure 2)
Figure 2)
Figure 2)
2)
• Four SAE32-sized stainless steel clamps, 38.1mm to 63.5mm (1.5" to
2.5") inner diameter (I in Figure 2)
• Eight sets stainless steel 0.5-inch x 0.250-28 hex bolt with split lock
and flat washers (J in Figure 2)
• Four sets stainless steel 8mm M4x0.7 pan head Phillips screws with
split lock and flat washers (not shown, and not used)
• Service Level Agreement/Limited Warranty Statement
• Regulatory Statement
• Declaration of Conformity, if required
• This Quick Setup Guide
• The P300 Wireless Bridge Mounting Guide
• N-Type Connector Sealing Instructions
NOTE: This kit may include extra screws, nuts and washers. You may use
the extras wherever required.

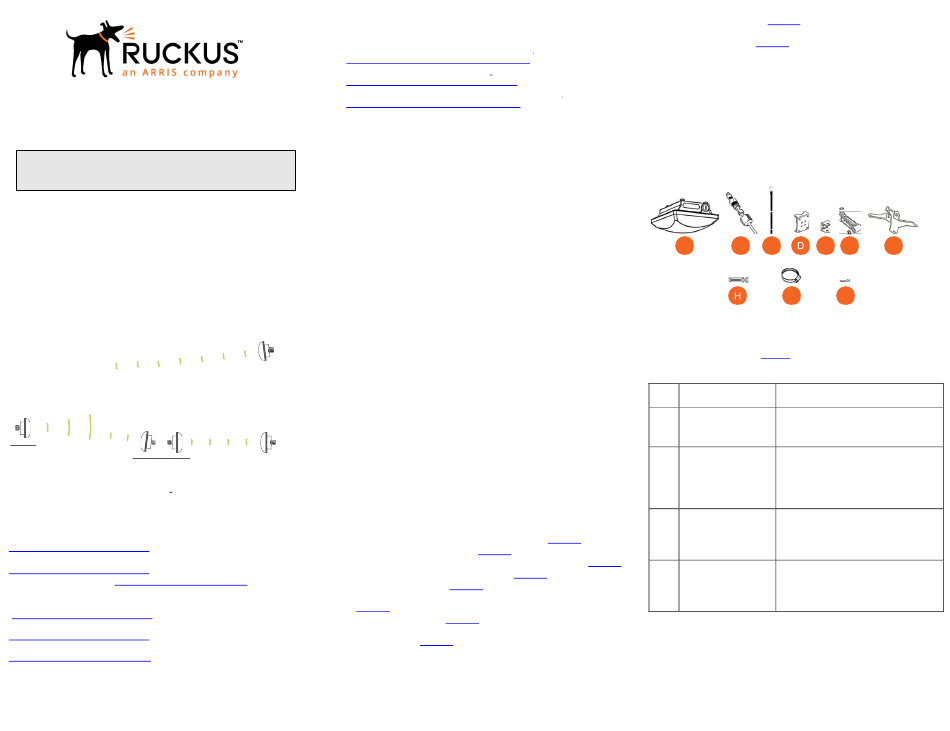

Figure 2. P300 field-installation kit contents
A B C E
I
LEDs and Indications
The P300 has five LEDs visible on the outside of the chassis. The LEDs
have different operating modes, and which can be manually turned on and
off by the operator. Refer to Table 1 for a description of these LEDs and
their operating modes.
Table 1. P300 LED indications
LED Normal Mode Aiming Mode (all green)
AIM • Green = aiming • Green = aiming mode
mode • Off = normal operation mode
• Off = normal mode
5G • Off = radio down Aiming Strength 1
• Solid green = radio
• Solid: RSSI >= Configured Minimum
up & link up
(28 > RSSI >= 20)
• Flashing green =
• Blinking: RSSI < Configured Min
radio up but no link
(Default: 20, which is configurable)
ROOT • Off = non root bridge
Aiming Strength 2
• Solid green = root
• Solid: Min + 16 RSSI (44 > RSSI >= 36)
bridge
• Blinking: Min + 8 RSSI
(36 > RSSI >= 28)
CTL • Off = standalone Aiming Strength 3
operation
• Solid: Min + 32 RSSI (60 > RSSI >= 52)
• Other modes = to be
• Blinking: Min + 24 RSSI
determined
(52 > RSSI >= 44)
F G
J
