Ruckus Wireless P01-0500 Quick Setup Manual

Fiber Backpack for H510
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions for setting up
your Ruckus Wireless Fiber Backpack (Model: P01-0500, Ruckus PN#
P01-0500-0000) to work with a Ruckus Wireless H510 access point (AP).
CAUTION! Plugging a PoE injector into the LAN port may cause damage
to the device.
NOTE: Connect the H510 DC plug to this unit to supply PoE power to
the H510.
NOTE: Please read these operation instructions carefully before start of
operation.
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
https://
support.ruckuswireless.com.
• Vous trouverez la version française de ce guide à l'adresse suivante
https://support.ruckuswireless.com.
• このガイドの日本語版は
https://support.ruckuswireless.com
ください。
• 이 가이드의 한국어 버전은 웹 사이트
(https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
• Puede ver la versión en español (América Latina) de esta guía en
support.ruckuswireless.com.
Before You Begin
Before deploying Ruckus products, please check for the latest software and
the release documentation.
• Release Notes and other user documentation are available at
support.ruckuswireless.com/documents.
• Software upgrades are available at http://support.ruckuswireless.com/
software.
• Open source information is available at http://
opensource.ruckuswireless.com/open_source.
About Device
The Fiber Backpack is a bolt-on accessory that provides a cheaper
alternative to fiber Optical Network Terminal (ONT) interface devices. It is
an external assembly and can be installed in the field on-site, enabling
fiber backhaul for any existing H510 installation.
Copyright © 2024 CommScope, Inc. All rights reserved.
Published March 2024, Part Number 800-72123-001 Rev D

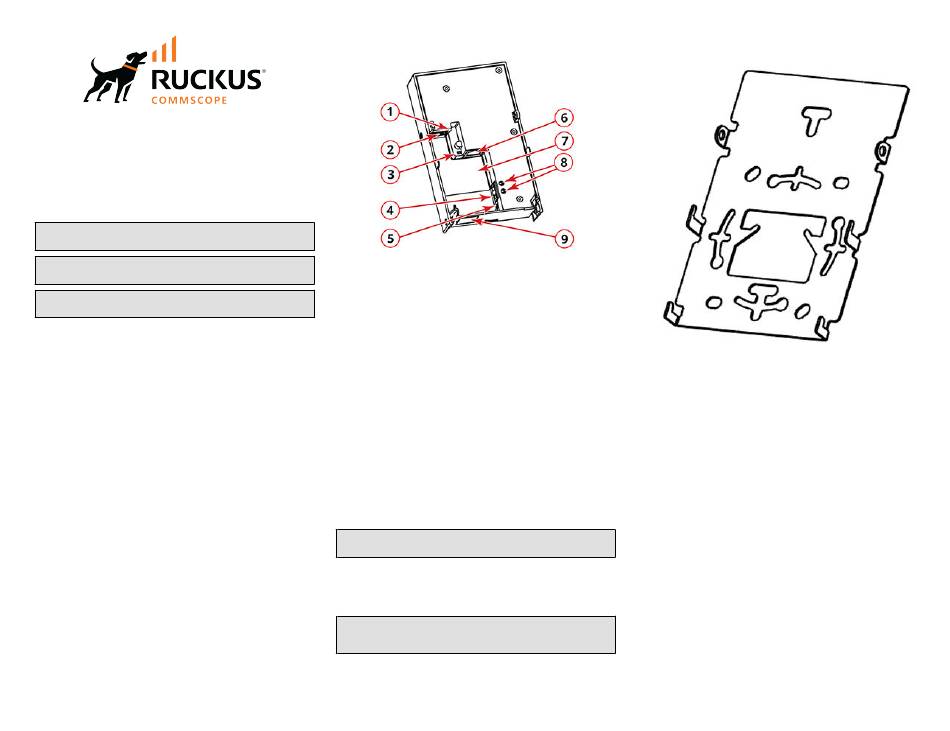

FIGURE 1 Fiber Backpack Elements
1. Signal LED
2. Fiber/SFP port
3. Power LED
4. DC Terminal block
5. 48 V DC port
Package Contents
A complete Fiber Backpack installation package includes all of the
following items:
でご覧
• Fiber Backpack for H510
• RJ45 cable, 5-inch length
• Kit (screws and clips)
– Two plastite screws torx flat-head # 4-20 x 0.375 L
https://
– Two screws torx flat-head M3 x 6mm L
https://
– Three self-adhesive wire retainer
• Regulatory Statement
• This Quick Setup Guide
Installing Fiber Backpack with the H510 Unit
http://
NOTE: The Fiber Backpack must be mounted on the mounting bracket
prior to the H510.
To install the Fiber Backpack on the H510, refer to the following steps:
Step 1: Attaching the Mounting Bracket to an Outlet
Box
NOTE: The mounting bracket has four hooks that face up. Make sure
that the hooks are facing up when attaching the mounting bracket to
the wall outlet box.
1. Use either the original wall outlet box screws or the factory-supplied
1-inch Phillips pan head machine screws to attach the mounting
bracket to a single-gang wall outlet box or to the wall.
FIGURE 2 Mounting Bracket
6. Ethernet PoE outlet port
7. Cutout for cable passthrough
from junction box
8. Access holes for Terminal block
screws
9. Punch-out tab
2. Pull the fiber cable and the power cable through the punchout tab
opening in the bottom of the Fiber Backpack or through the hole in
the center of the mounting bracket and Fiber Backpack.
If the fiber cable and the power cable are from the outlet box, need
not pull the cable through the punchout tab opening.
Page 1 of 3
