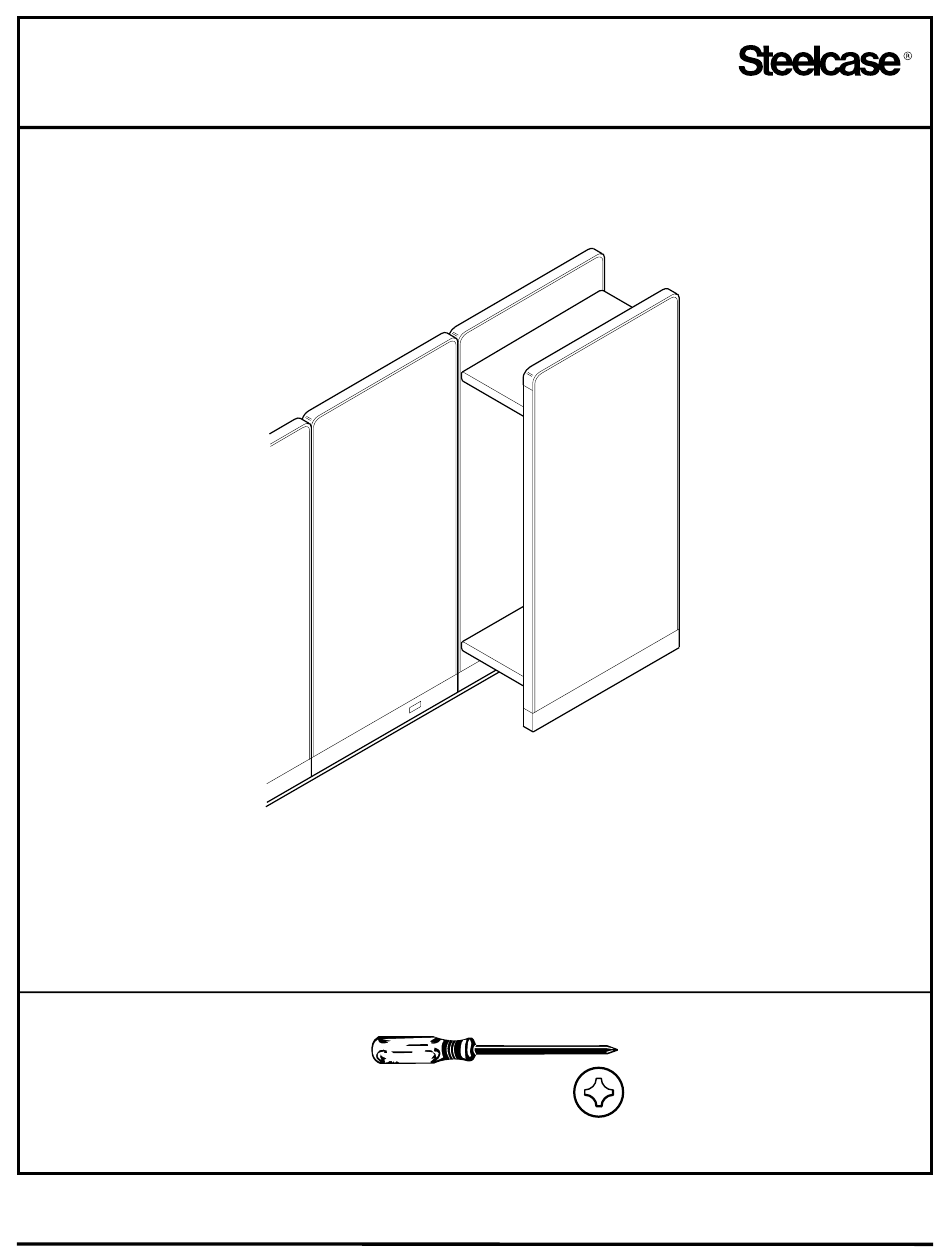

Assembling And Installing A Wardrobe Valet
NOTE: Shown on pages 2 thru 5 is a wardrobe valet being assembled and mounted onto a 25" wide structural panel
assembly. This procedure is typical when mounting the wardrobe valet on all structural panel assemblies 25" or wider
except where noted. The assembly procedures shown on pages 6 and 7 pertain only to mounting a wardrobe valet
onto structural panel assemblies 30" or wider.
Tools
Component Style Number 98551
Printed In U.S.A.
REV
93-9500904 A
Page 1 of 7
