Secant
Use care during the staging and installation to
prevent damage to finished surfaces.

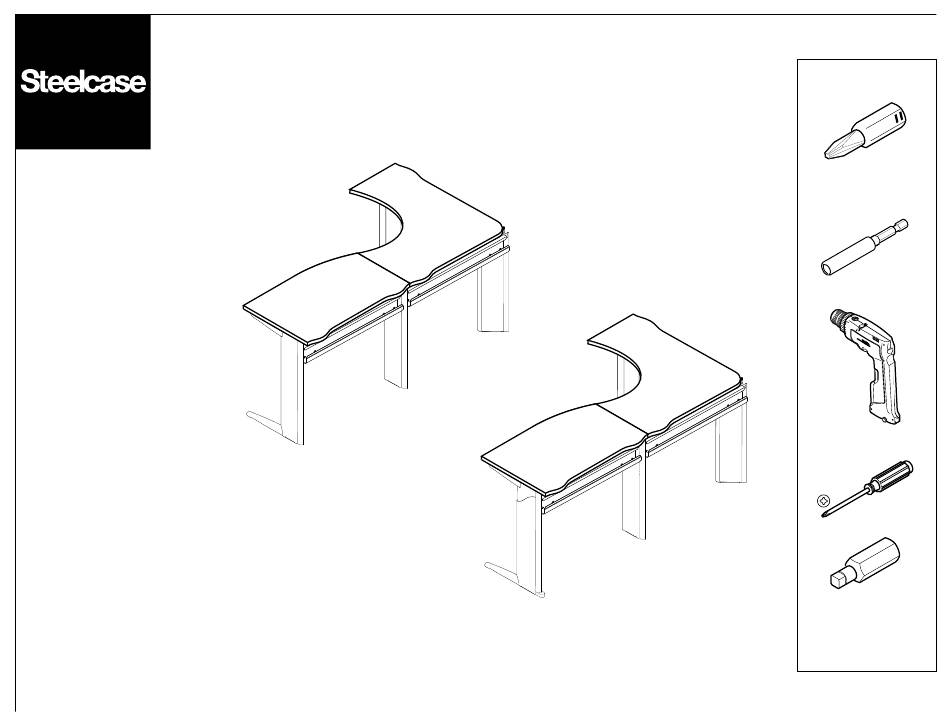

Freestanding Worksurface Support
ACR II #3 Bit
#3 Square Drive Bit
Page 1 of 22
939504557 Rev T
Advertisement
Related Manuals for Steelcase Secant
Summary of Contents for Steelcase Secant
- Page 1 Freestanding Worksurface Support ® ACR II #3 Bit If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. #3 Square Drive Bit (Outside the U.S.A., Canada, Mexico, Puerto Rico,...
- Page 2 Front worksurface screw location. For an end-of-run application, attach each bracket to support with two (2) screws in opposing holes. End Panel Support NOTE: Change glides to C-Leg Support opposite end to change from one hand to the other on end panel. For a shared application, attach each bracket to support with two (2) screws using in-line holes.
- Page 3 Attach one end of the stretcher to one completed support assembly with four (4) screws, then attach opposite end of stretcher to adjacent support assembly. When the intermediate support is used in the center position of a single worksurface, bend the tabs of the intermediate support bracket so that they are flush with Surface A.
- Page 4 Attach appropriate plates to intermediate and c-leg supports with two (2) screws. Page 4 of 22 939504557 Rev T...
- Page 5 Align worksurface to support structure fitting over projections and attach, using screws as shown. NOTE: Adjust support side to side position to minimize worksurface mismatch. Page 5 of 22 939504557 Rev T...
- Page 6 Peel backing off double-sided tape to expose sticky surface, then press wire manager onto back side of support. This is typical for all supports. C-Leg Support Wire Manager Page 6 of 22 939504557 Rev T...
- Page 7 Conference Link and Conference Wing Assembly For an end-of-run application, attach each bracket to support with two (2) screws in opposing holes. For a shared application, attach each bracket to support with Corner Support two (2) screws using in-line holes. Intermediate Support Page 7 of 22 939504557 Rev T...
- Page 8 Conference Link and Conference Wing Assembly Attach one end of the stretcher to one completed support assembly with four (4) screws, then attach opposite end of stretcher to adjacent support assembly. Attach post to conference link or NOTE: conference wing using (4) screws. Adjust support side to side position to minimize work surface mismatch.
- Page 9 Conference Link and Conference Wing Assembly Attach mounting plate to support. Attach top with post to brackets. Attach wire manager as shown in step 6 on page 6. NOTE: Adjust support side to side position to minimize work surface mismatch. Page 9 of 22 939504557 Rev T...
-
Page 10: End Cap Assembly
End Cap Assembly For end cap installation, attach each bracket to support with two (2) screws using in-line holes. Attach stretcher to support assembly with four (4) screws. Install the mounting plate to support using C-Leg Support three (3) 1/4-20 flat head cross-recessed machine screws. - Page 11 Attach end cap and adjoining worksurface to mounting plate using three (3) #12 x 1" long flat head wood screws in each surface. Attach worksurface straps at front and rear of worksurface using one (1) #8 x 7/8" long flat head wood screw in each surface. Worksurface attachment holes Install these (2) screws after front edges of worksurfaces are aligned.
- Page 12 ® Secant Adjustable Height Worksurface Support For maintenance adjustable C-Leg supports only! a) Install glide assembly. b) Snap plastic cover over glide assembly. C-Leg Support For end-of-run applications, attach each bracket to support with four (4) screws. For shared applications, attach each bracket to support with two (2) screws.
- Page 13 Attach one end of stretcher to one completed support assembly with four (4) screws, then attach opposite end of stretcher to adjacent support assembly. Continue until the entire support structure is complete. The nominal length of the Corner Stretcher is 6" shorter than the nominal length of the Corner Worksurface.
- Page 14 Attach mounting plate to supports with three (3) 1/4-20 flat head cross-recessed machine screws. Page 14 of 22 939504557 Rev T...
- Page 15 Attach mounting plate to supports with three (3) 1/4-20 flat head cross-recessed machine screws. Use (4) screws on the mounting plate for C-Leg end support. Install these (2) screws after front edge of worksurfaces are aligned. Page 15 of 22 939504557 Rev T...
- Page 16 Peel backing off double-sided tape to expose sticky surface, then press wire manager onto back side of support. This is typical for all supports. C-Leg Support Wire Manager Page 16 of 22 939504557 Rev T...
- Page 17 Conference Link and Conference Wing Assembly For each end-of run application attach each bracket to support with four (4) screws. For a shared application, attach each C-Leg Support bracket to support with two (2) screws. Intermediate Support Page 17 of 22 939504557 Rev T...
- Page 18 Conference Link and Conference Wing Assembly Attach one end of the stretcher to one completed support assembly with four (4) screws, then attach opposite end of stretcher to adjacent support assembly. Attach post to conference link or conference wing using (4) screws. Conference link Conference wing Page 18 of 22...
- Page 19 Conference Link and Conference Wing Assembly Attach mounting plate to support. Attach top with post to brackets. Attach wire manager as shown in step 6 on page 6. Page 19 of 22 939504557 Rev T...
- Page 20 Spanner worksurface Connect supports with brackets. Attach mounting plates to supports. Align spanner worksurface to mounting plates and attach using three (3) #12 x 1" long flat head screws as shown. Page 20 of 22 939504557 Rev T...
- Page 21 Adjustable worksurface Attach the adjustable worksurface mechanism to the table top. Attach the adjustable worksurface to the supports. Page 21 of 22 939504557 Rev T...
- Page 22 Space table 1/2" from wall. 1/2" 1/2" Page 22 of 22 939504557 Rev T...
