■ chapter 1 getting to know the basics

6. Battery Pack

The battery pack is a built-in power source for the notebook.
7. Power Jack (DC-in)
The DC-out jack of the AC Adapter connects here and powers the computer.
8. External VGA Port
The VGA video output port is for connecting the external LCD monitor or projector.

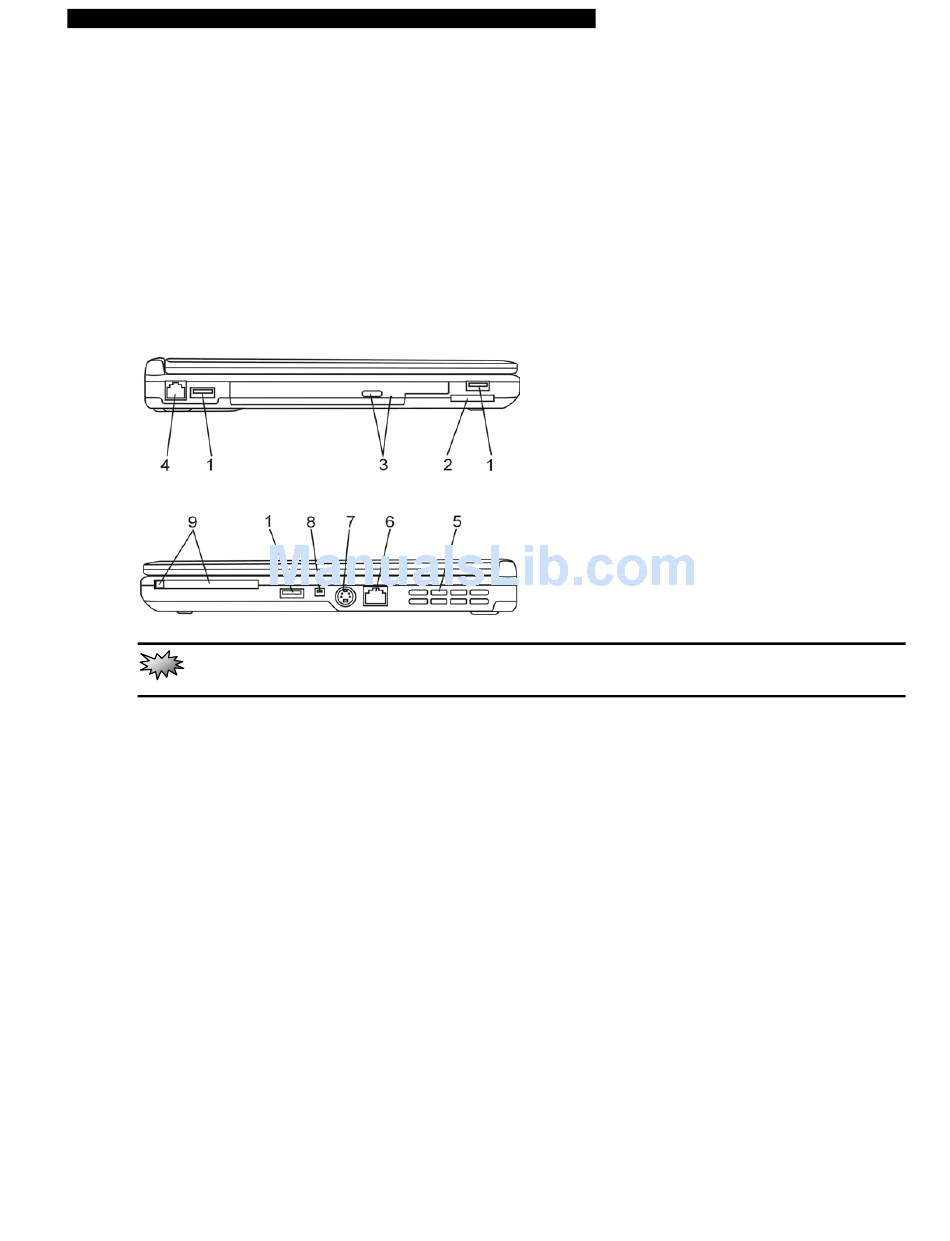

Side Views
Warning:
Do not place any heavy objects on the top of notebook. This may damage the display
1. USB 2.0 Port (x3)
The Universal Serial Bus (USB2.0-compliant) port allows you to connect a wide variety of devices to your
computer at a rate of up to 480 Mbps. This port conforms to the latest USB2.0 plug-and-play standards.
2. 4-in-1 Card Reader
The 4-in-1 Card Reader supports SD Card, MMC Card, MS and MS Pro Card.
3. Optical Drive and Disk Eject Button and Manual Eject Key Hole
If your computer comes with the Combo drive, DVD-RW, DVD+RW, or DVD-Dual drive, you may save data
onto a CD-R, CD-RW,,DVD+/-R and DVD+/-RW disc. Press the eject button to eject the disk tray. The
manual eject keyhole allows you to manually eject a jammed disk.

4. Modem Port

This is where you plug the phone jack (RJ-11) for fax/modem functions.

5. Ventilation Grill

The fan grill is where air is exchanged to dissipate the internal heat. Do not block this airway completely.
6. Ethernet / LAN Port
1-5
